24-08C SINGLE AXLE BRAKE SERVICE KITS

With our single axle brake service kits we offer you the correct brake parts to service the front or rear axle of your vehicle. These kits include two brake drums, one set of four brake shoes and all of the brake shoe return springs and shoe hold down hardware when required. These kits do not include wheel cylinders, adjusting eccentrics, wheel hub seals or flexible brake hoses due to variations in front or rear and left or right side parts as required. All of these parts are shown in Group 24 Brake and in Subgroup 25-02 wheel hubs and Brake Drums.


Generally no special tools are required for this installation other than a correct wheel hub puller for the rear axle hubs and a hydraulic press to remove and install the new wheel studs. If you don't have standard brake service tools available, we have them. Go to Group 33 Essential Tools for front drive flange pullers, front spindle nut sockets and rear hub pullers. Go to Subgroup 24-03C-4 Brake Service Tools for brake spring pliers, brake spring hooks, brake anchor pin adjusting tools and brake bleeder wrenches.

A-427-K SINGLE AXLE BRAKE SERVICE KIT FOR THE MB/GPW/CJ-2A/CJ-3A

This kit includes two new correct brake drums, one set of 9” x 1 ” brake shoes, two brake shoe return springs, five left hand and five right hand wheel studs and five left hand and five right hand 3/4" wheel nuts.


A-427-K $ 216.50
808769-K SINGLE AXLE BRAKE SERVICE KIT FOR THE M38

This kit includes two new correct brake drums, one set of 9” x 1 ” brake shoes, two brake shoe return springs, six wheel hub to drum screws, five left hand and five right hand wheel studs and five left hand and five right hand 3/4" wheel nuts.

808769-K $ 187.50
808770-K SINGLE AXLE BRAKE SERVICE KIT FOR THE CJ-3B, M38A1 AND THE CJ-5/6 WITH
THE F-4-134 ENGINE

This kit includes two new correct brake drums, one set of 9” x 1 ” brake shoes, two upper brake shoe return springs, two lower brake shoe return springs, two brake shoe hold down kits, six wheel hub to drum screws, five left hand and five right hand wheel studs and five left hand and five right hand 13/16" wheel nuts.


808770-K $ 211.50

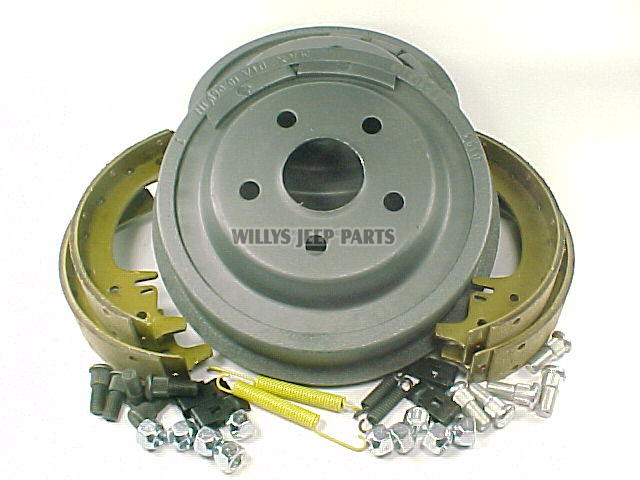

641745-K SINGLE AXLE BRAKE SERVICE KIT FOR THE TWO WHEEL DRIVE VJ/SW/SD

This kit includes two new correct brake drums, one set of 10” x 1 ” brake shoes, two upper brake shoe return springs, two lower brake shoe return springs four brake shoe hold down springs, five left hand and five right hand wheel studs and five left hand and five right hand 13/16" wheel nuts.


641745-K $ 207.50
941877-K SINGLE AXLE BRAKE SERVICE KIT FOR THE FC-150/FC-170 AND THE FOUR-WHEEL
DRIVE SW/SD/PU

This kit includes two new correct brake drums, one set of 11" x 2” brake shoes, two upper brake shoe return springs, two lower brake shoe return springs, four brake shoe hold down springs, five left hand and five right hand wheel studs and five left hand and five right hand 13/16" wheel nuts.


941877-K $ 197.50

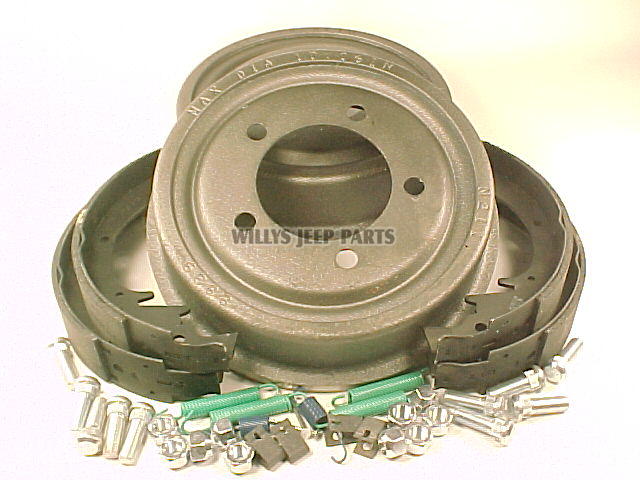

914306-K SINGLE AXLE BRAKE SERVICE KIT FOR THE LATE CJ-5/CJ-6 WITH THE
V6-225 ENGINE

This kit includes two new correct brake drums, one set of 10” x 2” brake shoes, four brake shoe return springs, two brake shoe adjuster springs, four shoe guide pins, four guide pin clips, ten right hand wheel bolts and ten right hand 13/16" wheel nuts.


994306-K $ 177.50
