24-08A  11" BRAKE UPGRADE KITS
941877-UGK COMPLETE 11" BRAKE UPGRADE KIT...........................................$ 1100.50

This is our always popular eleven inch brake upgrade kit that can be installed on any Willys Jeep four wheel drive vehicle. This kit is an absolute requirement on vehicles that have been re-powered or has larger than stock tires and wheels installed.

11"  BRAKE ASSEMBLY


Our 11"x 2" brake upgrade kit offers 1  1/8" diameter front wheel cylinders and 1" diameter rear wheel cylinders are opposed to the 1" diameter front wheel cylinders and the 3/4" rear wheel cylinders standard on all of the 1/4-ton Jeep vehicles.

This is a complete ready to bolt on kit that includes four 11" brake backing plates with new grade 8 attaching hardware, four new 11” brake drums, two sets of 11”x 2” brake shoes, four brake wheel cylinders with grade 8 attaching hardware, four upper brake shoe return springs, four lower brake shoe return springs, eight brake shoe retaining clips, eight brake shoe adjusting eccentrics, two front brake hoses with clips and gaskets, two front wheel hub seals, four front hub gaskets, two rear wheel hub seals, two rear hub gaskets, twenty hub studs and twenty wheel nuts. Detailed installation and service instructions are incuded with this kit

The contents of this kit is entirely comprised of Willys OEM and replacement parts that we always have on hand unlike other so called “brake upgrade kits” on the market.

Generally, no special tools are required for this installation other than a correct wheel hub puller for the rear axle hubs and a hydraulic press to remove and install the wheel studs. If you  don't have standard brake service tools available, we have them. Go to Group 33 Essential Tools for front drive flange pullers, front spindle nut sockets and rear hub pullers. Go to Subgroup 24-03C-4 Brake Service Tools for brake spring pliers, brake spring hooks, brake anchor pin adjusting tools and brake bleeder wrenches.

FRONT BRAKE ASSEMBLY

REAR BRAKE ASSEMBLY


FRONT BACKING PLATES & HARDWARE

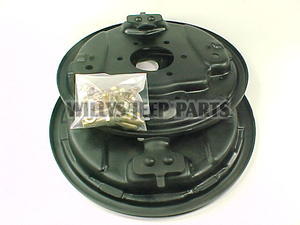

REAR BACKING PLATES & HARDWARE

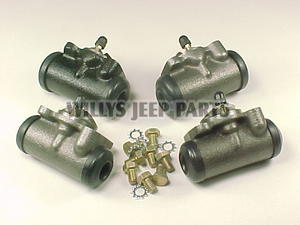

WHEEL CYLINDERS FRONT & REAR

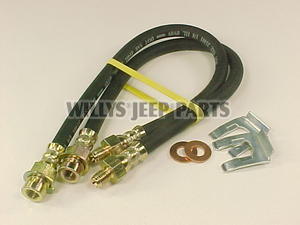

FRONT BRAKE HOSES, GASKETS & CLIPS

 BRAKE SHOE ADJUSTING ECCENTRICS
FRONT AND REAR

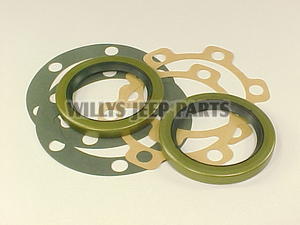

FRONT HUB SEALS AND GASKETS

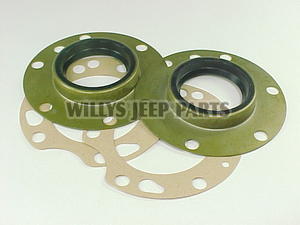

REAR HUB SEALS AND GASKETS




917206/7-K  11" FRONT  BRAKE UPGRADE KIT .......................................................... $ 567.50


This kit is an alternative for those who don't want our complete 11" brake upgrade kit but would still like increased stopping power. This is an 11" system for the front brakes. This kit can be installed on the civilian CJ-2A/3A/3B/5 and 6 and the military Jeeps to include the MB/GPW/M38/M38A1 and the M170 Ambulance.

11"  BRAKE ASSEMBLY


This is a complete ready to bolt-on kit that includes two 11" front brake backing plates with new grade 8 attaching hardware, two new 11” brake drums, one set of 11”x 2” brake shoes, two new 1 1/8" brake wheel cylinders with grade 8 attaching hardware, two upper brake shoe return springs, two lower brake shoe return springs, four brake shoe retaining clips, four brake shoe adjusting eccentrics, two front hub seals, four front hub gaskets, two front brake hoses, two brake hose gaskets, two brake hose clips, ten hub studs and ten wheel nuts. Detailed installation and service instructions are included with this kit.

The contents of this kit is entirely comprised of Willys OEM and replacement parts that we always have on hand unlike other so called “brake upgrade kits” on the market.

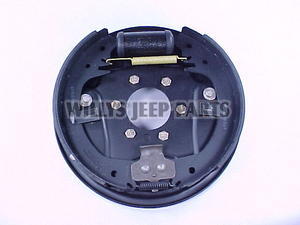

FRONT BRAKE ASSEMBLY

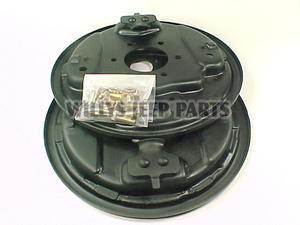

FRONT BACKING PLATES & HARDWARE

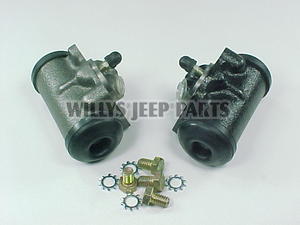

FRONT WHEEL CYLINDERS
FRONT BRAKE HOSES, GASKETS & CLIPS

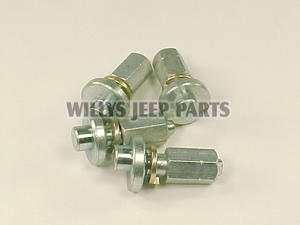

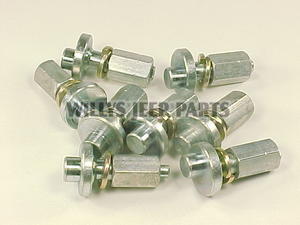

FRONT BRAKE SHOE ADJUSTING
ECCENTRICS
FRONT HUB SEALS AND GASKETS



918498/9-K  11" REAR  BRAKE UPGRADE KIT.............................................................. $ 525.50

This kit is the finishing touch after installing a disc brake upgrade kit on the front of your 1/4-ton Jeep vehicle. This is an 11" system for the rear brakes. This kit can be installed on the civilian CJ-2A/3A/3B/5 and 6 and the military Jeeps to include the MB/GPW/M38/M38A1 and the M170 Ambulance.


11"  BRAKE ASSEMBLY


This is a complete ready to bolt-on kit that includes two 11" rear brake backing plates with new grade 8 attaching hardware, two new 11” brake drums, one set of 11”x 2” brake shoes, two new 1" brake wheel cylinders with grade 8 attaching hardware, two upper brake shoe return springs, two lower brake shoe return springs, four brake shoe retaining clips, four brake shoe adjusting eccentrics, two rear hub seals, two rear hub seal gaskets, ten hub studs and ten wheel nuts. Detailed installation and service instructions are included with this kit.

The contents of this kit is entirely comprised of Willys OEM and replacement parts that we always have on hand unlike other so called “brake upgrade kits” on the market.


REAR BRAKE ASSEMBLY
REAR BACKING PLATES & HARDWARE

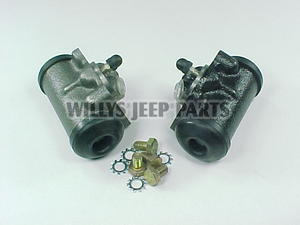

REAR WHEEL CYLINDERS

REAR BRAKE SHOE ADJUSTING
ECCENTRICS

REAR HUB SEALS AND GASKETS

*NOTE:
WHEN INSTALLING THIS KIT ON THE MB OR GPW DIFFERENT REAR HUB SEALS AND GASKETS ARE REQUIRED, PLEASE INDICATE YOUR VEHICLE MODEL.
