15-21  BLACKOUT LIGHTS

All Willys military vehicles came equipped with blackout lights to include a front blackout driving light, front blackout marker lights and rear blackout stop and tail lights.

The blackout driving light mounted on the left front fender is a hooded light having a sealed beam unit that throws a horizontal diffused low-intensity light beam to illuminate any vertical object. This light is used when the tactical situation does not permit use of service headlights.

The blackout marker lights are mounted in either side of the radiator grille below the headlights.  They show a diffused, low intensity beam when on.

The tail lights incorporate blackout tail lamps in the lower portion of each tail light and a blackout stop lamp in the upper portion of the right hand unit.


NOTE- THE INTERIOR MINITAURE BULBS ON ALL OF THESE UNITS OTHER THAN THE EARLY BLACKOUT DRIVING LAMPS ARE INTERCHANGEABLE WITH 6 VOLT, 12 VOLT OR 24 VOLT BULBS.

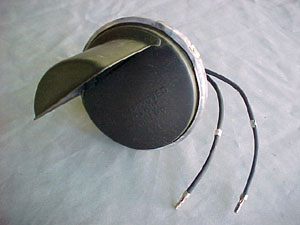

15-21A  LEFT FRONT FENDER BLACKOUT DRIVING LIGHTS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-6143-K



BLACKOUT DRIVING LIGHT HOUSING ASSY, INCLUDES THE HOUSING,  DOOR AND MOUNTING RING.



 MB/GPW $ 92.50

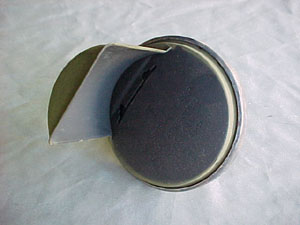

NOS A-6144  NOS



DOOR, BLACKOUT DRIVING LIGHT ASSY., SINGLE MOUNT SCREW TYPE.

 MB/GPW $ 45.00
NOS A-6783   NOS



RING, MOUNTING, BLACKOUT DRIVING LIGHT ASSY., WITH RETAINING CLIPS.

 MB/GPW $ 45.00
NOS 118460  NOS



DOOR BLACKOUT DRIVING LIGHT ASSY., THREE MOUNT SCREW TYPE.

M38/M38A1 M151/M715
$ 45.00

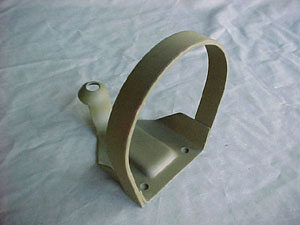

RPL A-4118
800390



 GUARD, BLACKOUT DRIVING LIGHT.



 MB/GPW/M38
 M38A1/M170/M151
 M715
$ 59.50
NOS A-6145-1 NOS



LAMP-UNIT, 6 VOLT, FORD BRAND.

 MB/GPW $ 98.50
NOS A-6145-2 NOS



 LAMP-UNIT, 6 VOLT, HARLEY-
 DAVIDSON BRAND

 MB/GPW $ 98.50
NOS A-6145-3 NOS



 LAMP-UNIT, 6 VOLT, CORCORAN-
 BROWN BRAND.

 MB/GPW $ 98.50
OEM 11668932



LAMP AND HOUSING ASSY.,6 VOLT, 12 VOLT OR 24 VOLT, MS51318-1, STATE VOLTAGE REQUIRED WHEN ORDERING THIS UNIT.





ALL VEHICLES

 $ 86.50

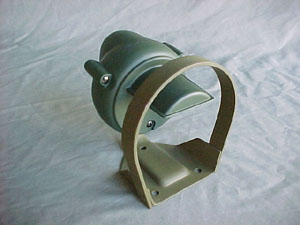

OEM  11668932-K



LAMP AND GUARD ASSY., COMPLETE, 6 VOLT, 12 VOLT OR 24 VOLT, INCLUDES MOUNTING HARDWARE.





ALL VEHICLES

 $ 144.50


  A-6143-K

$ 92.50

    A-46144-NOS

$ 45.00




  A-6783-NOS

$ 45.00

    118460-NOS

$ 45.00



A-4118/800390 $ 59.50
A-6145 $ 98.50

11668932 $ 86.50
1168932-K $ 144.50


15-21B  FRONT BLACKOUT MARKER LIGHTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-1436



 LIGHT, BLACKOUT MARKER, LEFT, ASSY., WITH 15" CLOTH INSULATED WIRE LEAD.



 MB/GPW $ 65.50
RPL A-1437



LIGHT, BLACKOUT MARKER, RIGHT, ASSY., WITH 47" CLOTH INSULATED WIRE LEAD.



 MB/GPW $ 65.50
OEM 649692 8741644 7723899



 FRONT BLACKOUT MARKER LIGHT, WATERPROOF, MS51303-2.

 M38/M38A1/M422 $ 48.50
OEM 7762614
8376368



FRONT BLACKOUT MARKER, DIRECTIONAL AND PARKING LIGHT, WATERPROOF, MS512126

 M715/M725/M726
 M37
$ 58.50
OEM 11614156



 FRONT COMPOSITE LIGHT ASSEMBLY, WATERPROOF, MS52126.

 M151/ALL CURRENT
 MILITARY VEHICLES
$ 68.50
OEM 11639546



LENS ASSEMBLY, FRONT COMPOSITE LIGHT, INCLUDES SCREWS AND O-RING, WATERPROOF.

 M151/ALL CURRENT
 MILITARY VEHICLES
$ 22.50
NOS 4901-41M



FRONT BLACKOUT MARKER LIGHT WITH 2 1/2" CLOTH INSULATED WIRE LEAD, MOUNTS ON HEADLIGHT HOUSING.

  WWII MOTORCYCLES $ 175.00


  A-1436

$ 65.50

    A-1437

$ 65.50




  649692/7723899

$ 48.50

    7762614/8376368

$ 58.50



11614156 $ 68.50
11639546 $ 22.50


4901-41M

$ 175.00


15-21C BLACKOUT STOP LIGHTS

PREFIX PART NO. DESCRIPTION APPLICATION  PRICE
OEM 649492 8741644 7723899



BLACKOUT STOPLIGHT ASSY., WATERPROOF, MS51303-2

M151/M715 M606A2/A3  M100 TRAILER
$ 48.50


649692/7723899 $ 48.50



CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.



PLEASE REFER TO SUB-GROUP 15-08C FOR THE CORRECT WATERPROOF WIRE CONNECTORS.
