15-08C MILITARY WATERPROOF WIRE CONNECTORS AND PARTS


Why pay $800.00 or more for a complete new military type waterproof wiring harness when you  can build or repair it yourself?

We sell every waterproof wire connector to include the early Douglas type and the later Packard type.


NOTE-
THE WATERPROOF CONNECTORS CAN BE USED ON YOUR CIVILAIN JEEP TOO!

15-08C-1  EARLY "DOUGLAS" TYPE MILITARY WATERPROOF CONNECTORS WITH METAL
                 SHELLS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 7760598



FEMALE DOUGLAS TYPE WATERPROOF CONNECTOR KIT, 14 GA.

 M38/M38A1 AND EARLY M-SERIES VEHICLES
$ 3.45
OEM 7760599



MALE DOUGLAS TYPE WATERPROOF CONNECTOR KIT, 14 GA.

 M38/M38A1 AND EARLY M-SERIES VEHICLES
$ 6.50
OEM 7762608



FEMALE DOUGLAS TYPE WATERPROOF CONNECTOR KIT, 16 GA.

 M38/M38A1 AND EARLY M-SERIES VEHICLES
$ 6.50
OEM 7762609



MALE DOUGLAS TYPE WATERPROOF CONNECTOR KIT, 16 GA.

 M38/M38A1 AND EARLY M-SERIES VEHICLES
$ 6.50
OEM 573005



GROMMET, WATERPROOF CABLE CONNECTOR, USED IN FEMALE AND MALE KITS.

 M38/M38A1 AND EARLY M-SERIES VEHICLES
$ 1.75 EA.
OEM 572999



BUSHING, GROMMET, ADAPTING, WATERPROOF CABLE, USED IN FEMALE AND MALE KITS.

 M38/M38A1 AND EARLY M-SERIES VEHICLES $ 0.45 EA.
OEM 573007



SHELL, FEMALE CONNECTOR, SINGLE WIRE, MATES WITH SHELL, 573010.

 M38/M38A1 AND EARLY M-SERIES VEHICLES $ 2.75 EA.
OEM 573010



SHELL, MALE CONNECTOR SINGLE WIRE, MATES WITH SHELL, 573007.

 M38/M38A1 AND EARLY M-SERIES VEHICLES $ 1.85 EA.
OEM 573000



CONNECTOR, WATERPROOF CABLE, FOR MALE KIT.

 M38/M38A1 AND EARLY M-SERIES VEHICLES
$ 3.25 EA.
OEM 572929



TERMINAL, TIP, BULLET TYPE, FOR FEMALE AND MALE KITS, 14 GA.

 M38/M38A1 AND EARLY M-SERIES VEHICLES $ 0.75 EA.

TYPICAL FEMALE KIT
$ 3.45
TYPICAL MALE KIT
$ 6.50

573005 $ 1.75 EA.
572999 $ 0.45 EA.

573007 $ 2.75 EA.
573010 $ 1.85 EA.

573000

$ 3.25 EA.

572929 $ 0.75 EA.

15-08C-2  LATE  "PACKARD" TYPE MILITARY STANDARD ( MS ) WATERPROOF WIRE
                  CONNECTORS WITH RUBBER SHELLS


PACKARD SINGLE WIRE TYPE WATERPROOF CONNECTORS


PACKARD Y" TYPE WATERPROOF CONNECTORS


PACKARD PANEL TYPE WATERPROOF CONNECTORS


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM MS27142-1



 FEMALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 12 AWG.

 ALL M-SERIES VEHICLES $ 2.75 EA.
OEM MS27142-2



 FEMALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 14 AWG.

 ALL M-SERIES VEHICLES
$ 1.95  EA.
OEM MS27142-3



 FEMALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 16 AWG.

 ALL M-SERIES VEHICLES
$ 2.75  EA.
OEM MS27143-1



 MALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 12AWG.

 ALL M-SERIES VEHICLES $ 2.25 EA.
OEM MS27144-1



 MALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 14 AWG.

 ALL M-SERIES VEHICLES $ 1.65 EA.
OEM MS27144-2



 MALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 16 AWG.

 ALL M-SERIES VEHICLES $ 1.65 EA.
OEM MS27144-3



 MALE PACKARD TYPE WATERPROOF CONNECTOR KIT, 14 AWG.

 ALL M-SERIES VEHICLES $ 1.65 EA.
OEM MS27145-1



  KIT, CONNECTOR, PACKARD TYPE, WATERPROOF, MALE, DOUBLE PLUG, INCLUDES THE RUBBER SHELL, NYLON SLEEVES AND TERMINALS, 14 AWG.

 ALL M-SERIES VEHICLES $ 3.50 EA.
OEM MS27147-1



  KIT, CONNECTOR, PACKARD TYPE, WATERPROOF, DOUBLE PLUG, FEMALE, "Y", ASSEMBLED WITH THREE 572929 BULLET TIP TERMINALS. THIS CONNECTOR ACCEPTS THREE MS27143-1 MALE CONNECTOR KITS.

 ALL M-SERIES VEHICLES $ 4.25 EA.
OEM 8338572



SHELL, FEMALE CONNECTOR, SINGLE WIRE, MATES WITH MALE SHELL 8338569, 12AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM 8338566



  SHELL, FEMALE CONNETOR, SINGLE WIRE, MATES WITH MALE SHELL 7982401, 14AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM 8724495



  SHELL, FEMALE CONNETOR, SINGLE WIRE, MATES WITH MALE SHELL 8724494, 16AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM 8338569



SHELL, MALE CONNECTOR, SINGLE WIRE, MATES WITH FEMALE SHELL 8338572, 12 AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM 7982401



SHELL, MALE CONNECTOR, SINGLE WIRE, MATES WITH FEMALE SHELL 8338566, 14AWG/16AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM 8724494



SHELL, MALE CONNECTOR, SINGLE WIRE, MATES WITH FEMALE SHELL 7824495, 16AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM MS27148-1



  TERMINAL, BULLET TYPE, FOR FEMALE KIT, 12 AWG.

 ALL M-SERIES VEHICLES $ 0.75 EA.
OEM MS27148-2



  TERMINAL, BULLET TYPE, FOR FEMALE KIT, 14 AWG.

 ALL M-SERIES VEHICLES $ 0.75 EA.
OEM MS27148-3



  TERMINAL, BULLET TYPE, FOR FEMALE KIT, 16AWG.

 ALL M-SERIES VEHICLES $ 0.95 EA.
OEM 8338564



  TERMINAL, CRIMP TYPE, FOR ALL MALE KITS.

 ALL M-SERIES VEHICLES $ 0.55 EA.
OEM 8338562



SLEEVE, TERMINAL, FOR USE WITH ALL MALE KITS.

 ALL M-SERIES VEHICLES $ 0.55 EA.
OEM 8338573



 WASHER, "C" TYPE, FOR USE WITH BULLET TYPE TERMINALS IN FEMALE KIT MS27142-1, 12AWG.

 ALL M-SERIES VEHICLES $ 0.65 EA.
OEM 8338567



 WASHER, "C" TYPE, FOR USE WITH BULLET TYPE TERMINALS IN FEMALE KIT MS27142-2, 14AWG.

 ALL M-SERIES VEHICLES $ 0.65 EA.
OEM 8724497



 WASHER, "C" TYPE, FOR USE WITH BULLET TYPE  TERMINALS IN FEMALE KIT MS27142-3, 16AWG.

 ALL M-SERIES VEHICLES $ 0.65 EA.
OEM 8338570



 WASHER, FOR USE WITH CRIMP TYPE TERMINAL IN MALE KIT MS27143-1, 12AWG.

 ALL M-SERIES VEHICLES $ 0.65 EA.


MS27142-2  FEMALE KIT
$ 1.95
MS27144-1 MALE KIT
$ 1.65

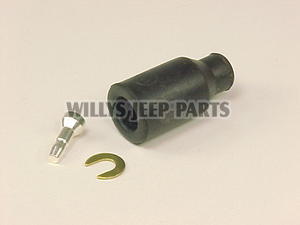

MS27142-1 FEMALE KIT
$ 2.75

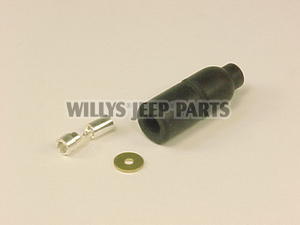

MS27143-1 MALE KIT
$ 2.25

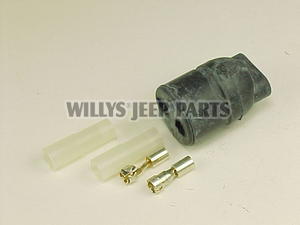

MS27145-1 DOUBLE PLUG KIT
$ 3.50
MS27147-1 FEMALE "Y" KIT
$ 4.25

TYPICAL FEMALE SHELL
$ 0.95 EA.
TYPICAL MALE SHELL
$ 0.95 EA.

TYPICAL BULLET TERMINAL
$ 0.75 EA.
8338564 CRIMP TERMINAL
$ 0.55 EA.

8338562 SLEEVE
$ 0.55 EA.

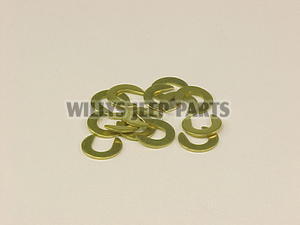

TYPICAL "C" WASHER
$ 0.65 EA.

8338570 WASHER
$ 0.65 EA.


15-08C-3  WATERPROOF WIRE CONNECTOR CLIPS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 8722870



CLIP ASSEMBLY, WIRING HARNESS
CONNECTOR FOR 3 WIRES.

 ALL M-SERIES VEHICLES NLA
OEM 8747908



 CLIP ASSEMBLY, WIRING HARNESS
CONNECTOR FOR 3 WIRES.

 ALL M-SERIES VEHICLES NLA
OEM 8747908-1



 CLIP ASSEMBLY, WIRING HARNESS
 CONNECTOR FOR 4 WIRES.

 ALL M-SERIES VEHICLES NLA


  8722870

NLA

    8747908

NLA




8747908-1 NLA


        NOTE- THESE CLIPS ARE USED TO HOLD MILITARY STANDARD (MS) WATERPROOF WIRE
                     CONNECTORS IN PLACE. THEY ARE USED ON ALL M-SERIES VEHICLES AND TRAILERS.


15-08C-4 BULK MIL SPEC TYPE 1, CLASS A CABLE

THIS IS OEM HEAVY DUTY, SINGLE CONDUCTOR WIRE USED ON ALL TYPES OF MILITARY VEHICLES TO INCLUDE TRUCKS, TRAILERS, TANKS, ETC. THE WIRE COMPOSITION HAS EXCELLENT RESISTANCE TO ABRASION, FUNGUS AND EXPOSURE TO WEATHER. IT RESISTS DETERIORATION FROM FLUIDS SUCH AS OILS, ETHYLENE GLYCOL AND SALT WATER. MADE IN THE UNITED STATED OF AMERICA.

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 7722204 M1348631-3



BULK WIRE, TYPE 1, CLASS A CABLE, 16 AWG, SPECIAL PURPOSE, ELECTRICAL, LOW TENSION, HEAVY DUTY, SINGLE CONDUCTOR WITH GLASS REINFORCING BRAID, BLACK INSULATION. SOLD BY THE FOOT.

 ALL  VEHICLES $ 1.00 FT.
OEM 7720853 M13486/1-5



BULK WIRE, TYPE 1, CLASS A CABLE, 14 AWG, SPECIAL PURPOSE, ELECTRICAL, LOW TENSION, HEAVY DUTY, SINGLE CONDUCTOR WITH GLASS REINFORCING BRAID, BLACK INSULATION. SOLD BY THE FOOT.

 ALL  VEHICLES $ 1.00 FT.
OEM 7056678 M13486/1-7



BULK WIRE, TYPE 1, CLASS A CABLE, 12 AWG, SPECIAL PURPOSE, ELECTRICAL, LOW TENSION, HEAVY DUTY, SINGLE CONDUCTOR WITH GLASS REINFORCING BRAID, BLACK INSULATION. SOLD BY THE FOOT.

 ALL  VEHICLES $ 1.25 FT.


CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
