25-03 WHEEL ATTACHING PARTS
|
|
All related wheel and hub parts are always on hand to include wheel nuts, studs, hubs, bearings, seals, gaskets, drums, axles, drive flanges, hub caps and Warn locking hubs. We stock all of the correct mounting hardware as well as the side mount and rear mount spare wheel carriers for all of the 1/4 ton vehicles and the inside wheel carrier for the Utility Wagons.
|
| 25-03A FRONT WHEEL ATTACHING PARTS |
|
|
|
|
|
PLEASE REFER TO SUB-GROUP 24-07 FOR HUBS AND DRUMS
|
|
|
|
25-03B REAR WHEEL ATTACHING PARTS
|
|
|
|
|
|
PLEASE REFER TO SUB-GROUP 24-07 FOR HUBS AND DRUMS
|
| |
| 25-03C SPARE WHEEL CARRIERS AND PARTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-2359-A |

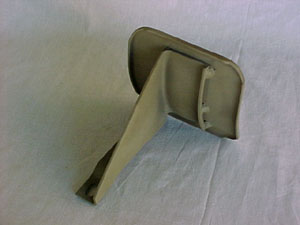

BRACKET, SUPPORT, SPARE WHEEL ASSY
EARLY 2 STUD TYPE.
|
MB/GPW |
$ 179.99 |
| RPL |
A-2359-B |

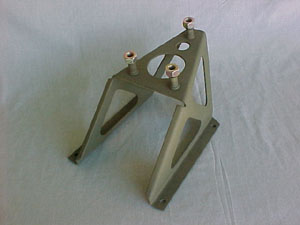

BRACKET, SUPPORT, SPARE WHEEL ASSY
LATE 3 STUD TYPE.
|
MB/GPW |
$ 179.99 |
| RPL |
A-11701 |
BRACKET, SUPPORT, SPARE TIRE ASSY
LOWER, FOR 6:00 x 16" TIRE.
|
MB/GPW |
$ 49.99 |
| RPL |
A-2359-C |

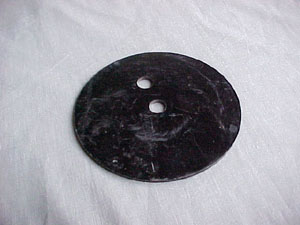

PLATE, RETAINER, SPARE WHEEL, FOR
EARLY 2 STUD TYPE BRACKET.
|
MB/GPW |
$ 39.99 |
| RPL |
663421 |

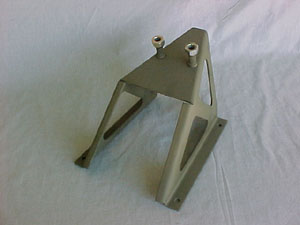

BRACKET, SUPPORT, SPARE WHEEL ASSY.
|
CJ-2A/3A/3B/5/6
DJ-3A/M38 |
$ 39.99 |
| RPL |
671158 |
VIBRATION DAMPER, FOR SIDE
MOUNTED 7:00 x 16" & 7:00 x 15" TIRE.
|
CJ-2A/3A/3B/5/6
DJ-3A |
$ 9.99 |
| RPL |
673349 |
BRACKET, SPARE WHEEL CARRIER, FOR
REAR MOUNTED SPARE WHEEL.
|
M38/M38A1 |
$ 139.99 |
| RPL |
673332 |
TAILGATE, REINFORCED, FOR USE WITH
REAR MOUNTED SPARE WHEEL.
|
CJ-2A/3A/3B/5/6
DJ-3A/M38 |
$ 249.99 |
| T/O |
664590 |
BRACKET AND SUPPORT, SPARE TIRE.
|
SW/SD |
$ 86.50 |
| RPL |
A-1306 |
REFLECTOR, ROUND HOUSING, RED LENS, FOR SPARE WHEEL CARRIER.
|
CJ-2A/3A |
$ 26.50 |
| OEM |
640008 |
REFLECTOR, OVAL HOUSING, RED LENS, FOR SPARE WHEEL CARRIER.
|
CJ-3B/5/6
DJ-3A |
$ 12.50 |
| OEM |
800995 |
REFLECTOR, OVAL HOUSING, RED LENS, FOR SPARE WHEEL CARRIER.
|
M38/M38A1/M151 |
$ 12.50 |
| RPL |
666628 |

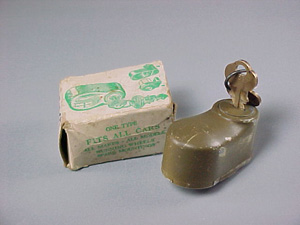

KIT, SPARE WHEEL LOCK, BLACK POWDER COAT.
|
ALL VEHICLES
|
$ 38.50 |
| RPL |
934292 |
KIT, SPARE WHEEL LOCK, CHROME.
|
ALL VEHICLES
|
$ 18.50 |
|
| |
|
|
| |
A-2359-A |
$ 179.99
|
|
|
A-2359-B |
$ 179.99
|
|
|
| |
|
|
| |
A-11701 |
$ 49.99
|
|
|
A-2359-C |
$ 39.99
|
|
|
| |
|
|
| |
663421 |
$ 39.99
|
|
|
671158 |
$ 9.99
|
|
|
| |
|
|
| 673349 |
$ 139.99
|
|
| |
|
|
| |
673332 |
$ 249.99
|
|
|
INSIDE OF REINFORCED TAILGATE |
|
|
| |
|
|
| |
664590 |
$ 86.50
|
|
|
A-1306 |
$ 26.50
|
|
|
| |
 |
| 640008 |
$ 12.50 |
|
 |
| 800995/MS35387-1 |
$ 12.50 |
|
|
| |
 |
| 666628 |
$ 38.50 |
|
 |
| 934292 |
$ 18.50 |
|
|
| |
| 25-03D WHEEL BOLTS AND NUTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
A-473 |

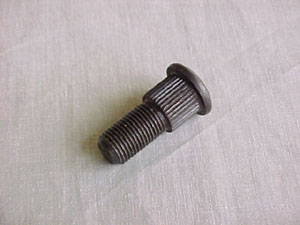

BOLT (STUD), WHEEL HUB, 1 3/8"
LONG, LEFT HAND THREAD WITH 1/2" LONG KNURL, FOR USE WITH PRESSED ON TYPE DRUMS.
|
MB/GPW/CJ-2A 3A/DJ-3A VJ/SW/SD/PU FC-150/170 |
$ 1.50 EA.
|
| OEM |
A-474 |
BOLT (STUD), WHEEL HUB, 1 3/8"
LONG, RIGHT HAND THREAD WITH 1/2" LONG KNURL, FOR USE WITH PRESSED ON TYPE DRUMS.
|
MB/GPW/CJ-2A 3A/DJ-3A VJ/SW/SD/PU FC-150/170 |
$ 1.50 EA.
|
| OEM |
649877 |
BOLT (STUD), WHEEL HUB, 1 1/2"
LONG, LEFT HAND THREAD WITH 5/16" LONG KNURL, FOR USE WITH SCREW ON TYPE DRUMS.
|
CJ-3B/5/6 M38/M38A1 |
$ 1.50 EA.
|
| OEM |
649878 |
BOLT (STUD), WHEEL HUB, 1 1/2"
LONG, RIGHT HAND THREAD WITH 5/16" LONG KNURL, FOR USE WITH SCREW ON TYPE DRUMS.
|
CJ-3B/5/6 M38/M38A1 |
$ 1.50 EA.
|
| NOS |
A-475 641952 NOS
|

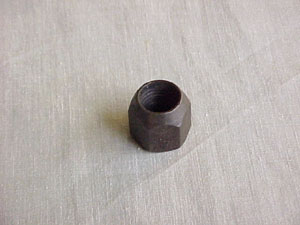

NUT, WHEEL BOLT, LEFT HAND THREAD, 1/2"-20 x 3/4".
|
MB/GPW CJ-2A/DJ-3A VJ/SW/SD/PU |
$ 2.50 EA.
|
| OEM |
A-476 641953 |

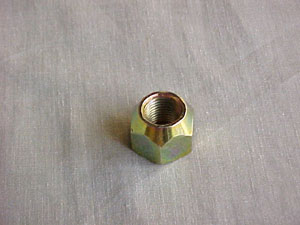

NUT, WHEEL BOLT, RIGHT HAND THREAD, 1/2"-20 x 3/4"
|
MB/GPW CJ-2A/DJ-3A VJ/SW/SD/PU |
$ 1.25 EA.
|
| OEM |
636035 |
NUT, WHEEL BOLT, L/H THREAD 1/2-20 x 13/16".
|
ALL VEHICLES |
$ 1.25 EA.
|
| OEM |
635516 |
NUT, WHEEL BOLT, R/H THREAD 1/2-20 x 13/16".
|
ALL VEHICLES |
$ 1.25 EA.
|
| RPL |
A-5470 |
BOLT, COMBAT WHEEL, 10 REQD. PER WHEEL.
|
MB/GPW/CJ-2A M38
|
$ 4.50 EA.
|
| NOS |
A-5471 NOS
|
NUT, COMBAT WHEEL, 10 REQD. PER WHEEL.
|
MB/GPW/CJ-2A M38
|
$ 4.50 EA.
|
|
| |
 |
A-473
|
$ 1.50 EA.
|
|
 |
| A-474 |
$ 1.50 EA.
|
|
|
| |
 |
| 649877 |
$ 1.50 EA. |
|
 |
| 649878 |
$ 1.50 EA.
|
|
|
| |
 |
| A-475/641952-NOS |
$ 2.50 EA.
|
|
 |
| A-476/641953 |
$ 1.25 EA.
|
|
|
| |
 |
| 636035 |
$ 1.25 EA. |
|
 |
| 635516 |
$ 1.25 EA.
|
|
|
| |
 |
| A-5471-NOS |
$ 4.50 EA. |
|
| |
|
