24-07  BRAKE DRUMS AND WHEEL HUBS

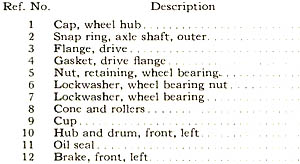

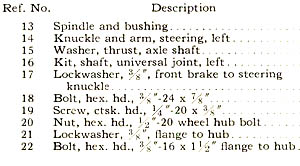

TYPICAL FOUR WHEEL DRIVE FRONT WHEEL BRAKE DRUM, WHEEL HUB AND ATTACHING PARTS

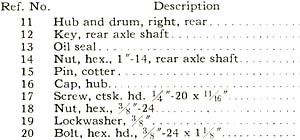

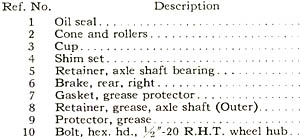

TYPICAL REAR WHEEL BRAKE DRUM , WHEEL HUB AND ATTACHING PARTS

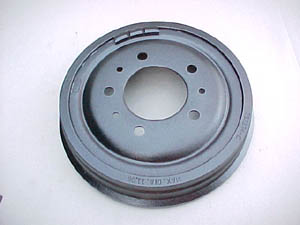

24-07A  OEM AND REPLACEMENT WHEEL BRAKE DRUMS
PREFIX PART NO. DESCRIPTION APLLICATION PRICE

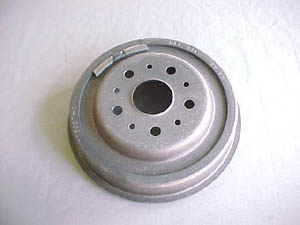

RPL A-472



 DRUM, BRAKE, 9" X 1 3/4".



 MB/GPW/CJ-2A/3A  1/4 TON MILITARY TRAILERS
$ 83.50

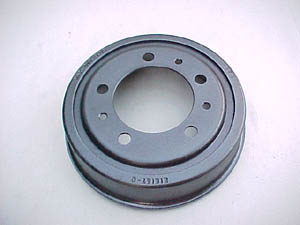

RPL 808770



 DRUM, BRAKE, 9" X 1 3/4", WITH THREE DRUM TO HUB SCREW HOLES.



 CJ-3B/5/6/M38/M38A1 $ 56.50

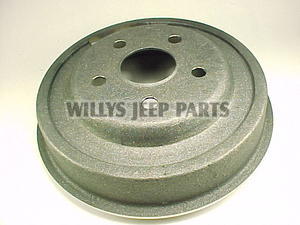

OEM 641745



 DRUM, BRAKE, 10" X 1 3/4".

2WD VJ/SW/SD $ 54.50
RPL 994306



 DRUM, BRAKE, 10" X 2".



 CJ-5/6 WITH V-6 225 ENGINE

$ 42.50

RPL 941877



 DRUM, BRAKE, 11" X 2".



 SW/SD/PU/FC-150/170 $ 42.50


  A-472

$ 83.50

    808770

$ 56.50



641745 $ 54.50
994306 $ 42.50


941877 $ 42.50



   REBUILT OEM WHEEL BRAKE DRUMS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
R/B   A-472  R/B



DRUM, BRAKE, 9" X 1 3/4", KELSEY HAYS BRAND WITH THICKNESS GAGE SLOT.

 MB/GPW/CJ-2A/3A $ 110.00
R/B GP-1125 R/B



 DRUM, BRAKE, 9" X 1 3/4", FORD BRAND, WITH THICKNESS GAGE SLOT AND SCRIPT "F" LOGO.

 MB/GPW/CJ-2A/3A $ 135.00
R/B  808770  R/B



DRUM, BRAKE, 9" X 1 3/4", KELSEY HAYS BRAND WITH THICKNESS GAGE SLOT, AND THREE DRUM TO HUB SCREW HOLES.

CJ-3B/5/6/M38/M38A1 $ 110.00
R/B  641746  R/B



DRUM, BRAKE, 10" X  1 3/4", KELSEY HAYS BRAND WITH THICKNESS GAGE SLOT.

2WD VJ/SW/SD $ 110.00
R/B  941887  R/B



DRUM, BRAKE, 11" X 2", KELSEY HAYS BRAND.

SW/SD/PU/FC-150/170 $ 100.00


A-472 R/B
$ 110.00

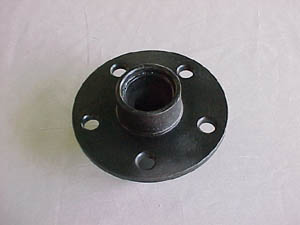

24-07B  FRONT WHEEL HUBS
PREFIX PART NO. DESCRIPTION APLLICATION PRICE

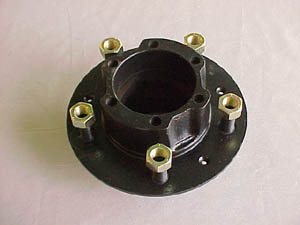

RPL 640672



WHEEL HUB, FRONT, LEFT OR RIGHT.



 ALL 4WD VEHICLES $ 62.50
RPL 649937



WHEEL HUB, FRONT, WITH LEFT HAND STUDS.



 ALL 4WD VEHICLES $ 69.50
RPL 649938



 WHEEL HUB, FRONT WITH RIGHT HAND STUDS.



 ALL 4WD VEHICLES $ 69.50
T/O 641540



 WHEEL HUB, FRONT, LEFT OR RIGHT.

 VJ/2WD SW $ 128.50
T/O 803055



 WHEEL HUB, FRONT, LEFT OR RIGHT.

DJ-3A $ CALL


  640672

$ 62.50

    649937/38

$ 69.50




641540 $ 128.50

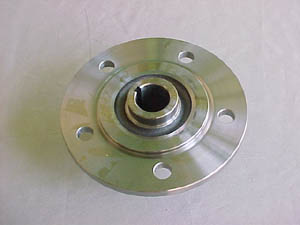

24-07C  REAR WHEEL HUBS
PREFIX PART NO. DESCRIPTION APLLICATION PRICE
RPL 640672



WHEEL HUB, REAR, LEFT OR RIGHT.



 MB/GPW/EARLY CJ-2A $ 62.50
RPL 649937



 WHEEL HUB, REAR, WITH LEFT HAND STUDS.



 MB/GPW/EARLY CJ-2A $ 69.50
RPL 649938



 WHEEL HUB, REAR, WITH RIGHT HAND STUDS



 MB/GPW/EARLY CJ-2A $ 69.50

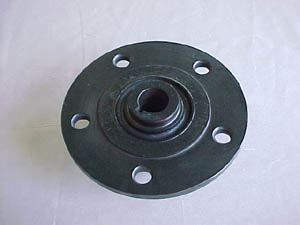

RPL 640864



 WHEEL HUB, REAR.



 CJ-2A/3A/SW/FC-150 $ 57.50
T/O 641546



 WHEEL HUB, REAR.

 VJ/2WD SW $ 72.50
T/O 803034



 WHEEL HUB, REAR.

 DJ-3A $ 72.50

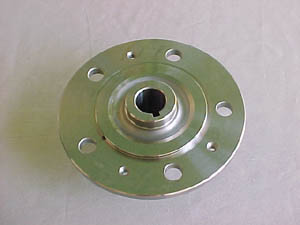

RPL 811351



WHEEL HUB, REAR.



 CJ-3B/5/6/M38/M38A1 $ 57.50
T/O 912647



 WHEEL HUB, REAR.



 PU/FC-170 $ 72.50


  640672

$ 62.50

    649937/38

$ 69.50




  640864

$ 57.50

    641546

$ 72.50




  803034

$ 72.50

    811351

$ 57.50




912647

$ 72.50


24-07D  WHEEL HUB AND BRAKE DRUM ATTACHING PARTS
PREFIX PART NO. DESCRIPTION APLLICATION PRICE

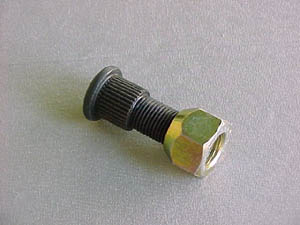

OEM A-473



 BOLT (STUD), WHEEL HUB, 1 3/8"
 LONG, LEFT HAND THREAD  WITH 1/2" LONG KNURL, FOR USE WITH PRESSED ON TYPE DRUMS.

 MB/GPW/CJ-2A 3A/DJ-3A VJ/SW/SD/PU FC-150/170 $ 1.50 EA.
OEM A-474



 BOLT (STUD), WHEEL HUB, 1 3/8"
 LONG, RIGHT HAND THREAD  WITH 1/2" LONG KNURL, FOR USE WITH PRESSED ON TYPE DRUMS.

 MB/GPW/CJ-2A 3A/DJ-3A VJ/SW/SD/PU FC-150/170 $ 1.50 EA.
OEM 649877



  BOLT (STUD), WHEEL HUB, 1 1/2"
 LONG, LEFT HAND THREAD  WITH 5/16" LONG KNURL, FOR USE WITH SCREW ON TYPE DRUMS.

 CJ-3B/5/6 M38/M38A1 $ 1.50 EA.
OEM 649878



BOLT (STUD), WHEEL HUB, 1 1/2"
 LONG, RIGHT HAND THREAD  WITH 5/16" LONG KNURL, FOR USE WITH SCREW ON TYPE DRUMS.

 CJ-3B/5/6 M38/M38A1 $ 1.50 EA.
NOS A-475 641952  NOS



 NUT, WHEEL BOLT, LEFT HAND THREAD, 1/2"-20 x 3/4".

 MB/GPW CJ-2A/DJ-3A VJ/SW/SD/PU
$ 2.50 EA.
OEM A-476 641953



 NUT, WHEEL BOLT, RIGHT HAND THREAD, 1/2"-20 x 3/4"

 MB/GPW CJ-2A/DJ-3A VJ/SW/SD/PU $ 1.25 EA.
OEM 636035



 NUT, WHEEL BOLT, LEFT HAND THREAD, 1/2"-20 x 13/16"

CJ-3A/3B/5/6 M38/M38A1 FC-150/170
$ 1.25 EA.
OEM 635516



NUT, WHEEL BOLT, RIGHT HAND THREAD, 1/2"-20 x 13/16"

CJ-3A/3B/5/6 M38/M38A1 FC-150/170 $ 1.25 EA.

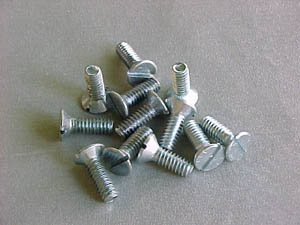

RPL 120585K



 SCREW KIT, DRUM TO HUB, 12 EA.



 CJ-3B/5/6/M38 M38A1 $ 3.50 EA.

A-473 $ 1.50 EA.
A-474 $ 1.50 EA.

649877 $ 1.50 EA.
649878 $ 1.50 EA.

A-475/61952-NOS $ 2.50 EA.
A-476/641953 $ 1.25 EA.

636035 $ 1.25 EA.
635516 $ 1.25 EA.

120585K $ 3.50

PREFIX PART NO. DESCRIPTION APLLICATION PRICE
RPL A-869 641920

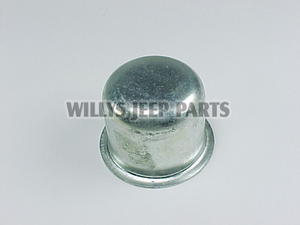

 CAP, WHEEL HUB, FRONT OR REAR.



 ALL VEHICLES $ 2.50 EA.
RPL 636374



 KEY, REAR AXLE SHAFT.



 ALL VEHICLES $ 2.50 EA.
RPL 641387



 KEY, REAR AXLE SHAFT.



 2WD SW $ 2.50 EA.
RPL 644340



 KEY, REAR AXLE SHAFT.



 4WD PU $ 2.50 EA.
RPL 803425



 KEY, REAR AXLE SHAFT.



DJ-3A $ 2.50 EA.

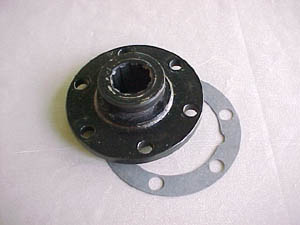

T/O A-868E

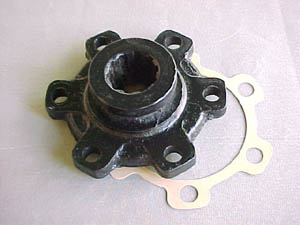

 DRIVE FLANGE, FRONT AXLE, EARLY TYPE.



 MB/GPW/CJ-2A $ 45.00 EA.
T/O A-868L



DRIVE FLANGE, FRONT AXLE, LATE TYPE.

 ALL 4WD VEHICLES $ 45.00 EA.
OEM A-904



 DRIVE FLANGE GASKET, EARLY TYPE.

 MB/GPW/CJ-2A $ 1.50 EA.
RPL 649784



 DRIVE FLANGE GASKET, LATE TYPE.



 ALL 4WD VEHICLES $ 1.50 EA.

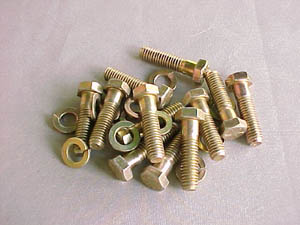

RPL A-760K-FT



 DRIVE FLANGE TO HUB BOLT KIT, INCLUDES 12  GRADE 8 BOLTS AND LOCKWASHERS.



 ALL 4WD VEHICLES $ 12.00

A-869/641920 $ 2.50

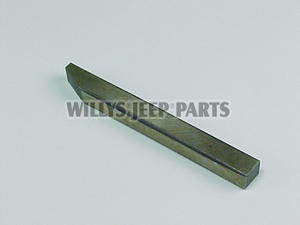

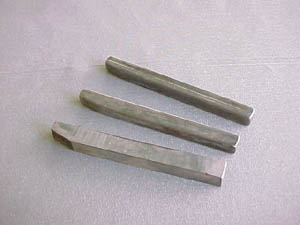

TYPICAL REAR AXLE SHAFT KEY


  A-868E

$ 45.00

    A-868L

$ 45.00



A-904 $ 1.50
649784 $ 1.50


A-760K-FT

$ 12.00


24-07E  FRONT WHEEL HUB BEARINGS AND SEALS

             FOUR WHEEL DRIVE VEHICLES



PREFIX PART NO. DESCRIPTION APLLICATION PRICE

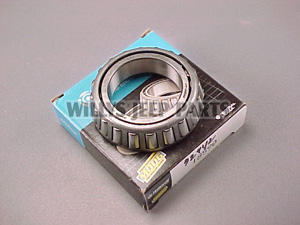

OEM 52942



 BEARING CONE, USA BRAND,
 4 REQD.

 ALL 4WD VEHICLES $ 38.50

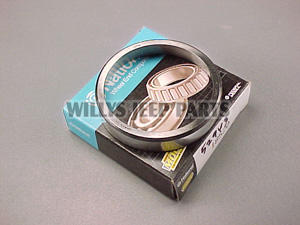

OEM 52943



 BEARING CUP, USA BRAND,
 4 REQD.

 ALL 4WD VEHICLES $ 18.50

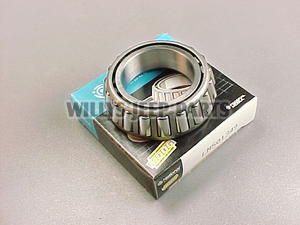

OEM 925447



 BEARING CONE, USA BRAND,
 4 REQD.

 CJ-5/6 WITH V6-225
 ENGINE
$ 28.50
OEM 925446



 BEARING CUP, USA BRAND,
 4 REQD.

 CJ-5/6 WITH V6-225
 ENGINE
$ 12.50
OEM A-864
805150



 SEAL, FRONT HUB, USA BRAND,  2 7/8" O.D., 2 REQD.

 ALL 4WD VEHICLES $ 16.50
RPL A-864-R
805150-R



 SEAL, FRONT HUB, 2 7/8" O.D.,       2 REQD.



 ALL 4WD VEHICLES $ 5.50
NOS A-864
805150
NOS



SEAL, FRONT HUB, NOS, 2 7/8" O.D., 2 REQD.

 ALL 4WD VEHICLES $ 22.50
OEM 938151



 SEAL, FRONT HUB, USA BRAND, 3" O.D. 2 REQD.

 CJ-5/6 WITH V6-225
 ENGINE
$ 14.50
RPL 938151-R



SEAL, FRONT HUB, 3" O.D., 2 REQD.



CJ-5/6 WITH V6-225
 ENGINE
$ 5.50
RPL A-865-R



 LOCK WASHER, BEARING, INNER
 2 REQD.



 ALL 4WD VEHICLES $ 1.50
RPL A-866-R



 NUT, BEARING, 4 REQD.



 ALL 4WD VEHICLES $ 1.50
RPL A-867-R



 LOCK WASHER, BEARING, OUTER
 2 REQD.



 ALL 4WD VEHICLES $ 1.50
OEM W-144



 WRENCH, SOCKET, WHEEL BEARING
 ADJUSTING FOR A-866 WHEEL
 BEARING NUT

 ALL 4WD VEHICLES $ 18.50





52942

$ 38.50





52943

$ 18.50



925447 $ 28.50
925446 $ 12.50


A-864/805150 $ 16.50
A-864/805150-R $ 5.50


A-864/805150-NOS $ 22.50
938151 $ 14.50


  938151-R

$ 5.50

    A-865

$ 1.50




  A-866

$ 1.50

    A-867

$ 1.50




W-144 $ 18.50


             TWO WHEEL DRIVE VEHICLES

PREFIX PART NO. DESCRIPTION APLLICATION PRICE
OEM 51574



BEARING CONE, INNER AND OUTER
 USA BRAND.

 VJ/2WD SW/2WD PU $ 30.50
OEM 51576



 BEARING CUP, OUTER, USA BRAND.

 VJ/2WD SW/2WD PU $ 17.95
OEM 51577



 BEARING CUP, INNER, USA BRAND.

 2WD PU $ 16.50
OEM 52573



BEARING CUP, INNER, USA BRAND.

 VJ/2WD SW $ 13.50
OEM 52574



BEARING CONE, INNER, USA BRAND.

 2WD SW $ 22.50
OEM 53428



BEARING CONE, INNER, USA BRAND.

 2WD SW/2WD PU $ 25.50
OEM 803080



BEARING CONE, INNER, USA BRAND.

 DJ-3A/FJ-3/FJ-3A $ 17.50
OEM 803081



BEARING CONE, OUTER, USA BRAND.

 DJ-3A/FJ-3/FJ-3A $ 19.50
OEM 803054



 BEARING CUP, INNER, USA BRAND.

 DJ-3A/FJ-3/FJ-3A $ 12.50
OEM 803053



BEARING CUP, OUTER, USA BRAND.

 DJ-3A/FJ-3/FJ-3A $ 16.50
OEM 630153



SEAL, FRONT HUB, USA BRAND.

 VJ/2WD SW $ 16.50
OEM 642376



 SEAL, FRONT HUB, USA BRAND.

 2WD SW/2WD PU
 WITH I-BEAM
 FRONT AXLE
$ 16.50
OEM 803651



 SEAL, FRONT HUB, USA BRAND.

 DJ-3A/FJ-3/FJ-3A $ 16.50

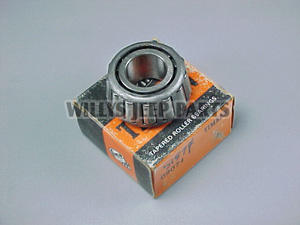

  TYPICAL FRONT HUB BEARING CONE       TYPICAL FRONT HUB BEARING CUP

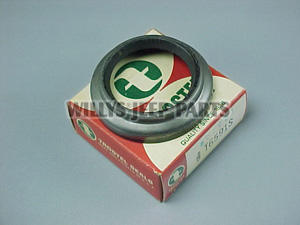

TYPICAL FRONT HUB SEAL

             M151 "MUTT" VEHICLES

PREFIX PART NO. DESCRIPTION APLLICATION PRICE
OEM 7536131



BEARING CONE, FRONT OR REAR, USA BRAND, 2 REQD., PER HUB.

M151 ALL MODELS
$ 28.50
OEM 7536132



BEARING CUP, FRONT OR REAR, USA BRAND, 2 REQD., PER HUB.

M151 ALL MODELS
$ 12.50

7536131 $ 28.50
7536132 $ 12.50


PLEASE REFER TO GROUP 21 AND GROUP 22 FOR REAR AXLE HUB
BEARINGS, SEALS AND GASKETS
