25-01 WHEELS AND ATTACHING PARTS
|
|
|
| |
|
25-01A WHEELS
| THESE ARE CRITICAL CONTROL COMPONENTS |
The loss of control of this system can result in damage to your vehicle, injury to you or your passengers or even death. It is your responsibility to pay particular attention when inspecting, servicing and maintaining the components of this system, especially when someone else has done the work for you.
|
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
640800 |
WHEEL ASSEMBLY, KELSEY HAYES WHEEL COMPANY #KH33702, 16" x 4.5", WITH A 5.5" BOLT PATTERN, A 4.25" CENTER HOLE, A 3.25" BACKSPACE AND THE SINGLE 3/16" OFFSET HOLE IN THE RAISED LUG HOLE AREA OF THE DISC THAT IDENTIFIES WHEELS WITH THE SAFETY BEADS. WITH OUR NON-RIVETED PRECISION WELDED CONSTRUCTION THESE WHEELS CAN BE USED WITH OR WITHOUT INNER TUBES. THIS WHEEL IS PROFESSIONALY PAINTED IN OEM DUPONT SEMI-GLOSS GRAY.
BUILT BY US WHEEL IN HUNTINGTON BEACH CALIFORNIA
THIS WHEEL IS A WJP EXCLUSIVE!
ATTN DEALERS- CALL FOR QUANTITY DISCOUNTS ON THESE WHEELS.
US DOT APPROVED
FOR HIGHWAY USE
WWW.USWHEEL.COM
|
ALL 4WD WILLYS AND KAISER JEEP VEHICLES
EARLY INTERNATIONAL SCOUT VEHICLES
EARLY FORD BRONCO AND TRUCKS
|
$ 175.50 |
|
| |
| |
 |

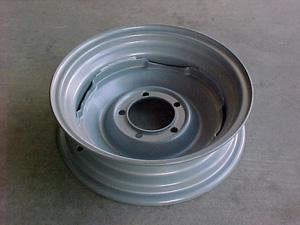

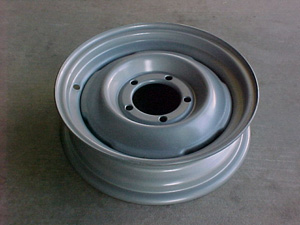

| 640800 |
OUTSIDE |
|
 |
| 640800 |
INSIDE |
|
|
|
| |
| |
 |
| 640800 |
WITH SAFETY BEADS
|
|
|
| |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
RPL
|
930407
|
WHEEL ASSEMBLY, MOTOR WHEEL COMPANY TYPE, 15" x 5.5", WITH A 5.5" BOLT PATTERN AND A 4.25" CENTER HOLE, WITH INNER AND OUTER SAFETY BEADS, WITH OUR NON-RIVETED PRECISION WELDED CONSTRUCTION THESE WHEELS CAN BE USED WITH OR WITHOUT INNER TUBES. THESE WHEELS CAN BE USED WITH A 10 3/16" INSIDE DIAMETER DOG DISH TYPE HUB CAP. THIS WHEEL IS PROFESSIONALY PAINTED IN OEM DUPONT SEMI-GLOSS SKY WHITE.
BUILT BY U.S. WHEEL IN HUNTINGTON BEACH CALIFORNIA
THIS WHEEL IS A WJP EXCLUSIVE!
ATTN DEALERS- CALL FOR QUANTITY DISCOUNTS ON THESE WHEELS
US DOT APPROVED
FOR HIGHWAY USE
WWW.USWHEEL.COM
|
ALL 4WD WILLYS AND KAISER JEEP VEHICLES
EARLY INTERNATIONAL SCOUT VEHICLES
EARLY FORD BRONCO AND TRUCKS
|
$ 158.50
|
|
| |
 |
| 930407 |
OUTSIDE |
|
 |
| 930407 |
INSIDE |
|
|
|
| |
 |
930407
|
WITH SAFETY BEADS
|
|
|
| |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| T/O |
640800-E |
WHEEL ASSEMBLY, 16" x 4.5", WITH "SOLID" DISK.
|
EARLY CJ-2A
|
$ 275.00 |
| T/O |
640800 T/O
|
WHEEL ASSEMBLY, 16" X 4.5', THESE ARE GOOD USED ORIGINAL TAKE OFF WHEELS, THEY WILL REQUIRE SAND BLASTING AND PAINTING.
|
ALL 4WD WILLYS AND KAISER JEEP VEHICLES |
$ 175.00 |
| T/O |
642705
|
WHEEL ASSEMBLY, 15" x 4", FOR USE WITH THE 8 5/16" O.D. HUB CAP.
|
2WD VJ/SW/SD
|
$ 225.00 |
| T/O |
642053 |
WHEEL ASSEMBLY, 15" x 4.5".
|
CJ-2A/3A/3B/5/6 FC-150/SW/SD
|
$ 148.50 |
| T/O |
646870 |
WHEEL ASSEMBLY, 15" x 4.5", WITH FIVE CLIPS FOR 10 3/8" HUB CAP.
|
4WD SW/SD
|
$ 275.00 |
| T/O |
930407 |
WHEEL ASSEMBLY, 15" x 5.5",CAN BE USED HUB CAP.
|
CJ-3B/5/6 SW/SD |
$ 138.50 |
| T/O |
994727 |
WHEEL ASSEMBLY, 15" x 6", CAN BE USED WITH HUB CAP.
|
CJ-5/6/PU |
$ 138.50 |
| T/O |
994733 |
WHEEL ASSEMBLY, 15" x 8", CAN BE USED WITH HUB CAP.
|
CJ-5/6 |
$ 178.50 |
| T/O |
803042 |
WHEEL ASSEMBLY, 15" x 4", WITH FOUR BOLT PATTERN.
|
DJ-3A SURREY |
$ 275.00 |
| T/O |
648914 |
WHEEL ASSEMBLY, 13" x 5.5" (SPECIAL EQUIPMENT), HAS A 5.5" BOLT PATTERN, AND A 4.25" CENTER HOLE.
|
CJ-3B/5/6 |
$ 425.00 |
|
| |
| |
| 25-01B COMBAT WHEELS AND PARTS |
|
|
| |

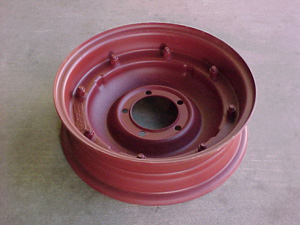

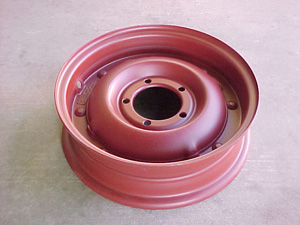

| TYPICAL COMBAT WHEEL AND PARTS |
| |
| COMBAT WHEELS AND PARTS |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| T/O |
A-5467 |
COMBAT WHEEL ASSEMBLY,
16" x 4.5", THESE ARE ORIGINAL KELSEY HAYS WHEEL COMPANY PARTS. MADE IN THE USA WITH AMERICAN QUALITY STEEL. THESE ARE THE INNER AND OUTER HALVES WITHOUT THE SPECIAL NUTS. SAND BLASTING AND PAINTING IS THE CUSTOMER RESPONSIBILITY, NEW WHEEL BOLTS ARE ALSO REQUIRED.
|
MB/GPW
V-35/U
M38
WW II TRAILERS
|
$ 375.00
|
| T/O |
A-5469 |
RIM, WHEEL DISK, OUTER HALF, THESE ARE ORIGINAL KELSEY HAYS WHEEL COMPANY PARTS. MADE IN THE USA WITH AMERICAN QUALITY STEEL.
|
ALL COMBAT WHEELS |
$ 225.00 |
| T/O |
A-5468 |
DISK, WHEEL, INNER HALF, THESE ARE ORIGINAL KELSEY HAYS WHEEL COMPANY PARTS. MADE IN THE USA WITH AMERICAN QUALITY STEEL.
|
ALL COMBAT WHEELS |
$ 150.00 |
| RPL |
A-5470-R |
BOLT, COMBAT WHEEL, 8 REQD.
PER WHEEL.
|
ALL COMBAT WHEELS |
$ 8.50 EA.
|

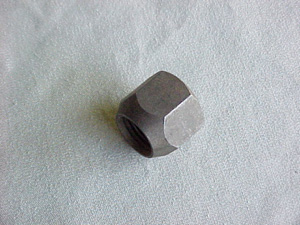

| NOS |
A-5471 NOS
|
NUT, COMBAT WHEEL, 8 REQD.
PER WHEEL, THESE ARE ORIGINAL KELSEY HAYS COMPANY PARTS. MADE IN THE USA WITH AMERICAN QUALITY STEEL.
|
ALL COMBAT WHEELS |
$ 4.50 EA.
|
| RPL |
A-5472-R |
WARNING PLATE, COMBAT
WHEEL HALF, 2 REQD. PER WHEEL.
|
ALL COMBAT WHEELS |
$ 6.00 EA.
|
|
| |
|
|
| |
A-5471-NOS |
$ 4.50 EA.
|
|
|
A-5472 |
$ 6.00 EA.
|
|
|
| |
| |
25-01C WHEEL ATTACHING PARTS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APLLICATION |
PRICE |
| OEM |
A-473 |
BOLT (STUD), WHEEL HUB, 1 3/8"
LONG, LEFT HAND THREAD WITH 1/2" LONG KNURL, FOR USE WITH PRESSED ON TYPE DRUMS.
|
MB/GPW/CJ-2A 3A/DJ-3A VJ/SW/SD/PU FC-150/170 |
$ 2.25 EA. |
| OEM |
A-474 |
BOLT (STUD), WHEEL HUB, 1 3/8"
LONG, RIGHT HAND THREAD WITH 1/2" LONG KNURL, FOR USE WITH PRESSED ON TYPE DRUMS.
|
MB/GPW/CJ-2A 3A/DJ-3A VJ/SW/SD/PU FC-150/170 |
$ 2.25 EA. |
| OEM |
649877 |
BOLT (STUD), WHEEL HUB, 1 1/2"
LONG, LEFT HAND THREAD WITH 5/16" LONG KNURL, FOR USE WITH SCREW ON TYPE DRUMS.
|
CJ-3B/5/6 M38/M38A1 |
NLA |
| OEM |
649878 |
BOLT (STUD), WHEEL HUB, 1 1/2"
LONG, RIGHT HAND THREAD WITH 5/16" LONG KNURL, FOR USE WITH SCREW ON TYPE DRUMS.
|
CJ-3B/5/6 M38/M38A1 |
$ 2.25 EA. |
| NOS |
A-475 641952 NOS
|
NUT, WHEEL BOLT, LEFT HAND THREAD, 1/2"-20 x 3/4".
|
MB/GPW CJ-2A/DJ-3A VJ/SW/SD/PU
|
$ 2.50 EA.
|
| OEM |
A-476 641953
|
NUT, WHEEL BOLT, RIGHT HAND THREAD, 1/2"-20 x 3/4"
|
MB/GPW CJ-2A/DJ-3A VJ/SW/SD/PU |
$ 1.25 EA.
|
| OEM |
636035 |
NUT, WHEEL BOLT, LEFT HAND THREAD, 1/2"-20 x 13/16"
|
CJ-3A/3B/5/6 M38/M38A1 FC-150/170
|
$ 1.25 EA.
|
| OEM |
635516 |
NUT, WHEEL BOLT, RIGHT HAND THREAD, 1/2"-20 x 13/16"
|
CJ-3A/3B/5/6 M38/M38A1 FC-150/170 |
$ 1.25 EA.
|
|
| |
 |
| A-473 |
$ 2.25 EA. |
|
| |
 |
| A-474 |
$ 2.25 EA. |
|
|
 |
| 649877 |
NLA
|
|
 |
| 649878 |
$ 2.25 EA. |
|
|
 |
| A-475/61952-NOS |
$ 2.50 EA. |
|
 |
| A-476/641953 |
$ 1.25 EA. |
|
|
 |
| 636035 |
$ 1.25 EA. |
|
 |
| 635516 |
$ 1.25 EA. |
|
|
| |
| CUPPED WHEEL NUT WASHER 999157-B |
| |
|
These special washers with the correct bevel go in between the wheel nut and the wheel surface. They are used to protect the finish on your painted, powder coated or alloy wheels by allowing the wheel nut to properly seat and torque against the soft satin finish stainless steel washer rather than the wheel itself therefore preventing scratching and chipping of the wheel surface. They can be used to make wheels with worn lug holes useable again.
Never use impact wrench on your wheel nuts! The correct six point socket, a little elbow grease and quality torque wrench will save your wheels and maybe your life!
|
|
|
|
| 999157-B |
$ 1.50 EA. |
|
|
|
| 999157-B WITH STUD AND NUT |
|
|
|
| |
| WHEEL STUD INSTALLATION TOOL C-320 |
| |
|
Our C-320 wheel stud installation tool can be used for installing both left and right hand threaded wheel studs on your brake drums and wheel hubs.
Press out the old studs from your wheel hubs or drum to hub combinations and clean the surfaces where the hubs will contact the drums.
Place a new stud in position on the back side of the wheel hub or drum then slide the installation tool over the threaded portion of the stud. The tapered side of the tool will face outward. Use a new left or right hand threaded wheel nut and thread it onto the new wheel stud with the tapered side of the nut seating into the tapered side of the tool.
Tighten the wheel nut against the tool to pull the new stud into place. Use a criss cross pattern when installing the other studs to insure an even installation of the remaining studs into the drum or hub. An impact wrench will speed up the installation.
This tool can be used on both 3/4" and 13/16" left or right handed wheel nuts. One left hand thread and one right hand thread wheel nut are included with the tool.
|
|
| |
 |
| C-320 |
$ 34.50 |
|
|
|
| |
| |
25-01C HUB CAPS (WHEEL COVERS)
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
644365-R
|
CAP, WHEEL HUB, 10 3/4" OUTSIDE DIAMETER, 10 3/8" INSIDE DIAMETER, 2 5/8" DEEP, FOR USE WITH 15" WHEEL WITH 3 OR 4 RAISED MOUNTING BOSSES.
|
2WD VJ/SW/SD DJ-3A
|
$ 52.50 |
| NOS |
644365 NOS
|
CAP, HUB, 10 3/4" OUTSIDE DIAMETER, 10 3/8" INSIDE DIAMETER, 2 5/8" DEEP, FOR USE WITH 15" WHEEL WITH 3 OR 4 RAISED MOUNTING BOSSES.
|
2WD VJ/SW/SD DJ-3A |
$ 86.50
|
| NOS |
948631 NOS
|
COVER, WHEEL HUB, 10 3/4" OUTSIDE DIAMETER, 10 3/8" INSIDE DIAMETER, 2 7/8" DEEP. FOR USE WITH 15" WHEEL WITH 3 OR 4 RAISED MOUNTING BOSSES.
|
LATE CJ-5/6 C101 JEEPSTER |
$ 86.50
|
| NOS |
5352672 NOS
|
COVER, WHEEL, HUB, 10 1/2" OUTSIDE DIAMETER, 10 3/16" INSIDE DIAMETER, 2 7/8" DEEP. FOR USE WITH 15" WHEEL WITH 3 OR 4 RAISED MOUNTING BOSSES.
|
LATE CJ-5/6 C101 JEEPSTER |
$ 86.50
|
|
| |
|
|
| 644365-R |
$ 52.50 |
|
|
|
| 644365-NOS |
$ 86.50 |
|
|
| |
|
|
| 948631-NOS |
$ 86.50 |
|
 |
| 5352672-NOS |
$ 86.50 |
|
|
| |
| |
| |
|
