15-08A  BODY AND CHASSIS WIRING HARNESSES

15-08A-1  COMPLETE WIRING HARNESSES
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-7845



WIRING HARNESS, CLOTH INSULATION.

 MB/GPW $ CALL
RPL 640261



WIRING HARNESS, CLOTH INSULATION, HORN ON FIREWALL.

 CJ-2A, EARLY $ 348.50
RPL 640261T



 WIRING HARNESS, CLOTH INSULATION, HORN ON FIREWALL, WITH TURN SIGNALS.

 CJ-2A, EARLY $ 413.50
RPL 645176



WIRING HARNESS, CLOTH INSULATION, HORN ON FENDER.

 CJ-2A, LATE $ 348.50
RPL 645176T



WIRING HARNESS, CLOTH INSULATION, HORN ON FENDER, WITH TURN SIGNALS.

 CJ-2A, LATE $ 413.50
RPL 645743



WIRING HARNESS, CLOTH INSULATION.

 CJ-3A $ 348.50
RPL 645743T



WIRING HARNESS, CLOTH INSULATION, WITH TURN SIGNALS.

 CJ-3A $ 413.50
RPL 809464



WIRING HARNESS, CLOTH INSULATION, WITH TURN INDIVIDUAL GAUGES AND SPEEDOMETER, WITH TURN SIGNALS.

 CJ-3B, EARLY $ 413.50
RPL 911958



WIRING HARNESS, PLASTIC INSULATION, WITH INSTRUMENT CLUSTER, WITH TURN SIGNALS.

 CJ-3B, LATE $ 413.50
RPL 907227



WIRING HARNESS, CLOTH INSULATION, WITH TURN SIGNALS.

 CJ-5 $ 413.50
RPL 912268



WIRING HARNESS, PLASTIC INSULATION,
WITH TURN SIGNALS.

 CJ-5 $ 413.50
RPL 805401



WIRING HARNESS, WATERPROOF.

 M38 CALL
RPL 810549



 WIRING HARNESS, WATERPROOF.

 M38A1/M170 CALL
RPL 872264



WIRING HARNESS, WATERPROOF.

 M100/M416 TRAILER CALL


PLEASE NOTE- WITH MINOR MODIFICATION, HARNESS PART NO. 912268 CAN BE USED ON THE DJ-3A/CJ-6/FC-150/FC-170 AND LATE MODEL PICKUPS AND STATION WAGONS WITH THE LARGE INSTRUMENT CLUSTER.



TYPICAL WIRING HARNESS




   15-08A-2  SUBCOMPONENT WIRING HARNESSES

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
NOS 646209



HARNESS, WIRE, OVERDRIVE.

 2WD VJ/SW/SD $ 92.50
NOS 909500



HARNESS, WIRING, UPPER BODY
 WITH DIRECTIONAL SIGNAL LIGHTS.

 SW/SD/PU/FC-170 $ 175.00
NOS 915690



 HARNESS, WIRING, UNDER BODY
 WITH DIRECTIONAL SIGNAL LIGHTS.

 FC-150 $ 295.00
NOS 924088



HARNESS, WIRING, GENERATOR TO
 VOLTAGE REGULATOR.

 6-226 SW/SD/PU $ 32.50
NOS 8376502



 LEAD ASSY, ELECTRICAL, INSTRUMENT
 PANEL, WATERPROOF.

 M38/M38A1/M170
 M151/M715 AND
 OTHER MILITARY
 VEHICLES
$ 32.50
RPL A-719A



CABLE, DOUBLE CONTACT, TWO WIRE, BLACKOUT TAIL LIGHT LEFT, 31" LONG, 1 REQD.

 MB/GPW
 OTHER WWII
 VEHICLES
$ 22.50
RPL A-719B



CABLE, SINGLE CONTACT, ONE WIRE, BLACKOUT TAIL LIGHT LEFT OR RIGHT, 31" LONG, 3 REQD.

 MB/GPW
 OTHER WWII
 VEHICLES
$ 22.50


  646209

$ 92.50

    909500

$ 175.00




  915690

$ 295.00

    924088

$ 32.50




8376502 $ 32.50
A-719A $ 22.50

A-179B $ 22.50



15-08A-3 BULK WIRE HARNESS


PREFIX PART NO. DESCRIPTION APPLICATION  PRICE
NOS A-5048



BULK WIRE HARNESS, 3-WIRE, RED, BROWN, AND WHITE WITH 1/2" I.D. COTTON LOOM, 1942 ISSUE.

ALL VEHICLES WITH CLOTH INSULATED WIRING
$ 5.50 FT.
OEM WHB-3



BULK WIRE HARNESS, 3-WIRE, RED, BLACK, AND GREEN, 14 GAUGE WIRES.

ALL VEHICLES WITH PLASTIC INSULATED WIRING $ 1.95 FT.
OEM
WHB-2



BULK WIRE HARMESS, 2 WIRE, RED AND BLACK, 16 GAUGE WIRES.

ALL VEHICLES WITH PLASTIC INSULATED WIRING $ 1.05 FT.

A-5048 $ 5.50 FT.
WHB-3 $ 1.95 FT.

WHB-2 $ 1.05 FT.

15-08A-4  WIRING HARNESS CLAMPS, CLIPS AND GROMMETS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

OEM

A-5598 78316



CLAMP, WIRING HARNESS, 1/4" I.D, STEEL.

 ALL VEHICLES

$ 0.75 EA.

OEM

A-5449



 CLAMP, WIRING HARNESS, 3/8" I.D, STEEL.

 ALL VEHICLES

$ 0.75 EA.

OEM

927663



CLAMP, WIRING HARNESS, 1/4" I.D., NYLON.

 ALL VEHICLES

$ 0.50 EA.

OEM

17087



CLAMP, WIRING HARNESS, INSULATED, 3/16"  I.D.

 ALL VEHICLES

$ 0.75 EA.

OEM

10599



CLAMP, WIRING HARNESS, INSULATED, 5/16"  I.D.

 ALL VEHICLES

$ 0.75 EA.

OEM

10600



CLAMP, WIRING HARNESS, INSULATED, 3/8"  I.D.

 ALL VEHICLES

$ 0.75 EA.

OEM

10609



CLAMP, WIRING HARNESS, INSULATED, HALF TYPE, 1/4"  I.D.

 ALL VEHICLES

$ 0.75 EA.

OEM

20502



CLAMP, WIRING HARNESS, INSULATED, NEOPRENE JACKET, 1/4"  I.D.

 ALL VEHICLES

$ 2.25 EA.

OEM

809223



CLAMP, RETAINER, BODY WIRING HARNESS THRU FIREWALL

LATE CJ-3B/5/6 SW/SD/VJ/PU

$ 17.00

OEM

No.3118



CLIP, WIRING HARNESS, 1 1/2" x 1/2"  FOR USE ON FRAME RAILS AND SHEET METAL.

 ALL VEHICLES

$ 0.75 EA.

OEM

B510-72



CLIP, WIRING HARNESS, 3/4" X 3/8"   FOR USE ON SHEET METAL.

 ALL VEHICLES

$ 0.45 EA.

OEM

345961



GROMMET, 3/8", RUBBER, WIRING HARNESS THROUGH FIREWALL, FOR USE IN 7/8" HOLE.

 ALL VEHICLES

$ 3.50 EA.

OEM

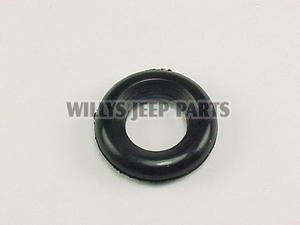

662276



GROMMET, 5/8", RUBBER, WIRING HARNESS THROUGH FIREWALL, FOR USE IN 7/8" HOLE.

 ALL VEHICLES

$ 3.50 EA.

OEM

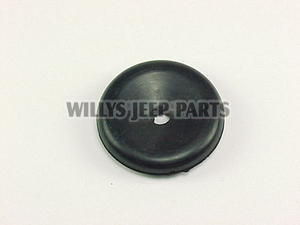

662420



GROMMET, 3/16", RUBBER, WIRING HARNESS THROUGH FIREWALL, FOR USE IN 7/8" HOLE.

 ALL VEHICLES

$ 3.50 EA.

OEM

906116



GROMMET, 1 7/8", RUBBER, BODY WIRING HARNESS THRU FIREWALL, FOR USE WITH CLAMP No. 809223.

LATE CJ-3B/5/6 SW/SD/VJ/PU

$ 6.50


A-5598/78316 $ 0.75 EA.
A-5449 $ 0.75 EA.

928663 $ .50 EA.

17087 $ 0.75 EA.

10599 $ 0.75 EA.
10600 $ 0.75 EA

10609 $ 0.75 EA.
20502 $ 2.25 EA.


809223 $ 17.00

No. 3118

$ 0.75 EA.



B510-72

$ 0.45 EA.

345961 $ 3.50

662276 $ 3.50
662420 $ 3.50 EA.

906116 $ 6.50

15-08A-5  WIRING HARNESS LOOMS

PREFIX PART NO. DESCRIPTION APPLICATION  PRICE
OEM WHL-19



WOVEN COTTON FABRIC ASPHALT-COATED WIRE LOOM, SEAMLESS AND MOISTURE PROOF, 3/16" I.D., SOLD BY THE FOOT.

ALL VEHICLES $ 1.00 FT.
OEM WHL-20



WOVEN COTTON FABRIC ASPHALT-COATED WIRE LOOM, SEAMLESS AND MOISTURE PROOF, 1/4" I.D., SOLD BY THE FOOT.

ALL VEHICLES $ 1.00 FT.
OEM WHL-22



WOVEN COTTON FABRIC ASPHALT-COATED WIRE LOOM, SEAMLESS AND MOISTURE PROOF, 3/8" I.D., SOLD BY THE FOOT.

ALL VEHICLES $ 1.50 FT.
OEM WHL-23



WOVEN COTTON FABRIC ASPHALT-COATED WIRE LOOM, SEAMLESS AND MOISTURE PROOF, 7/16" I.D., SOLD BY THE FOOT.

ALL VEHICLES $ 1.75 FT.
OEM
WHL-24



WOVEN COTTON FABRIC ASPHALT-COATED WIRE LOOM, SEAMLESS AND MOISTURE PROOF, 1/2" I.D., SOLD BY THE FOOT.

ALL VEHICLES $ 1.75 FT.


WHL-20 $ 1.00 FT.
WHL-22 $ 1.50 FT.

WHL-24 $ 1.75 FT.



CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
