15-20C  ELECTRIC WINDSHIELD WIPERS
15-20C-1 EWM UNIVERSAL ELECTRIC WINDSHIELD WIPER KITS FOR 1/4-TON VEHICLES

These kits are designed to be mounted on virtually any surface including the inner windshield frames on the MB, GPW, and the CJ-2A. They can also be mounted on the lower tubular windshield frames on the CJ-3A, DJ-3A and M38 as well as the flat sheet metal windshield frames on the CJ-3B, CJ-5, CJ-6, M38A1, M422, and the M715.

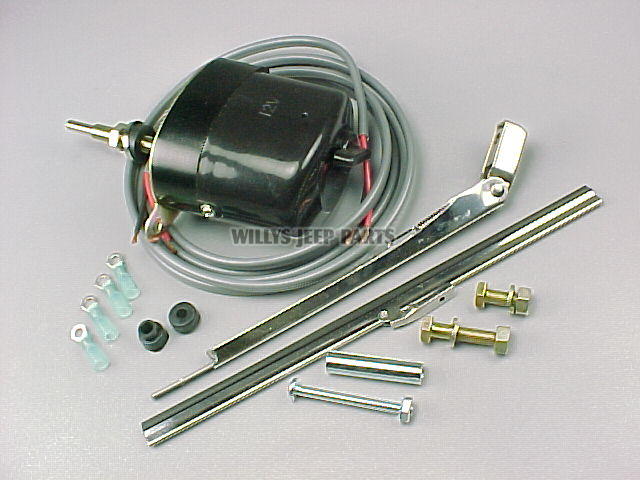

Our EWM single speed windshield wiper kits are available for 6-volt, 12-volt and 24-volt electrical systems. All of these kits include the wiper motor, an adjustable wiper arm, a 9" wiper blade, a wiring harness, ring terminals, grommets and the mounting hardware to include the motor to windshield spacer if required. The 6-volt, 12-volt and 24-volt kits have an ON-OFF switch located on the rear of the motor. The 12-volt stainless steel kit includes a toggle type ON-OFF switch and mounting bracket. The threaded mounting shaft and wiper arm drive shaft on these wiper motors can be shortened with a hack saw.

The power souce for these kits will be the AUX terminal on your ignition switch.


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL EWM 6V



 UNIVERSAL WIPER MOTOR KIT,
 6-VOLT, SINGLE SPEED, COMPLETE.



 CJ/DJ/MILITARY
 WITH 6-VOLT
 SYSTEM
$ 57.50
RPL EWM 12V



 UNIVERSAL WIPER MOTOR KIT,
 12-VOLT, SINGLE SPEED, COMPLETE.



 CJ/DJ/MILITARY
 WITH 12-VOLT
 SYSTEM
$ 57.50
RPL EWM 12V-SS



 UNIVERSAL WIPER MOTOR KIT,
 12-VOLT, SINGLE SPEED, COMPLETE, WITH STAINLESS STEEL HOUSING.



 CJ/DJ/MILITARY
 WITH 12-VOLT
 SYSTEM
$ 71.50
RPL EWM 24V



 UNIVERSAL WIPER MOTOR KIT,
 24-VOLT, SINGLE SPEED, COMPLETE.



 MILITARY WITH
 24-VOLT SYSTEM
$ 57.50

EWM 6V OR 12V
$ 57.50
EWM 12V-SS $ 71.50

EWM 24V $ 57.50

             EWM UNIVERSAL WIPER MOTOR PARTS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE

RPL

EWM-A



ARM, WINDSHIELD WIPER, SPADE TYPE, ADJUSTABLE, 6 3/4"-11", STAINLESS STEEL.



ALL EWM MOTORS

$ 7.50

RPL

EWM-B



BLADE, WINDSHIELD WIPER, SPADE TYPE 9", STAINLESS STEEL.



 ALL EWM MOTORS

$ 7.50

OEM 953621



 SPACER, WINDSHIELD WIPER MOTOR TO WINDSHIELD FRAME. INCLUDES SCREW AND LOCK NUT.

 ALL EWM MOTORS $ 2.75
OEM A-17659



CLIP, WINDSHIELD WIPER WIRE HARNESS, SNAPS ON THE TUBULAR OUTER WINDSHIELD FRAME ON THE MB, GPW AND CJ-2A WITH UNIVERSAL WIPER MOTOR KITS.

MB/GPW CJ-2A
$ 5.25 EA.


  EWM-A

$ 7.50

    EWM-B

$ 7.50





953621

$ 2.75



A-17659

$ 5.25




15-20C-2  OEM TOP MOUNTED ELECTRIC WINDSHIELD WIPERS FOR 1/4-TON VEHICLES

This kit was offered as an option to the slow and unreliable vacuum windshield wipers on the late CJ-3B, CJ-5, and CJ-6. The kit can be mounted on all other 1/4-ton vehicles as well as the M715 truck.

Our kit includes an OEM American Bosch TYPE WWF 12-volt two speed electric wiper motor with an OEM wiper arm, blade, switch and wiring harness. Included in the kit are all of the wire harness clips, screws, and terminals as well as all mounting hardware. An optional two speed rocker switch is available that mounts directly on the wiper motor housing.

The power source for this kit will be the AUX terminal on your ignition switch.


977343-K $ 270.00

            TOP MOUNTED ELECTRIC WINDSHIELD WIPER PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 977343



MOTOR, WINDSHIELD WIPER, TWO SPEED, 12 VOLT, AMERICAN BOSCH BRAND.

 LATE CJ-3B/5/6

$ 186.50

OEM 947341-A



SWITCH, WINDSHIELD WIPER, PUSH-PULL TYPE, TWO SPEED, MOUNTS ON INSTRUMENT PANEL.

 LATE CJ-3B/5/6 $ 26.50
OEM 947341-B



 SWITCH, WINDSHIELD WIPER, ROCKER TYPE, TWO SPEED, MOUNTS ON WIPER MOTOR HOUSING.

 LATE CJ-3B/5/6 $ 32.50
OEM 689789



ARM, WINDSHIELD WIPER, SPADE TYPE, 10 1/2".

 LATE CJ-3B/5/6 $ 12.75
OEM 675477 ADJ



ADJUSTABLE WIPER ARM KIT, STAINLESS STEEL. THE WIPER ARM IN THIS KIT EXTENDS FROM 8" TO 11 1/2", THE KIT INCLUDES TWO WIPER MOTOR SHAFT ADAPTERS FOR THE THREADED OR NON-THREADED SHAFTS, THE WIPER BLADE ANGLE IS ALSO ADJUSTABLE. THIS WIPER ARM FITS ALL OF OUR SPADE TYPE WIPER BLADES.

 LATE CJ-3B/5/6 $ 38.50 EA.
OEM 975712



 BLADE, WINDSHIELD WIPER, 9" LONG, SPADE TYPE.

 LATE CJ-3B/5/6 $ 16.50
OEM 689790



 BLADE, WINDSHIELD WIPER, 10" LONG, SPADE TYPE.

 LATE CJ-3B/5/6 $ 16.50
OEM 953621



SPACER, MOUNTING, WIPER MOTOR, INCLUDES THE SCREW AND NUT.

 LATE CJ-3B/5/6 $ 2.75
OEM 947311



 HARNESS, ELECTRICAL, WIPER CONTROL SWITCH TO WIPER MOTOR, INCLUDES THE CLIPS, SCREWS AND TERMINALS.

 LATE CJ-3B/5/6 $ 26.50


  977343

$ 186.50

    947341-A

$ 26.50




  947341-B

$ 32.50

    689789

$ 12.75



675477-ADJ $ 38.50 EA.
975712 $ 16.50

953621 $ 2.75
947311 $ 26.50


15-20C-3 BOTTOM MOUNTED ELECTRIC WINDSHIELD WIPERS FOR LATE CJ-5/6
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 978529-R



 MOTOR, WINDSHIELD WIPER, SINGLE SPEED,12-VOLT WITH WIRE HARNESS.



 LATE CJ-5/6 WITH BOTTOM MOUNT ELECTRIC WIPERS $ 121.50

978529-R $ 121.50

            BOTTOM MOUNTED ELECTRIC WINSHIELD WIPER PARTS FOR THE LATE CJ-5/6
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 977927



 COVER, WINDSHIELD WIPER MOTOR, STAINLESS STEEL, FOR MOTOR No. 973353.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 65.00
OEM 947341-A



 SWITCH, WINDSHIELD WIPER, PUSH-PULL TYPE.

LATE CJ-5/6 WITH BOTTOM MOUNT ELECTRIC WIPERS $ 18.50
RPL 5758005-R



ARM, WINDSHIELD WIPER, SPADE TYPE, L & R, STAINLESS STEEL, USA BRAND, 10 1/2".



 LATE CJ-5/6 WITH
 BOTTOM MOUNTED
 WIPERS
$ 12.75
OEM 675477   ADJ



ADJUSTABLE WIPER ARM KIT, STAINLESS STEEL. THE WIPER ARM IN THIS KIT EXTENDS FROM 8" TO 11 1/2", THE KIT INCLUDES TWO WIPER MOTOR SHAFT ADAPTERS FOR THE THREADED OR NON-THREADED SHAFTS, THE WIPER BLADE ANGLE IS ALSO ADJUSTABLE. THIS WIPER ARM FITS ALL OF OUR SPADE TYPE WIPER BLADES.

 LATE CJ-5/6 WITH BOTTOM MOUNTED WIPERS

$ 38.50 EA



OEM 675477



 BLADE, WINDSHIELD WIPER,
 SPADE TYPE, STAINLESS
 STEEL BACK, 11", TRICO USA BRAND.

      SW/SD/VJ/PU       LATE CJ-5/6  JEEPSTER  COMMANDO

$ 16.50
OEM 975792



BLADE, WINDSHIELD WIPER,
 SPADE TYPE, STAINLESS
 STEEL BACK, 15", TRICO USA BRAND.

J- SERIES VEHICLES 16.50
RPL 4005672-R



 NUT, WINDSHIELD WIPER PIVOT.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 2.50
RPL 5459081-R



 SPACER, WINDSHIELD WIPER PIVOT.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 7.50
RPL 973658-R



 GASKET, WINDSHIELD WIPER PIVOT.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 1.95
RPL 957868-R



 CLIP, WINDSHIELD WIPER ARM.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 1.95

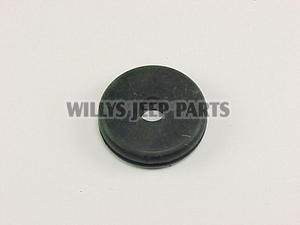

OEM 819305



 GROMMET, WINDSHIELD WIPER WIRE HARNESS THROUGH WINDSHIELD LOWER PANEL AND INSTRUMENT PANEL, FOR USE WITH 3/4" HOLE, 2 REQD.

 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 3.50 EA
RPL 5459189-R



 KNOB, WIPER SWITCH.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 9.75
NOS
959282 NOS



SWITCH, WINDSHIELD WIPER ASSY., (3 PRONGS), BLADE TYPE TERMINALS, INCLUDES THE KNOB.

 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 62.50
RPL 5460089-R



SWITCH, WIPER.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 26.00
RPL 987911-R



BEZEL WIPER SWITCH.



 LATE CJ-5/6 WITH
 BOTTOM MOUNT
 ELECTRIC WIPERS
$ 5.50

997927 $ 65.00

947341-A $ 18.50

5758005-R $ 12.75

675477-ADJ $ 38.50  EA.


  675477 $ 16.50     4005672-R

$ 2.50




  5459081-R

$ 7.50

    973658-R

$ 1.95




957868-R

$ 1.95

819305 $ 3.50 EA.

5459189-R $ 9.75
959282-NOS $ 62.50


15-20C-4  FIREWALL MOUNTED ELECTRIC WINDSHIELD WIPER KIT FOR UTILITY VEHICLES

TWO SPEED 12-VOLT WINDSHIELD WIPER MOTOR KIT FOR ALL WILLYS UTILITY VEHICLES TO INCLUDE THE UTILITY WAGONS, SEDAN DELIVERIES AND TRUCKS.

957958 $ 245.50


With this kit we have adapted a new original OEM American Bosch TYPE WWF 12-volt, two speed electric wiper motor that was used on the late CJ-3B, CJ-5, and CJ-6 to a bracket that eliminates the old slow unreliable single speed vacuum wiper motor.

The supplied bracket is attached to the engine side of the firewall with four screws and the new wiper motor drives the original wiper motor auxiliary drive with a new drive cam.

All of the original windshield wiper parts and controls are used to include the cables, tensioners, pivot shafts, arms and blades.

Our kit includes a two speed wiper control switch with an ivory control knob that mounts where the original switch was located on the top of the dash. Our kit includes a wire harness and waterproof terminals for the motor and switch. A simple detailed wiring diagram is also included,



15-20C-5 ELECTRIC WINDSHIELD WIPERS FOR THE M151

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 1164116



ARM, WINDSHIELD WIPER, WITH CLIP FOR RIVET OR SCREW, FOR USE WITH ELECTRIC WIPER MOTORS.

 M151 ALL MODELS
$ 13.50
OEM 1164115



 BLADE, WINDSHIELD WIPER,
 RIVET OR SCREW TYPE, 10" LONG, FOR USE WITH ELECTRIC WIPER MOTORS.

 M151 ALL MODELS
$ 6.50


1164116 $ 13.50

1164115 $ 6.50


CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
