31-16  WEATHERSTRIPS AND SEALS
31-16A

            WINDSHIELD WEATHERSTRIPS AND SEALS FOR WILLYS MILITARY AND CIVILIAN
            1/4-TON JEEPS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM A-2250



 WEATHERSTRIP, INNER W/S, THIS IS THE SEAL BETWEEN THE SWING-OUT WINDSHIELD AND THE OUTER FRAME, 78" LONG.

 MB/GPW/CJ-2A $ 22.50
RPL A-2476



 WEATHERSTRIP, W/S FRAME TO COWL, THIS IS THE SEAL AT THE BOTTOM OF THE WINDSHIELD FRAME.

 MB/GPW/CJ-2A $ 46.50
OEM A-2479



 PADDING, W/S GLASS, (EVERSEAL, 1/16" THICK), 74" LONG, THIS IS THE RUBBER THAT HOLDS THE GLASS IN THE FRAME.

 MB/GPW/CJ-2A $ 12.50
RPL 670923



 WEATHERSTRIP, W/S GLASS, WITH LOCKING STRIP, THIS IS THE SEAL AROUND THE GLASS.

 CJ-3A/3B/M606 DJ-3A/M38 $ 42.50
RPL 671045



WEATHERSTRIP, W/S FRAME TO COWL, THIS IS THE SEAL AT THE BOTTOM OF THE WINDSHIELD FRAME.

 CJ-3A/3B/M606 DJ-3A/M38 $ 24.50
RPL 671316



 WEATHERSTRIP, WINDSHIELD, VENTILATOR LID.

 CJ-3A/M38 $ 7.50
RPL 689844



 WEATHERSTRIP, W/S GLASS, WITH LOCKING STRIP, THIS IS THE SEAL AROUND THE GLASS.

 CJ-5/6/M38A1 M170/M422 M606A2/A3
$ 42.50
RPL 689844-B



 WEATHERSTRIP, WINDSHIELD CENTER DIVISION BAR, FOR TWO PIECE GLASS.

  CJ/5/6 M38A1/M170 M422/M606A2/A3
$ 26.50
RPL 680430 8329659



WEATHERSTRIP, W/S GLASS, WITH LOCKING STRIP, THIS IS THE SEAL AROUND THE GLASS, FOR THE TWO PIECE GLASS, THE CENTER DIVISION BAR IS BONDED TO THE OUTER STRIP.

  CJ/5/6 M38A1/M170 M422/M606A2/A3
$ 76.50
RPL 680505



 WEATHERSTRIP, W/S FRAME TO COWL, THIS IS THE SEAL AT THE BOTTOM OF THE WINDSHIELD.

 CJ-5/6/M38A1 M170/M422 M606A2/A3
$ 28.50
OEM 690398



CUSHION, W/S GLASS. (EVERSEAL, 1/16" THICK), 150" LONG, FOR USE WITH THE VENTILATING (SWING OUT) INNER WINDSHIELD.

CJ-3B/M606  CJ-5/6  M606A2/A3
$ 22.50
OEM 692547



SEAL, INNER W/S FRAME TO OUTER W/S FRAME, 150" LONG, FOR USE WITH THE VENTILATING (SWING OUT) INNER WINDSHIELD.

CJ-3B/M606  CJ-5/6  M606A2/A3
$ 172.50

A-2250 $ 22.50
A-2476 $ 46.50

A-2479 $ 12.50
670923 $ 42.50

671045 $ 24.50
671316 $ 7.50

689844 $ 42.50
689844-B $ 26.50


680430/8329659 $ 76.50
680505 $ 28.50


690398 $ 22.50

692547 $ 172.50


              WINDSHIELD CHANNELS AND WEATHERSTRIPS FOR THE
              UTILITY WAGONS, JEEPSTER, TRUCKS AND FORWARD CONTROL TRUCKS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 664203



 CHANNEL, W/S, 2 PC.GLASS, THIS IS THE SEAL AROUND THE WINDSHIELD GLASS AND THE CENTER DIVISION BAR.

 SW/SD/PU $ 152.50
RPL 954177



 CHANNEL, W/S, 1 PC.GLASS, THIS IS THE SEAL AROUND THE WINDSHIELD GLASS.

 SW/SD/PU NLA
RPL 669903



WEATHERSTRIP, W/S, 2 PC. GLASS, THIS IS THE SEAL AROUND THE WINDSHIELD GLASS.

VJ NLA
OEM 694211



 WEATHERSTRIP, W/S GLASS, THIS IS THE SEAL AROUND THE WINDSHIELD GLASS.

 FC-150/170 $ 110.00

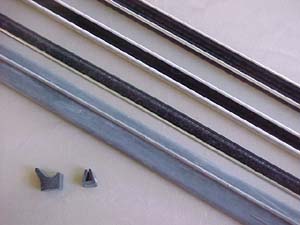

31-16B  DOOR SEALS, CHANNELS, SWEEPS AND WEATHERSTRIPS

           UTILITY STATION WAGON, SEDAN DELIVERY AND TRUCK DOOR SEALS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 668345



 CUSHION, GLASS SETTING, DOOR
  WINDOW,  THIS IS THE SPECIAL EXTRUDED RUBBER AT THE BOTTOM OF THE GLASS, 19" LONG, 2 REQD.

 SW/SD/PU $ 12.50 EA
OEM 664645



 CHANNEL, RIGID, DOOR GLASS, FRONT, THIS IS THE CHANNEL THAT THE GLASS SLIDES UP AND DOWN, 37" LONG, RUBBER COVERED, PILE AND FELT LINED, 2 REQD.

 SW/SD/PU $ 32.50 EA.
OEM 664996



 CHANNEL, FLEXIBLE, DOOR GLASS, TOP AND  REAR,  THIS IS THE CHANNEL THAT THE GLASS SLIDES UP AND DOWN, 54" LONG, RUBBER COVERED, PILE AND FELT LINED, 2 REQD.

 SW/SD/PU $ 98.50 EA.
RPL 668355 668356



WEATHERSTRIP, MOULDED RUBBER, VENT WING FRAME LEFT &  RIGHT, 2 PC, THIS IS THE SEAL AROUND THE TOP, FRONT AND BOTTOM OF THE MOVEABLE VENT WINDOW FRAME.

 SW/SD/PU $ 198.50 PR.
RPL

667092/3



SEAL, RUBBER COVERED STEEL, VENT WINDOW GLASS, LEFT OR RIGHT, THIS IS THE SEAL AT THE REAR OF THE VENT WINDOW GLASS THAT SNAPS ON TO THE DOOR DIVISION BAR. 16" LONG.

 SW/SD/PU NLA
OEM 668370



EVERSEAL, VENT WINDOW GLASS TO VENT WINDOW FRAME, THIN, 30" LONG X 1 1/2" WIDE X 1/32" THICK.

 SW/SD/PU $ 14.50 PR.
OEM 668371



EVERSEAL, VENT WINDOW GLASS TO VENT WINDOW FRAME, THICK, 30" LONG X 1 1/2" WIDE X 1/16" THICK.

 SW/SD/PU $ 14.50 PR.
OEM 667500



 WEATHERSTRIP ( SWEEP ), FLEXIBLE, DOOR GLASS, THESE ARE THE FUZZY STRIPS BETWEEN THE GLASS, 19" LONG, RUBBER COVERED, PILE LINING, 4 REQD.

 SW/SD/PU $ 9.50 EA.
OEM 667500-K



KIT,  WEATHERSTRIP ( SWEEP ), FLEXIBLE, DOOR GLASS, THIS KIT INCLUDES FOUR PRE-BENT SWEEPS AS LISTED ABOVE AND EIGHT 668802 FASTNERS INSTALLED IN THE CORRECT POSITIONS ON THE SWEEPS.

 SW/SD/PU $ 110.00
OEM 668802



FASTENER, DOOR WINDOW WEATHERSTRIP ( SWEEP), THESE GRIP THE SWEEP AND SNAP INTO THE DOOR AND GARNISH, 8 REQD. FOR ONE DOOR.

 SW/SD/PU $ 1.50 EA.
OEM 664695



WEATHERSTRIP, WITH 3M ADHESIVE, FRONT DOOR, THIS IS THE SPONGE RUBBER SEAL AROUND THE ENTIRE DOOR, 13' LONG, 2 REQD.

 SW/SD/PU $ 29.50 EA.
OEM 664695K



SEAL KIT, DOOR COMPLETE, L & R.

THIS KIT INCLUDES: ALL OF THE ITEMS LISTED ABOVE:
DOOR WINDOW GLASS SETTING CHANNEL, 2 EA.
DOOR WINDOW GLASS RUN, FRONT, 2 EA.
DOOR WINDOW GLASS RUN, TOP AND REAR, 2 EA.
DOOR VENT WINDOW FRAME WEATHERSTRIP, 2 EA.
DOOR WINDOW GLASS SWEEP, 4 EA.
DOOR WEATHERSTRIP, 2 EA.
FASTNER, DOOR WINDOW WEATHERSTRIP, 8 EA.

 SW/SD/PU $ 563.50

668345 X 19"
$ 12.50 EA.
664645 X 37"
$ 32.50 EA.

664996 X 54"
$ 98.50 EA.
668355/56 $ 198.50 PR.

VENT WINDOW EVERSEAL
$ 14.50 PR.
667092/3 X 16" NLA

667500 X 19" $ 9.50 EA.
668802 $ 1.50 EA.

664695 X 13'
$ 29.50


           DOOR SEALS, CHANNELS, SWEEPS AND WEATHERSTRIPS
           FOR THE FORWARD CONTROL TRUCKS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 699760



 CUSHION, GLASS SETTING, THIS IS THE SPECIAL EXTRUDED RUBBER AT THE BOTTOM OF THE GLASS, 19" LONG, 2 REQD..

 FC-150/170 $ 12.50 EA.
OEM 817211  KIT



 KIT, DOOR GLASS CHANNEL, THESE ARE THE RIGID CHANNELS THAT THE GLASS SLIDES UP AND DOWN, SIDES AND TOP, 85" LONG, RUBBER COVERED, PILE AND FELT LINED, 2 REQD.

 FC-150/170 $ 64.50 EA.
OEM 695170



WEATHERSTRIP (SWEEP), DOOR GLASS, THESE ARE THE FUZZY STRIPS BETWEEN THE GLASS, 19" LONG, RUBBER COVERED, PILE LINING, 2 REQD.

 FC-150/170 $ 9.50 EA.
OEM 668802



FASTENER, DOOR WINDOW WEATHERSTRIP ( SWEEP), THESE GRIP THE SWEEP AND SNAP INTO THE DOOR AND GARNISH, 8 REQD.

 FC-150/170 $ 1.50 EA.
OEM 667086



WEATHERSTRIP,  RUBBER COVERED STEEL, DOOR DIVISION BAR, FRONT, SEALS REAR OF VENT WING GLASS 16", USES 4 SCREWS, 2 REQD.

 FC-150/170 $ 16.50 EA.
OEM 668370



EVERSEAL, VENT WINDOW GLASS TO VENT WINDOW FRAME, THIN, 38" LONG X 1 1/2" WIDE X 1/32" THICK.

 FC-150/170 $ 14.50 PR.
OEM 668371



EVERSEAL, VENT WINDOW GLASS TO VENT WINDOW FRAME, THICK, 38" LONG X 1 1/2" WIDE X 1/16" THICK.

 FC-150/170 $ 14.50 PR.
OEM 699745



WEATHERSTRIP,  DOOR, FRONT BODY PILLAR, SEALS THE FORWARD EDGE OF THE BODY AND FRONT OF DOOR, 32" LONG, 2 REQD.

 FC-150/170 $ 9.50 EA.
OEM 815447  KIT



 KIT, DOOR WEATHERSTRIP, THESE ARE THE SEALS AROUND THE ENTIRE DOOR, ORIGINAL DETAILED INSTRUCTIONS INCLUDED.

 FC-150/170 $ 82.50 PR.

699760 X 19"
$ 12.50 EA.
817211-KIT X 85"
$ 64.50 EA.

695170 X 19"
$ 9.50 EA.
668802 $ 1.50 EA.

667086 X 16"
$ 16.50 EA.
VENT WINDOW EVERSEAL
$ 14.50 PR.

699745 X 32" $ 9.50 EA.
815447-KIT $ 82.50 PR.




31-16C  SIDE WINDOW CHANNELS, WEATHERSTRIPS, PULLS AND LOCKS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 664668



 CHANNEL, GLASS RUN, FRONT SIDE
  SLIDING WINDOW, 2 REQD, 96" LONG.

  SW $ 68.50 EA.
RPL 671419



 WEATHERSTRIP, RUBBER FRONT FIXED AND SLIDING SIDE
  WINDOW, 2 REQD, 96" LONG.

  SW $ 73.50 EA.
OEM 664475



BAR, DIVISION, STAINLESS STEEL, FRONT SIDE FIXED WINDOW GLASS, 17" LONG, 2 REQD. THIS IS THE GLASS EDGE RIGID WHEATHERSTRIP THAT ATTACHES TO THE FRONT OF THE FIXED GLASS AND BETWEEN THE TWO PANES OF GLASS, USE TWO PER SIDE FOR A POSITIVE SEAL.

  SW $ 15.50 EA.



RPL



675381



PULL, SLIDING WINDOW GLASS, 3" LONG, SATIN ANODIZED ALUMINUM, LOCKS ONTO THE GLASS WITH RUBBER GLASS SETTING CHANNEL, SOLD AS A PAIR.

  SW $ 38.50 PR.



RPL



816832



KNOB, SLIDING WINDOW GLASS, 3/4" TALL, 9/16" WIDE, SATIN ANODIZED ALUMINUM, INCLUDES SPECIAL KNOB TO GLASS ADHESIVE, SOLD AS A PAIR.

  SW $ 18.50 PR.



RPL



954162



LOCK, SLIDING WINDOW GLASS, ATTACHES TO INSIDE TOP OF INNER GARNISH. INCLUDES SCREWS AND NUTS, 2 REQD.

  SW $  EA.

SLIDING WINDOW GLASS RUN AND
RUBBER WEATHERSTRIPS

664475

$ 15.50 EA.



675381 $ 38.50 PR.
816832 $ 18.50 PR.

945162 $


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 668891



 WEATHERSTRIP, RUBBER, FRONT STATIONARY SIDE  WINDOW, 2 REQD. FOR USE WITHOUT A SLIDING WINDOW, 90" LONG.

  SW $ 68.50 EA.
OEM 664257



 CHANNEL, RUBBER, REAR QUARTER WINDOW
  GLASS, 2 REQD., 90" LONG.

  SW $ 68.50 EA.
OEM 696217



 WEATHERSTRIP, RUBBER, QUARTER WINDOW
  GLASS, 2 REQD, 48" LONG.

  FC-150/170 $ 52.50 EA.



SIDE WINDOW SEALS, CHANNELS
AND WEATHERSTRIPS


31-16D  REAR SEALS, CHANNELS AND WEATHERSTRIPS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 663730



 UPPER TAILGATE WINDOW CHANNEL,
  2 REQD., THIS IS THE SEAL AROUND THE GLASS.

 EARLY SW $ 38.50 EA.
OEM 670684



 UPPER TAILGATE WINDOW CHANNEL,
  2 REQD., THIS IS THE SEAL AROUND THE GLASS.

 LATE SW $ 38.50 EA.
RPL 952375



 UPPER TAILGATE WINDOW
  WEATHERSTRIP, 1 PC., THIS IS THE SEAL AROUND THE GLASS.



 LATE SW NLA
OEM 664434



 REAR DOOR WINDOW CHANNEL, 2 REQD., THIS IS THE SEAL AROUND THE GLASS.

 SD $ 32.50 EA.
OEM 664897



 REAR WINDOW CHANNEL, 1 PC.
  30" WIDE GLASS, THIS IS THE SEAL AROUND THE GLASS.

 EARLY PU $ 48.50
OEM 819339



 REAR WINDOW CHANNEL, 1 PC.
  47" WIDE GLASS, THIS IS THE SEAL AROUND THE GLASS.

 LATE PU $ 68.50
OEM 694310



 REAR WINDOW WEATHERSTRIP, 1 PC., THIS IS THE SEAL AROUND THE GLASS.

 FC-150/170 $ 79.50



REAR WINDOW CHANNELS AND
WEATHERSTRIPS


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 669210



SEAL, SIDES OF TAILGATE OPENING, (REAR BODY PILLAR) 2 REQD., 48" EA.

  SW/SD $ 11.50 EA.
OEM 668991



 WEATHERSTRIP, BOTTOM OF UPPER
  TAILGATE, 60" LONG.

  SW $ 11.50
OEM 664701



WEATHERSTRIP, REAR DOOR, LEFT, 48" LONG.

 SW/SD $ 11.50
OEM 664702



 WEATHERSTRIP, REAR DOOR, RIGHT, 96" LONG.

  SW/SD $ 22.50


REAR DOOR AND TAILGATE SEALS
AND WEATHERSTRIPS



WE SELL EVERY RUBBER PART FOR EVERY WILLYS JEEP VEHICLE
