| 24-05 BRAKE TUBES AND HOSES |
|
| 24-05A BRAKE TUBES (STEEL) |
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-1488-R |
TUBE, "S", FRONT WHEEL CYLINDER TO AXLE HOSE, 2 REQD.
|
ALL 1/4 TONS WITH FRONT BRAKE HOSE GUARD ON KING PIN CAP
|
$ 4.25 EA.
|
| RPL |
937325-R |
TUBE "Z" FRONT WHEEL CYLINDER TO FRAME HOSE, 2 REQD.
|
LATE CJ-5/6 WITH FRONT BRAKE HOSE SUPPORT ON KING PIN CAP |
$ 6.50 EA.
|
| OEM |
808905
|
TUBE, EXTENSION, MASTER CYLINDER TO REAR AXLE BRAKE HOSE, 20" LONG, FOR USE DUE TO THE EXTENDED LENGTH OF THE FRAME ON THE CJ-6 AND M170
|
CJ-6 M170
|
$ 6.50 |
| OEM |
123300
|
UNION, TUBE EXTENSION, USE TO ADD EXTRA LENGTH TO THE FRAME ON THE CJ-6 AND M170, 2 REQD., FOR USE WITH 3/16" TUBE.
|
CJ-6 M170 |
$ 2.50 EA.
|
|
|
| |
 |
| A-1488-R |
$ 4.25 |
|
 |
| 937325-R |
$ 6.50 |
|
|
|
| |
|
| 123300 |
$ 2.50 EA.
|
|
|
| |
|
BRAKE TUBE KITS
|
|
| |
|
|
All of the tubes include pre installed anti-chafe cloth loom at the clamp and clip points. These kits include the brake axle tube clamps. The flexible brake hoses are not inlcluded with these kits and can be found elsewhere in this group.
NOTE- The extended lenth of the CJ-5 anf the M170 require the use of one 20" brake tube extension: P/N 808905 and two brake tube unions: P/N 123300 on the frame rail. These parts are shown above.
|
|
|
| |
|
CJ-2A/3A/3B BRAKE TUBE KITS
|
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
BTK MOD25
|
FRONT AXLE BRAKE TUBE KIT FOR THE MODEL 25 FRONT AXLE.
|
CJ-2A/3A/3B
|
$ 38.50
|
| RPL |
BTK MOD41
|
REAR AXLE BRAKE TUBE KIT FOR THE MODEL 41 REAR AXLE.
|
CJ-2A 1945-49
|
$ 38.50 |
| RPL |
BTK MOD44
|
REAR AXLE BRAKE TUBE KIT FOR THE MODEL 44 REAR AXLE.
|
CJ-3A/3B 1949-53
|
$ 38.50 |
| RPL |
BTK-F 2A-E
|
FRAME RAIL BRAKE TUBE KIT FOR THE EARLY CJ-2A.
|
CJ-2A 1945-47
|
$ 38.50 |
| RPL |
BTK-F 2A/3A/3B
|
FRAME RAIL BRAKE TUBE KIT FOR THE LATE CJ-2A, THE CJ-3A AND EARLY CJ-3B.
|
CJ-2A/3A/3B 1948-55
|
$ 38.50 |
| RPL |
BTK-F 3B-L
|
FRAME RAIL BRAKE TUBE KIT FOR THE LATE CJ-3B.
|
CJ-3B 1956-67
|
$ 38.50 |
|
|
| |
 |
TYPICAL FRONT AXLE BRAKE TUBE KIT
|
|
| |
 |
| TYPICAL REAR AXLE BRAKE TUBE KIT |
|
|
|
| |
 |
| TYPICAL FRAME RAIL BRAKE TUBE KIT |
|
|
| |
|
| |
|
| CJ-5/6 COMPLETE BRAKE TUBE KITS |
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
BTK 5/6 E
|
COMPLETE BRAKE TUBE KIT FOR USE WITH 9" BRAKES.
|
CJ-5/6 1955-64
|
$ 96.50
|
| RPL |
BTK 5/6 L
|
COMPLETE BRAKE TUBE KIT FOR USE WITH 10" BRAKES.
|
CJ-5/6 1955-64
|
$ 96.50
|
|
|
| |
|
| TYPICAL CJ-5/6 BRAKE TUBE KIT |
|
|
| |
|
| NOTE- |
The extended length of the CJ-6 requires the use of one 20" brake tube extension P/N 808905 and two brake unions: P/N 123300 on the frame rail. These parts are shown above. |
|
|
|
| |
|
| MILITARY JEEP COMPLETE BRAKE TUBE KITS |
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
BTK MB/GPW E
|
COMPLETE BRAKE TUBE KIT FOR THE EARLY MB/GPW, 1941-42.
|
MB/GPW 1941-42
|
$ 96.50
|
| RPL |
BTK MB/GPW L |
COMPLETE BRAKE TUBE KIT FOR THE LATE MB/GPW, 1943-45.
|
MB/GPW 1943-45
|
$ 96.50
|
| RPL |
BTK M38
|
COMPLETE BRAKE TUBE KIT FOR THE M38.
|
M38
|
$ 96.50
|
| RPL |
BTK M38A1
|
COMPLETE BRAKE TUBE KIT FOR THE M38A1 AND M170.
|
M38A1/M170
|
$ 96.50
|
|
|
| |
|
| NOTE- |
The extended length of the M-170 requires the use of one 20" brake tube extension P/N 808905 and two brake unions: P/N 123300 on the frame rail. These parts are shown above. |
| |
|
|
|
 |
|
TYPICAL MB/GPW BRAKE TUBE KIT
|
|
 |
|
TYPICAL M38/M38A1/M170 BRAKE TUBE KIT
|
|
|
|
| |
|
| |
|
| 24-05B BRAKE HOSES, FLEXIBLE |
|
| |
|
| NOTE- HOSE LENGTHS ARE THE "WORKING LENGTH" OF THE HOSE, NOT THE OVERALL LENGTH WITH THE THREADED ENDS. |
|
|
| |
|
OEM BRAKE HOSES SAE DOT APPROVED
|
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
A-15801 800896
|
HOSE, 11", FRONT CROSSMEMBER
TO FRONT AXLE WITH ONE MALE AND ONE FEMALE END.
|
MB/GPW CJ-2A 3A/3B/5/6 DJ-3A M83/M38A1 FC-150
|
$ 22.50 |
| OEM |
A-15802 800953
|
HOSE, 6", FRONT AXLE TO "S" TUBE
AT FRONT CYLINDER WITH TWO FEMALE ENDS, 2 REQD..
|
MB/GPW CJ-2A 3B/5/6 M38/M38A1
|
$ 18.50
|
| OEM |
A-15803 800952
|
HOSE, 15", REAR CROSSMEMBER
TO REAR AXLE. WITH ONE MALE AND ONE FEMALE END.
|
ALL VEHICLES |
$ 28.50 |
| OEM |
645544 |
HOSE, 15", FRAME TO FRONT
CYLINDER, WITH ONE MALE AND ONE FEMALE END.
|
VJ/SW/SD/PU |
$ 20.00 |
| OEM |
914455 |
HOSE, 20", FRAME TO FRONT WHEEL CYLINDER, WITH ONE MALE AND ONE FEMALE END.
|
FC-150 W/ 57" TREAD FC-170 |
$ 20.00 |
| OEM |
937347 |
HOSE, 10" FRAME TO "Z" TUBE AT FRONT CYLINDER WITH TWO FEMALE ENDS.
|
LATE CJ-5/6 |
$ 18.50 |
| OEM |
7059147 |
HOSE, 14", FRONT CYLINDER
WITH TWO FEMALE ENDS.
|
M151 ALL MODELS
|
$ 26.50 |
| OEM |
8359976 |
HOSE, 10", REAR CYLINDER, WITH ONE MALE AND ONE FEMALE END.
|
M151 ALL MODELS
|
$ 26.50 |
|
|
| |
 |
A-15801/800896
|
$ 17.50 |
|
| |
 |
| A-15802/800953 |
$ 18.50 |
|
|
|
| |
|
| A-15803/800952 |
$ 20.00 |
|
|
| |
|

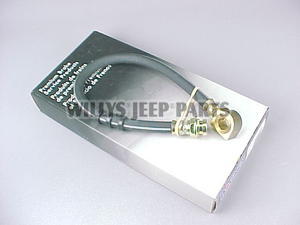

REPLACEMENT BRAKE HOSES SAE DOT APPROVED
|
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-15801 800896-R
|
HOSE, 11", FRONT CROSSMEMBER
TO FRONT AXLE, WITH ONE MALE AND ONE FEMALE END.
|
MB/GPW/CJ-2A/3A 3B/5/6/DJ-3A M38/M38A1 FC-150
|
$ 12.50 |
| RPL |
A-15802 800953-R
|
HOSE, 6", FRONT AXLE TO "S" TUBE AT FRONT CYLINDER, WITH TWO FEMALE ENDS, 2 REQD.
|
MB/GPW CJ-2A/3A3B/5/6 M38/M38A1 |
$ 10.50 EA.
|
| RPL |
A-15803 800952-R
|
HOSE, 15", REAR CROSSMEMBER
TO REAR AXLE. FRAME TO FRONT
CYLINDER ON VJ/2WD SW/SD, WITH ONE MALE AND ONE FEMALE END.
|
ALL VEHICLES |
$ 18.50 |
| RPL |
645544-R |
HOSE, 15", FRAME TO FRONT
CYLINDER, WITH ONE MALE AND ONE FEMALE END.
|
VJ/SW/SD/PU |
$ 18.50
|
| RPL |
914455-R |
HOSE, 20", FRAME TO FRONT
WHEEL. CYLINDER, WITH ONE MALE AND ONE FEMALE END.
|
FC-150 W/57" THREAD/FC-170
|
$ 18.50
|
| RPL |
937347-R |
HOSE, 10", FRAME TO "Z" TUBE AT FRONT CYLINDER WITH TWO FEMALE ENDS.
|
LATE CJ-5/6
|
$ 12.50
|
| RPL |
BH-14 |
HOSE, 14", WITH ONE MALE AND ONE FEMALE END.
|
VARIOUS APPLICATIONS
|
$ 10.50
|
|
|
| |
|
| |
|
| 24-05C BRAKE TUBE AND HOSE PARTS |
|
| |
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
OEM
|
44-T-5080-25 |
BRAKE LINE, SAE DOT APPROVED, STEEL TUBING, 3/16" O.D., 25 FOOT ROLL.
|
ALL VEHICLES |
$ 42.50 |
OEM
|
384710 |
NUT, INVERTED FLARE TUBE, 3/8" HEX HEAD, FOR 3/16" TUBE, 3/8" LONG, GRADE 8 YELLOW ZINC PLATED, SAE DOT APPROVED.
|
ALL VEHICLES |
$ 1.75 EA.
|
OEM
|
384710-L |
NUT, INVERTED FLARE TUBE, 3/8" HEX HEAD, FOR 3/16" TUBE, 5/8" LONG, GRADE 8 YELLOW ZINC PLATED, SAE DOT APPROVED, FOR USE WITH DEEPER WHEEL CYLINDERS.
|
ALL VEHICLES |
$ 2.25 EA.
|
OEM
|
637432 |
TEE, 3 WAY, AXLE BRAKE TUBE TO AXLE.
|
ALL VEHICLES |
$ 7.50 |
NOS
|
637426 NOS
|

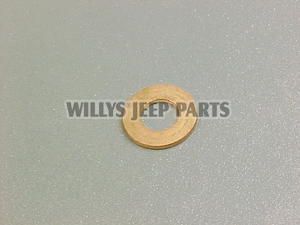

GASKET, COPPER, CRUSH TYPE, BRAKE HOSE.
NOTE-THESE GASKETS ARE FOR ONE TIME USE ONLY!
|
ALL VEHICLES |
$ 1.75 EA.
|
OEM
|
637427-S |
CLIP, SPRING LOCK, "U" TYPE BRAKE, HOSE TO BRACKET, 1 1/8" LONG.
|
ALL VEHICLES |
$ 1.75
|
| OEM |
637427-L |
CLIP, SPRING LOCK, "U" TYPE BRAKE, HOSE TO BRACKET, 1 1/2" LONG.
|
ALL VEHICLES |
$ 1.75 |
| T/O |
A-1457
802298 |
GUARD, FRONT HOSE, MOUNTS ON TOP OF KING PIN CAP.
|
ALL 1/4-TONS |
$ 45.00 |
| T/O |
GPW 2096 |
GUARD, FRONT HOSE, MOUNTS ON TOP OF KING PIN CAP, STAMPED WITH "GPW" AND "F" SCRIP.
|
ALL 1/4-TONS |
$65.00 |
OEM
|
A-1515 53884
|
CLAMP, BRAKE TUBE, MODEL 25 AND 27 FRONT AXLE, MODEL 23 AND 27 REAR AXLE, FOR 2 1/4" DIAMETER AXLE TUBES.
|
ALL 1/4-TONS
|
$ 6.50
|
OEM
|
640941
|
CLAMP, BRAKE TUBE, REAR AXLE TUBE, MODEL 41 AND 44 REAR AXLES AND MODEL 44 FRONT AXLE, FOR 2 1/2" DIAMETER AXLE TUBES.
|
ALL VEHICLES
|
$ 6.50
|
OEM
|
A-5449
|
CLIP, BRAKE TUBE 1/4".
|
ALL VEHICLES |
$ 0.75 EA.
|
|
|
| |
|
 |
| 384710 |
$ 2.50 EA.
|
|
 |
| 637432 |
$ 7.50 |
|
|
|
| |
|
 |
| 637426-NOS |
$ 1.75 EA.
|
|
 |
| 637427-S |
$ 1.75 |
|
|
|
| |
|
 |
| 637427-L |
$ 1.75 |
|
 |
| A-1457/802298 |
$ 45.00 |
|
|
|
| |
|
 |
| GPW 2096 |
$ 65.00 |
|
 |
| A-1515/53884 |
$ 6.50 |
|
|
|
| |
|
 |
| 640941 |
$ 6.50 |
|
 |
| A-5449 |
$ .0.75 EA. |
|
|
|
| |
|
| |
|
