24-02E TRANSFER CASE MOUNTED HAND BRAKE PARTS
24-02E  TRANSFER CASE MOUNTED HAND BRAKE PARTS

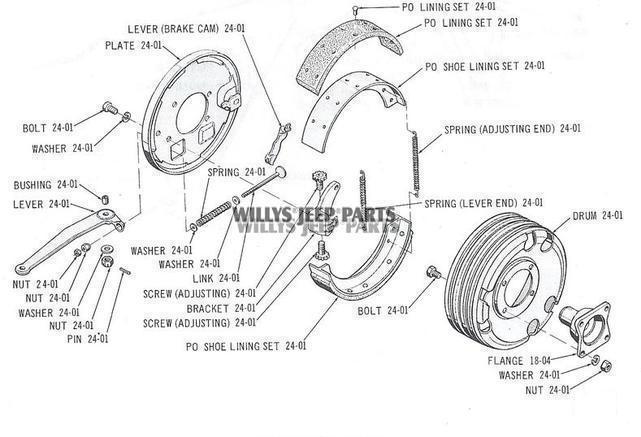

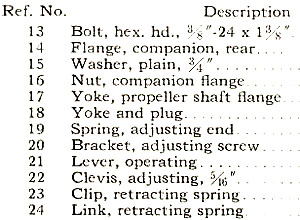

TYPICAL TRANSFER CASE MOUNTED HAND BRAKE SYSTEM


TRANSFER CASE BRAKE PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

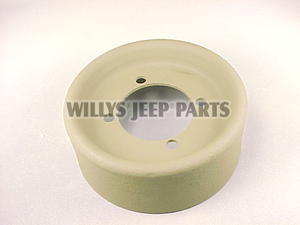

T/O A-1002



 DRUM, HAND BRAKE, 6" DIA.

 MB/GPW $ 68.50

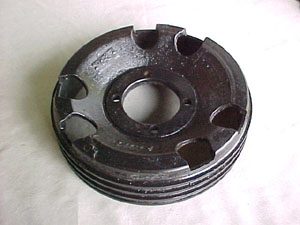

R/B A-9332 7371010 R/B



 DRUM, EMERGENCY BRAKE,
 8 1/2" DIA., HEAVY DUTY USA MADE STEEL.

    MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU

$ 88.50
RPL
A-9332-R



DRUM, EMERGENCY BRAKE,
 8 1/2" DIA.



    MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU

$ 84.50

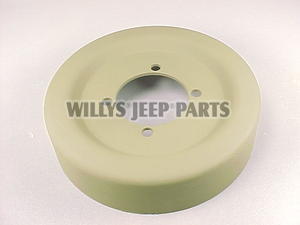

T/O 806026



DRUM, HAND BRAKE, 7 1/2" DIA.

 M38A1 $ 68.50

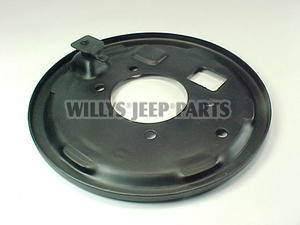

T/O 643454 7377751



BACKING PLATE, EMERGENCY
 BRAKE.

    MB/GPW      CJ-2A/3A/3B/5/6/M38
   FC-150/170      SW/SD/PU
$ 68.50
OEM A-10052 7539155



GASKET, BACKING PLATE TO TRANSFER BEARING CAP.

       MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 3.50

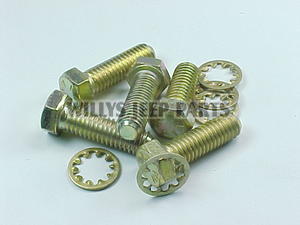

OEM A-9300-K



BOLT KIT, BACKING PLATE TO TRANSFER BEARING CAP.

       MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 7.50

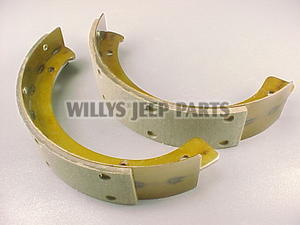

RPL 643055-R 7377752



 SHOE AND LINING SET,
 EMERGENCY BRAKE.



        MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 37.50

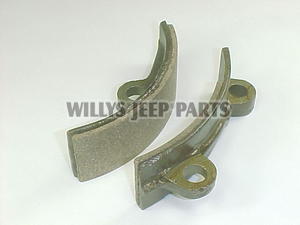

RPL 807060-R 9329628



SHOE AND LINING SET, EMERGENCY BRAKE, COMPOSED OF INNER AND OUTER SHOES WITH BONDED LININGS.



      M38A1/M170
$ 48.50

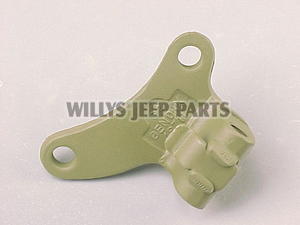

T/O A-10330 7377753



 BRACKET, ADJUSTING SCREW.



         MB/GPW            CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 38.50

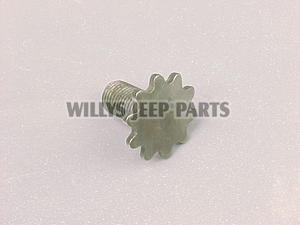

T/O A-10331 7377754



 SCREW, SHOE ADJUST, L/H THREAD.

         MB/GPW           CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 22.50

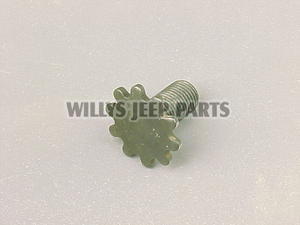

T/O A-10332 6264302



 SCREW, SHOE ADJUST, R/H THREAD.

    MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 22.50

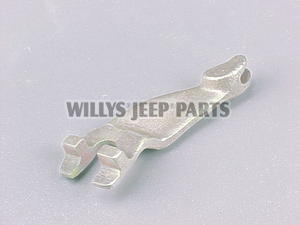

NOS A-10333 6264303 NOS



 LEVER, BRAKE CAM.

    MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 52.50

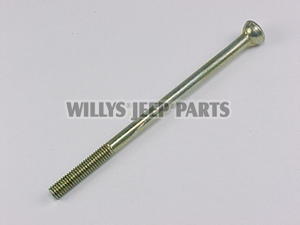

NOS A-10334 7377755 NOS



LINK, BRAKE OPERATING LEVER.

     MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 22.50

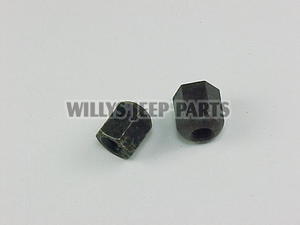

NOS
A-10335 7377756 NOS



NUT, SPECIAL, ACORN TYPE, ADJUSTING, OPERATING LEVER LINK.

    MB/GPW        CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 4.50

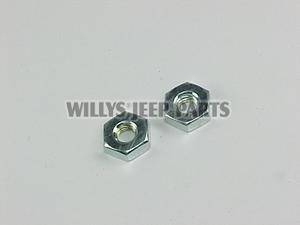

OEM A-304426 53379



NUT, JAM, OPERATING LEVER LINK.

    MB/GPW      CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 1.50

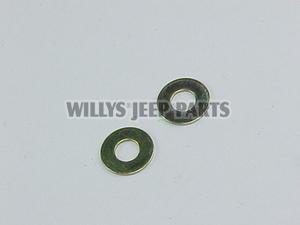

OEM A-304427 53538



WASHER, SPECIAL, CAM LEVER RETAINING SPRING SEAT, 2 REQD.

       MB/GPW          CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 1.00 EA.

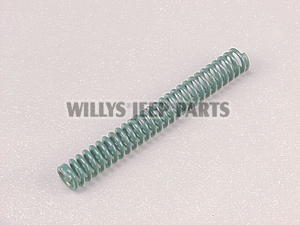

OEM A-10336 7377757



SPRING, BRAKE OPERATING
 LEVER SPACER.

    MB/GPW         CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 10.50

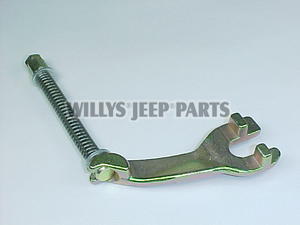

RPL
A-10333-K



KIT, BRAKE LEVER CAM, INCLUDES THE LEVER, LINK, ACORN NUT, JAM NUT, SPRING AND SPECIAL WASHER, ASSEMBLED AND READY TO INSTALL.



       MB/GPW         CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 38.50
RPL

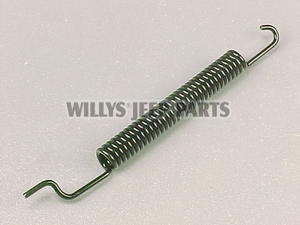

A-10337 7377758-R



SPRING, RETURN, BRAKE SHOE,
 LEVER END.

       MB/GPW         CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 3.25
NOS A-10337 7377758



SPRING, RETURN, BRAKE SHOE,  LEVER END.

         MB/GPW         CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 10.50

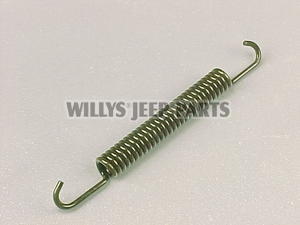

RPL A-10338 7377759-R



 SPRING, RETURN, BRAKE SHOE,
 ADJUSTING END.

         MB/GPW         CJ-2A/3A/3B/5/6/M38
FC-150/170     SW/SD/PU
$ 3.75
NOS 8329625 NOS



SPRING, OPERATING LEVER ROD.

 M38A1 $ 10.50
T/O 116714



FLANGE, COMPANION, REAR.

       ALL VEHICLES $ 42.50
RPL 116714-R



FLANGE, COMPANION, REAR.

 ALL VEHICLES $ 48.50

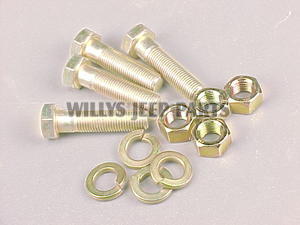

OEM A-6084-K



BOLT KIT, HAND BRAKE DRUM TO COMPANION FLANGE.

 ALL VEHICLES $ 6.50
OEM A-958



OIL SEAL, OUTPUT SHAFT.

 ALL VEHICLES $ 24.50
RPL A-1134-R



GASKET, OUTPUT SHAFT BEARING OIL SEAL.

 ALL VEHICLES $ 1.75


  A-1002

$ 68.50

    A-9332/7371010-R/B

$ 88.50




  806026

$ 68.50

    643454/7377751

$ 68.50



A-10052/7539155 $ 3.50
807060/8329628 $ 48.50


  643055/7377752

$ 37.50

    A-10330/7377753

$ 38.50



A-10331/7377754 $ 22.50
A-10332/6264302 $ 22.50


  A-10333/6264303-NOS

$ 52.50

    A-10334/7377755-NOS

$ 22.50



A-10335/7377756-NOS $ 4.50 EA.
A-304426/53379 $ 1.50 EA.

A-304427/53538

$ 1.00 EA.

A-10336/7377757 $ 10.50


A-10333-K $ 38.50

A-10337/7377758-R $ 3.25


  A-10338/7377759-R $ 3.75
    8329625-NOS

$ 10.50




A-1105/116714 $ 48.50
A-6084-K $ 6.50
