15-19  TRAILER WIRING
15-19A  TRAILER INTERVEHICULAR CABLES

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

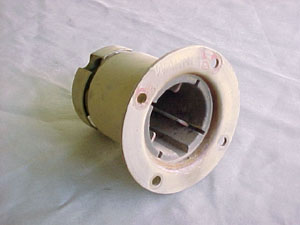

NOS A-6387



 COUPLING SOCKET AND
 CABLE ASSEMBLY.

 MB/GPW/CJ-2A/3A WITH MB-T/T3 AND CIVILIAN TRAILERS $ 225.00
OEM 8722864



 CABLE, INTERVEHICULAR, 80"
 LONG, ELECTRICAL POWER WITH   CONNECTOR PLUG ON ONE END.

 M100/M115/M367
 MILITARY TRAILERS
$ 175.00
OEM 8722865



 CABLE, INTERVEHICULAR, 70"
 LONG, ELECTRICAL POWER WITH   CONNECTOR PLUG ON ONE END.

 VARIOUS MILITARY
 TRAILERS
$ 168.50
OEM 8683516



CABLE, INTERVEHICULAR, 90"
 LONG, ELECTRICAL POWER WITH CONNECTOR PLUG ON ONE END.

 M416/M416A1
 MILITARY TRAILERS
$ 175.00
OEM 10891263-1



 CABLE, INTERVEHICULAR, 95"
 LONG, ELECTRICAL POWER WITH CONNECTOR PLUG ON ONE END.

 VARIOUS MILITARY
 TRAILERS
$ 175.00
OEM 7728811



 CABLE, INTERVEHICULAR, 72"
 LONG, ELECTRICAL POWER WITH CONNECTOR PLUGS ON BOTH ENDS.

 VARIOUS MILITARY
 TRAILERS AND
 VEHICLES
$ 277.50
OEM 7728814



 CABLE, INTERVEHICULAR, 144"
 LONG, ELECTRICAL POWER WITH CONNECTOR PLUGS ON BOTH ENDS.

 VARIOUS MILITARY
 TRAILERS AND
 VEHICLES
$ 277.50


  A-6387

$ 225.00

    8722864

$ 175.00



15-19B  WATERPROOF WIRE CONNECTOR CLIPS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 8722870



 CLIP ASSEMBLY, WIRING HARNESS 3 WIRES.

 M-SERIES VEHICLES
 AND TRAILERS
NLA
OEM 8747908



CLIP ASSEMBLY, WIRING HARNESS 3 WIRES.

 M-SERIES VEHICLES
 AND TRAILERS
NLA
OEM 8747908-1



CLIP ASSEMBLY, WIRING HARNESS 4 WIRES.

 M-SERIES VEHICLES
 AND TRAILERS
NLA


  8722870

NLA

    8747908

NLA




8747908-1

NLA

        NOTE- THESE CLIPS ARE USED TO HOLD MILITARY STANDARD (MS) WATERPROOF WIRE
                     CONNECTORS IN PLACE. THEY ARE USED ON ALL M-SERIES VEHICLES AND TRAILERS.
        PLEASE REFER TO SUB-GROUP 15-08 FOR MILITARY STANDARD (MS) WATERPROOF WIRE
        CONNECTORS.
15-19C  EARLY TRAILER PLUG AND SOCKET
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
T/O A-6568



 SOCKET, TRAILER ELECTRICAL
 COUPLING.

 MB/GPW/CJ-2A/3A $ 175.00
NOS A-6587



 COVER, SOCKET.

 MB/GPW/CJ-2A/3A $ 45.00
NOS A-6558



 COUPLING SOCKET CABLE
 PLUG.

 MB/GPW/CJ-2A/3A WITH MB-T/T3 AND CIVILIAN TRAILERS $ 175.00


  A-6568

$ 175.00

    A-6587

$ 45.00




A-6558

$ 175.00


15-19D  LATE TRAILER PLUG AND RECEPTACLE
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 8376208
MS75021-1



 RECEPTACLE ASSY, TRAILER
 ELECTRICAL COUPLING WITH
 PIN CONNECTORS.

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 68.50
OEM 8376209
MS75021-2



 RECEPTACLE ASSY, TRAILER
 ELECTRICAL COUPLING WITH
 SOCKET CONNECTORS.

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 68.50
OEM 7716634



COUPLING NUT FOR TRAILER
 RECEPTACLE.

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 4.50
OEM 7723309
801193



 COUPLING NUT FOR TRAILER
 RECEPTACLE.

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 4.50
OEM 7722333
801201



 BUSHING, RUBBER, TRAILER
 RECEPTACLE, 12 HOLE.

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 3.50
OEM MS3420-16



 BUSHING, CONNECTOR
 RUBBER.

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 4.50
OEM 800391
7731428



 COVER, RECEPTACLE (929636).

 M38/M38A1/M151 AND
 OTHER M-SERIES
 VEHICLES
$ 28.50
OEM 8724316
MS75020-1



 CONNECTOR, CABLE PLUG
 WITH PIN CONNECTORS.

 M38/M38A1/M151 WITH M100/M416 TRAILERS $ 68.50
OEM MS75020-2



 CONNECTOR, CABLE PLUG
 WITH SOCKET CONNECTORS.

 M38/M38A1/M151 WITH M100/M416 TRAILERS $ 68.50


  8376208/MS75021-1

$ 68.50

    8376209/MS75021-2

$ 68.50




  7716634

$ 4.50

    7723309/801193

$ 4.50




  7722333/801201

$ 3.50

    MS3420-16

$ 4.50




  800391/7731428/929636

$ 28.50

    8724316/MS75020-1

$ 68.50

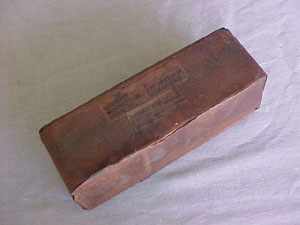

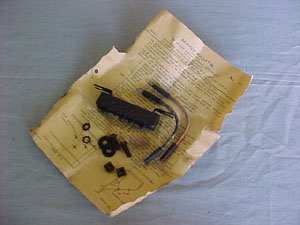

15-19E  TRAILER LIGHT RESISTOR KIT

A-215722 TRAILER LIGHT RESISTOR KIT 12-VOLT TO 6-VOLT

Our A-215722 Trailer Light Resistor Kit is a lIttle gem left over from the big one in 1942. This kit was used on vehicles that were equipped with 12-volt electrical systems to allow them to tow trailers having 6-volt equipment to be attached to the vehicle having 12-volt equipment. This kit is ideal for those who have vehicles that have been upgraded to 12-volts and still wish to use the original functional 6-volt lighting. Although the kit was origianlly designed for trailer lights, it can also be used for the vehicle tail lights and front lights to include head lights, blackout marker lights and blackout drive lights that may only be available as 6-volt units. The kits include the resistor, wiring, mounting hardware and detailed instructions

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

NOS

A-215722 NOS



 TRAILER LIGHT RESISTOR KIT
 ALLOWING 12-VOLT VEHICLES TO TOW 6-VOLT EQUIPMENT.

      MB/GPW      ALL WWII MILITARY VEHICLES

$ 86.50


A-215722
$ 86.50


PLEASE REFER TO SUB-GROUP 15-11 FOR TRAILER TAIL LIGHTS AND REFLECTORS

PLEASE REFER TO SUB-GROUP 15-15 FOR TRAILER LIGHT BULBS
