23-02  STEERING TIE RODS, SOCKETS AND TUBES

23-02A STEERING TIE ROD SOCKETS AND DUST COVERS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 920535



SOCKET, TIE ROD END, L/H THREAD 11/16" DIA, USA MOOG  BRAND.

 CJ-2A/3A/3B/5/6/DJ-3A MB/GPW/M38 SW/SD/PU FC-150/FC-170

$ 45.50
OEM
921317



SOCKET, TIE ROD END, R/H THREAD 11/16" DIA, USA MOOG BRAND.

 CJ-2A/3A/3B/5/6/DJ-3A MB/GPW/M38 SW/SD/PU FC-150/FC-170 $ 45.50
RPL 920535-R



SOCKET, TIE ROD END, L/H THREAD, 11/16" DIA.



CJ-2A/3A/3B/5/6/DJ-3A MB/GPW/M38 SW/SD/PU FC-150/FC-170 $ 14.50
RPL 921317-R



SOCKET, TIE ROD END, R/H THREAD, 11/16" DIA.



CJ-2A/3A/3B/5/6/DJ-3A MB/GPW/M38 SW/SD/PU FC-150/FC-170 $ 14.50
RPL 640178-R



 SOCKET, TIE ROD CENTER, L/H THREAD, 11/16" DIA.



CJ-2A/3A/3B/5/6 DJ-3A/FC-150

$ 26.50
RPL 809190-R



 SOCKET, TIE ROD, L/H THREAD, 3/4" DIA.



 M38/M38A1 $ 16.50
RPL 809191-R



SOCKET, TIE ROD, R/H THREAD, 3/4" DIA.



 M38/M38A1 $ 16.50
RPL 809189-R



SOCKET, TIE ROD, CENTER, L/H THREAD, 3/4" DIA.



 M38/M38A1 $ 28.50
RPL 920536-R



SOCKET, TIE ROD END, LEFT, LEFT HAND THREAD, 11/16" DIA.



         FC-170           JEEPSTER COMMANDO

$ 42.50
OEM 642386



SOCKET, TIE ROD END, R/H THREAD 11/16"DIA., USA MOOG BRAND.

2WD VJ/SW
$45.50
RPL 642386-R



SOCKET, TIE ROD END, R/H THREAD 11/16"DIA.

2WD VJ/SW $ 14.50
OEM 10558



NUT, HEX, SLOTTED, TIE ROD SOCKET STUD.

 ALL VEHICLES $ 0.95 EA.
OEM A-1642



PIN, COTTER, TIE ROD SOCKET STUD NUT.

 ALL VEHICLES $ 0.25 EA.
RPL A-844 645134



  COVER, DUST, TIE ROD SOCKET RUBBER.



 ALL VEHICLES $ 1.85
OEM A-844P



COVER, DUST, TIE ROD SOCKET RUBBER, POLYURETHANE  PACKAGE OF TWO.

 ALL VEHICLES $ 5.95


920535 $ 45.50

921317 $ 45.50








  920535-R

$ 14.50

    921317-R

$ 14.50



640178-R $26.50
809190-R $ 16.50

809191-R $ 16.50
809189-R $ 28.50

920536-R $ 42.50


642386

$ 45.50

642386-R $ 14.50

10558 $ 0.95 EA.
A-1642 $ 0.25 EA.

A-844/645134 $ 1.85
A-844P $ 5.95


23-02B  STEERING TIE ROD TUBES AND CLAMPS

             TIE ROD TUBES

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
T/O A-1709



 TIE ROD TUBE, LEFT, 14 3/4" LONG, FOR USE WITH 11/16" DIA. SOCKETS.

 MB/GPW $ 62.50
T/O A-1705



TIE ROD TUBE, RIGHT, 21 3/4" LONG, FOR USE WITH 11/16" DIA. SOCKETS.

 MB/GPW $ 62.50
RPL 642058-R



TIE ROD TUBE, LEFT, 17 3/8" LONG FOR USE WITH 11/16" DIA. SOCKETS.



CJ-2A/3A/3B/5/6 FC-150/DJ-3A/M38 $ 26.50
RPL 642059-R



TIE ROD TUBE, RIGHT, 18 3/4" LONG, FOR USE WITH 11/16" DIA. SOCKETS.



CJ-2A/3A/3B/5/6 FC-150/DJ-3A/M38 $ 26.50
T/O 806370



TIE ROD TUBE, LEFT, 17 1/4" LONG, FOR USE WITH 3/4" DIA. SOCKETS.

 M38/M38A1 $ 62.50
T/O 806369



TIE ROD TUBE, RIGHT, 19 1/8" LONG, FOR USE WITH 3/4" DIA. SOCKETS.

 M38/M38A1 $ 62.50

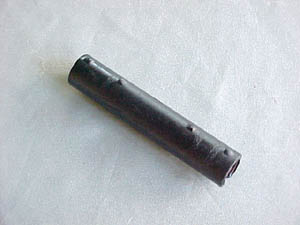

T/O 645217



 TIE ROD SLEEVE.

 VJ/2WD SW $ 22.50

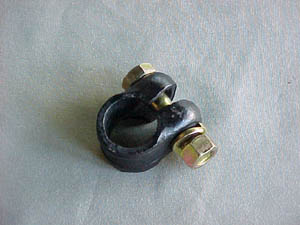

             TIE ROD CLAMPS AND BOLTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
T/O A-1707



CLAMP, TIE ROD, FOR USE WITH  11/16" DIA. SOCKETS, INCLUDES GRADE 8 BOLT, NUT AND LOCKWASHER.

 MB/GPW FC-170
$ 16.50
T/O A-837



CLAMP, TIE ROD, FOR USE WITH  11/16" DIA. SOCKETS, INCLUDES GRADE 8 BOLT, NUT AND LOCKWASHER.

ALL CJ'S DJ-3A/M38 VJ/SW/SD/PU FC-150/170
$ 12.50
RPL A-837-R



CLAMP, TIE ROD, FOR USE WITH  11/16" DIA. SOCKETS, OFF SHORE STEEL, NO-GRADE HARDWARE.



ALL CJ'S DJ-3A/M38 VJ/SW/SD/PU FC-150/170 $ 4.50
T/O 806746



CLAMP, TIE ROD, FOR USE WITH  3/4" DIA. SOCKETS, INCLUDES GRADE 8 BOLT, NUT AND LOCKWASHER.

M38/M38A1
$ 16.50
OEM A-1707



BOLT, TIE ROD CLAMP, GRADE 8, FOR USE WITH A-1707 CLAMP, INCLUDES NUT AND LOCKWASHER.

MB/GPW FC-170
$ 2.25 EA.
OEM 645218



BOLT, TIE ROD CLAMP, GRADE 8, FOR USE WITH A-837 CLAMP, INCLUDES NUT AND LOCKWASHER.

ALL CJ'S DJ-3A/M38 VJ/SW/SD/PU FC-150/170 $ 1.75 EA.
OEM 181673



BOLT, TIE ROD CLAMP, GRADE 8, FOR USE WITH 806746 CLAMP, INCLUDES NUT AND LOCKWASHER.

M38/M38A1 $ 2.75 EA.

A-1706 $ 16.50
A-837 $ 12.50

A-837-R $ 4.50
806746 $ 16.50


A-1707 $ 2.25

645218 $ 1.75


181673

$ 2.75

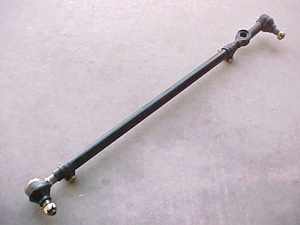

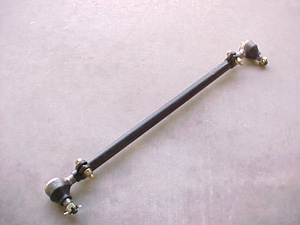

23-02C  STEERING TIE ROD ASSEMBLIES
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 642056-R



 STEERING TIE ROD ASSEMBLY, LEFT, INCLUDES A 17 3/8" TIE ROD TUBE, ONE 920535 TIE ROD SOCKET, ONE 921317 TIE ROD SOCKET, TWO A-837 TIE ROD CLAMPS AND ALL ATTACHING HARDWARE.



 CJ-2A/3A/3B/5/6 DJ-3A/FC-150
 M38/M38A1
$ 64.50
RPL 642057-R



 STEERING TIE ROD ASSEMBLY, RIGHT, INCLUDES A 18 3/4" TIE ROD TUBE, ONE 921317 TIE ROD SOCKET, ONE 640178 TIE ROD SOCKET, TWO A-837  TIE ROD CLAMPS AND ALL ATTACHING HARDWARE.



 CJ-2A/3A/3B/5/6 DJ-3A/FC-150
 M38/M38A1
$ 64.50


  642056-R

$ 64.50

    642057-R

$ 64.50
