15-11A CIVILIAN JEEP VEHICLE  TAIL LIGHTS

    15-11A-1  "NACO" TYPE TAIL AND STOP LIGHTS


"NACO" TAIL AND STOP LIGHT

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 646594



 TAIL LIGHT AND STOP, ASSEMBLY WITH CHROME PLATED DOOR, LEFT SIDE, WITH LICENSE WINDOW, STIMSONITE NACO RED GLASS LENS, 3 5/8" O.D.



 CJ-2A/3A
 VJ/SW/SD/PU
$ 52.50
RPL 646594-RT



 TAIL LIGHT AND STOP, ASSEMBLY WITH CHROME PLATED DOOR, RIGHT SIDE, STIMSONITE NACO RED GLASS LENS, 3 5/8" O.D.



 CJ-2A/3A
 VJ/SW/SD/PU
$ 52.50

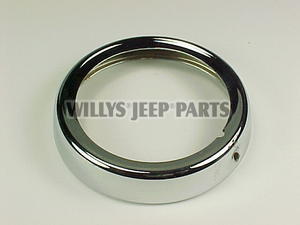

NOS  643619 NOS



DOOR, TAIL AND STOP LIGHT (CHROME PLATED).

 CJ-2A/3A
 VJ/SW/SD/PU
$ 48.50

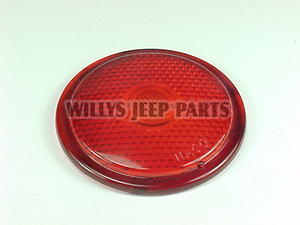

NOS  642232-A  NOS



LENS, TAIL AND STOP LIGHT, MARKED "STIMSONITE NACO", RED GLASS.

 CJ-2A/3A
 VJ/SW/SD/PU
$ 48.50
NOS  642232-B  NOS



LENS, TAIL AND STOP LIGHT, MARKED "TIGER-EY DO-RAY LAMP CO.", RED GLASS.

 CJ-2A/3A
 VJ/SW/SD/PU
$ 36.50

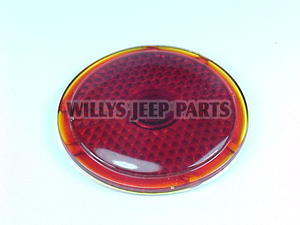

NOS  642232-C  NOS



LENS, TAIL AND STOP LIGHT, MARKED "GB-206 G42232", GLO-BRIGHT, RED GLASS.

 CJ-2A/3A
 VJ/SW/SD/PU
$ 36.50
NOS  640879  NOS

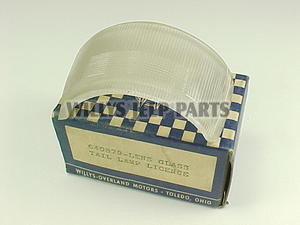

WINDOW, LICENSE PLATE LIGHT, CLEAR GLASS.

 CJ-2A/3A
 VJ/SW/SD/PU
NLA
OEM 53729



SCREW, TAIL AND STOP LIGHT DOOR AND WINDOW,1 FOR DOOR 2 FOR WINDOW. STAINLESS STEEL.

 CJ-2A/3A
 VJ/SW/SD/PU
$ 0.75 EA.

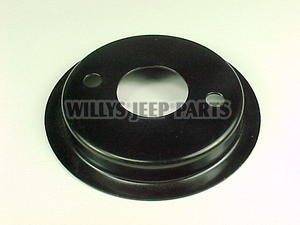

RPL 669879



BRACKET, TAIL AND STOP LIGHT (MOUNTING BASE FOR TAIL LIGHT).



 CJ-2A/3A
 VJ/SW/SD/PU
$ 12.50
OEM No.1158



LAMP, 6-8 VOLTS, 21-3 C.P., TAIL AND STOP LIGHTS.

 CJ-2A/3A
 VJ/SW/SD/PU
$ 3.25
OEM No.1134



LAMP, 12 VOLTS, 34-4 C.P., TAIL AND STOP LIGHTS.

 CJ-2A/3A
 VJ/SW/SD/PU
$ 3.25

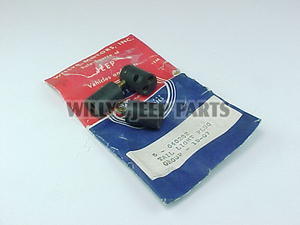

NOS 640282  NOS



 PLUG, CONNECTING, 2 WIRE, TAIL AND STOP LAMP, WITH SCREW-IN WIRE CONNECTORS, FOR USE WITH OEM "NACO" TAIL LIGHTS.

 CJ-2A/3A
 VJ/SW/SD/PU
NLA


  646594

$ 52.50

    646594-RT

$ 52.50



643619-NOS $ 48.50
642232-A-NOS $ 48.50

642232-B-NOS $ 36.50
642232-C- NOS
$ 36.50


  640879-NOS

NLA

    669879

$ 12.50



640282-NOS NLA

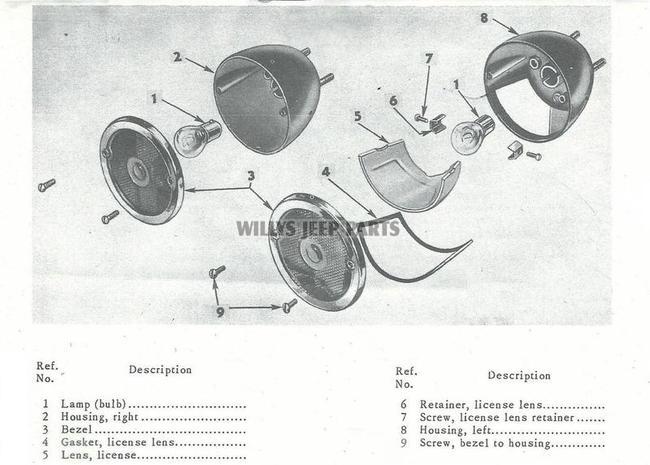

    15-11A-2  "ALA" TYPE TAIL AND STOP LIGHTS


"ALA" TAIL AND STOP LIGHTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

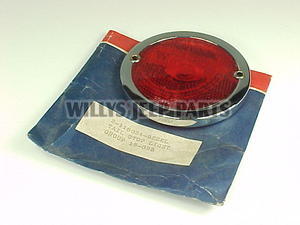

NOS 118024-A NOS



 BEZEL, TAIL AND STOP LIGHT, ASSEMBLY (CHROME PLATED). RED PLASTIC LENS, 3 5/8" O.D.

 CJ-3B/5/6    DJ-3A
  VJ/SW/SD/PU
$ 110.00

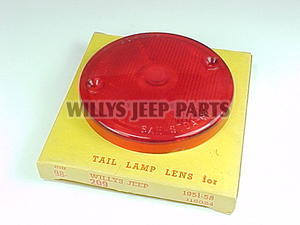

NOS 118024-B NOS



LENS, TAIL AND STOP LIGHT, MARKED "G.B.-209", GLO-BRIGHT, RED PLASTIC LENS.

  CJ-3B/5/6    DJ-3A
  VJ/SW/SD/PU
$ 32.50

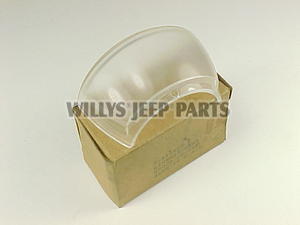

NOS 912415 NOS



LICENSE LENS (PLASTIC).

 CJ-3B/5/6    DJ-3A
  VJ/SW/SD/PU
$ 32.50
RPL 669879



 BRACKET, TAIL AND STOP LIGHT, (MOUNTING BASE FOR TAIL LIGHT).



   CJ-3B/5/6       $ 12.50
OEM No.1158



LAMP, 6-8 VOLTS, 21-3 C.P., TAIL AND STOP LIGHTS.

  CJ-3B/5/6    DJ-3A
  VJ/SW/SD/PU
$ 3.25
OEM No.1157



LAMP, 12 VOLTS, 32-3 C.P., TAIL AND STOP LIGHTS.

  CJ-3B/5/6    DJ-3A
  VJ/SW/SD/PU
$ 3.25

118024-A-NOS $ 110.00
118024-B-NOS $ 32.50

912415-NOS $ 32.50

669879 $ 12.50


    15-11A-3  "HALL" TYPE TAIL LIGHTS


"HALL" TYPE TAIL AND STOP LIGHT

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

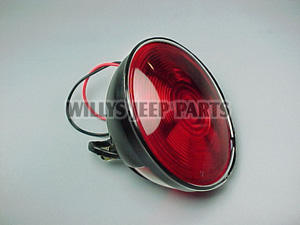

RPL 912227-R



LIGHT, TAIL AND STOP, LEFT, ASSEMBLY, 4 1/2" O.D. WITH LICENSE LIGHT LENS, "HALL TYPE".



 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 42.50
RPL 912243-R



LIGHT, TAIL AND STOP, RIGHT, ASSEMBLY, 4 1/2" O.D., "HALL TYPE".



 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 42.50

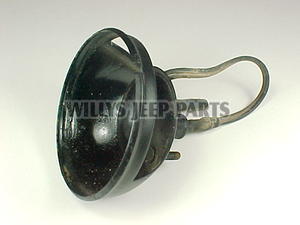

T/O 912230



HOUSING,AND SOCKET, LEFT, ASSEMBLY.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 48.50
T/O 912245

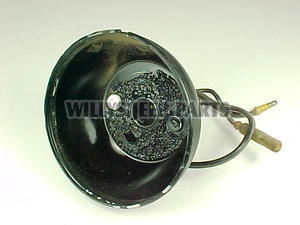

HOUSING,AND SOCKET, RIGHT, ASSEMBLY.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 48.50
RPL 912240-R



LENS, TAIL LIGHT, RED PLASTIC, 4 1/4" DIA.



CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 8.50

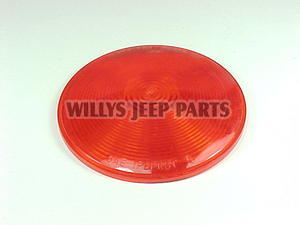

NOS 912240   NOS



LENS, TAIL LIGHT, RED PLASTIC, DO-RAY LAMP CO., 4 1/4" DIA.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 18.50

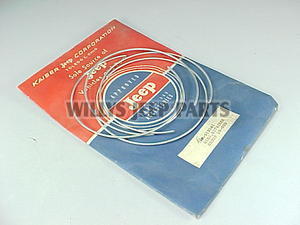

NOS 912241   NOS



RING, RETAINING, TAIL LIGHT LENS.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 4.50

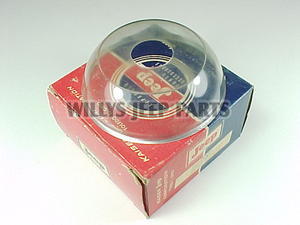

NOS 912238-P  NOS



RETAINER, LENS (PLASTIC), ONE REQUIRED FOR EACH TAIL LIGHT.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 32.50

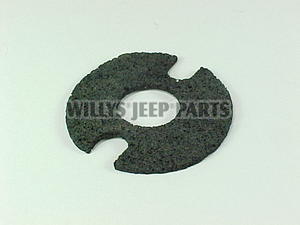

RPL 912237

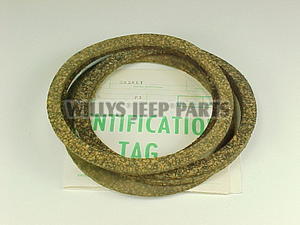

GASKET, HOUSING, BETWEEN HOUSING AND LENS RETAINER.



 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 6.50
NOS 912239  NOS



GASKET, LICENSE LENS, BETWEEN, LENS AND LENS RETAINER.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 12.50
RPL 669879



BRACKET, TAIL AND STOP LIGHT, (MOUNTING BASE FOR TAIL LIGHT).



 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 12.50
OEM No.1154



LAMP, 6-8 VOLTS, 21-3 C.P., TAIL AND STOP LIGHTS.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 3.25
OEM No.1134



LAMP, 12 VOLTS, 34-4 C.P., TAIL AND STOP LIGHTS.

 CJ-3B/5/6  DJ-3A
  FC-150/170 SD/PU
$ 3.25



  912227-R

$ 42.50

    912243-R

$ 42.50




  912230

$ 48.50

    912245

$ 48.50



912240-NOS $ 18.50
912241-NOS $ 4.50 EA.

912238-P-NOS $ 32.50
912237 $ 6.50

912239-NOS $ 12.50 EA.

669879 $ 12.50


    15-11A-4 LATE "SAE" TYPE TAIL LIGHTS (1969-UP)

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

OEM

991414



TAIL AND STOP LIGHT ASSEMBLY, LEFT OR RIGHT.

 LATE CJ-5/6

$ 38.50

OEM

931897



LENS, TAIL LIGHT, RED PLASTIC, 5 3/8" O.D.

 LATE CJ-5/6

$ 8.50

RPL 669879



BRACKET, TAIL AND STOP LIGHT, (MOUNTING BASE FOR TAIL LIGHT).



  LATE CJ-5/6 $ 12.50

OEM

No. 1157



LAMP, 12 VOLTS, 32-3 C.P., TAIL AND STOP LIGHTS.

 LATE CJ-5/6

$ 3.25

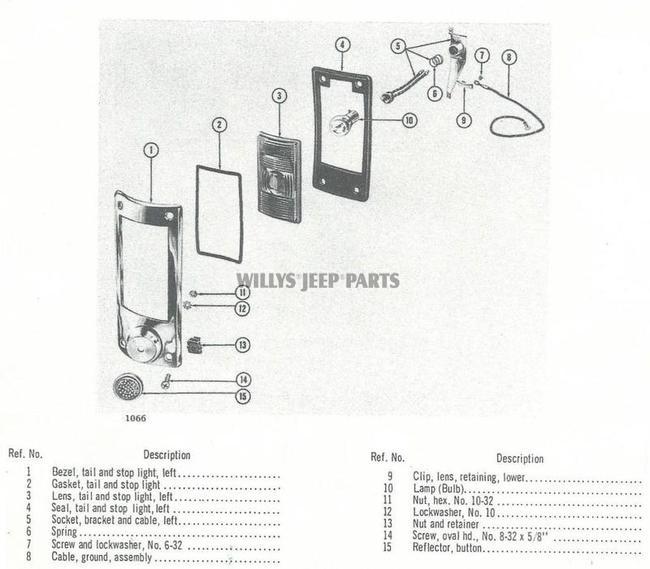

    15-11A-5  AUTO-LITE TAIL LIGHTS FOR THE LATE MODEL UTILITY WAGON AND SEDAN
                     DELIVERY


AUTO-LITE TAIL AND STOP LIGHT

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

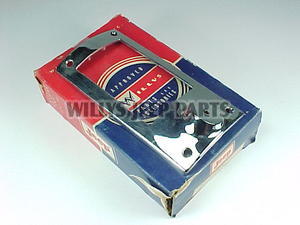

NOS 119573  NOS



BEZEL, TAIL AND STOP LIGHT, LEFT MARKED "CB-19761 LH W PT 916591" AUTO-LITE BRAND.

LATE SW/SD
$ 110.00
RPL 119573-R



BEZEL, TAIL AND STOP LIGHT, LEFT.

 LATE SW/SD $ 52.50

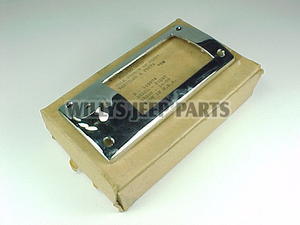

NOS 119574  NOS



BEZEL, TAIL AND STOP LIGHT, RIGHT MARKED "CB-19760 RH" AUTO-LITE BRAND.

  LATE SW/SD $ 110.00
RPL 119574-R



BEZEL, TAIL AND STOP LIGHT, RIGHT.

 LATE SW/SD $ 52.50
NOS 119576 NOS



LENS, TAIL AND STOP LIGHT, RUBY PLASTIC, LEFT, MARKED "CB-19763 LT" ON BACK AND "AL WOD" ON FRONT.

  LATE SW/SD $ 48.50
RPL 119576-R



LENS, TAIL AND STOP LIGHT, RUBY PLASTIC, LEFT.

 LATE SW/SD $ 22.50

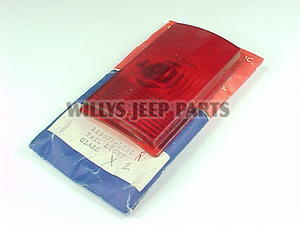

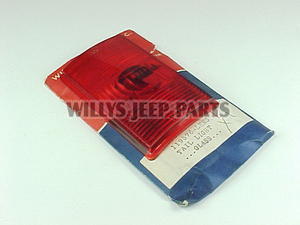

NOS 119577 NOS



LENS, TAIL AND STOP LIGHT, RUBY PLASTIC, RIGHT, MARKED "CB-19762 RT" ON BACK AND "AL WOD" OR "TEACO WOD" ON FRONT.

  LATE SW/SD $ 48.50
RPL 119577-R



LENS, TAIL AND STOP LIGHT, RUBY PLASTIC, RIGHT.

 LATE SW/SD $ 22.50
RPL 119575

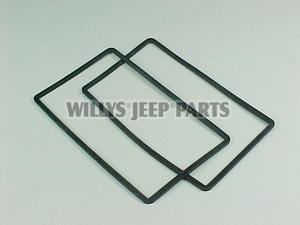

GASKET, TAIL AND STOP LIGHT LENS,  LEFT AND RIGHT.

  LATE SW/SD $ 12.50 PR.

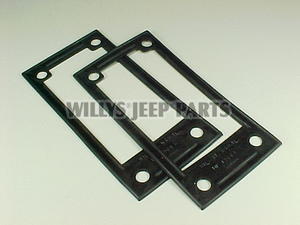

RPL 806981 806982



SEAL, TAIL AND STOP LIGHT TO BODY SIDE PANEL, LEFT AND RIGHT.

 LATE SW/SD $ 22.50 EA.
OEM 179349



SCREW, OVAL HEAD, 3/4", STAINLESS STEEL, TAIL LIGHT BEZEL TO BODY, 8 REQD.

  LATE SW/SD $ .75 EA.

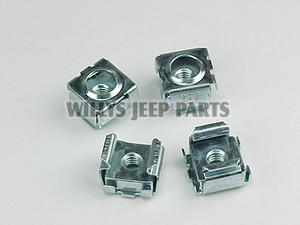

OEM 680513



NUT AND RETAINER (TAIL LAMPS TO BODY PILLAR), 8 REQD.

   LATE SW/SD $ 1.50 EA.
OEM No.1154



LAMP, 6-8 VOLTS, 21-3 C.P., TAIL AND STOP LIGHTS.

   LATE SW/SD $ 3.25
OEM No.1134



LAMP, 12 VOLTS, 34-4 C.P., TAIL AND STOP LIGHTS.

   LATE SW/SD $ 3.25

NOTE:
WE STOCK ALL OF THE INTERNAL PARTS FOR THESE TAIL LIGHTS. CALL FOR PRICING.

119573-NOS $ 110.00
119574-NOS $ 110.00


  119576-NOS

$ 48.50

    119577-NOS

$ 48.50




  119575

$ 12.50 PR.

    806981/2

$ 22.50 EA.



179349 $ 0.75 EA.

680513 $ 1.50 EA.

        15-11A-6   REPLACEMENT TAIL LIGHTS

              3 3/4" DIAMETER TAIL LIGHTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

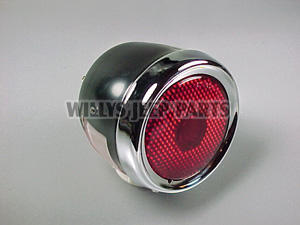

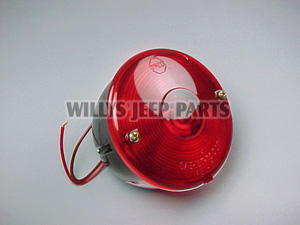

RPL 801157-R



TAIL LIGHT ASSY, LEFT 3 3/4" DIA. WITH LICENSE LIGHT LENS, REPLACEMENT FOR "ALA TYPE" TAIL LIGHT.

ALL VEHICLES
$ 12.95

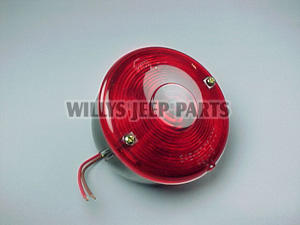

RPL 801158-R



TAIL LIGHT ASSY, RIGHT 3 3/4" DIA., REPLACEMENT FOR "ALA TYPE" TAIL LIGHT.

ALL VEHICLES $ 12.95
RPL 118024-R

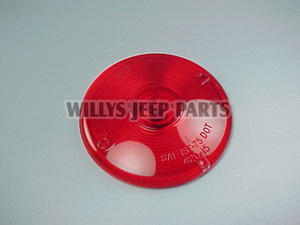

LENS, TAIL LIGHT, LEFT OR RIGHT 3 3/4" DIA., 2 SCREW "ALA" TYPE

ALL VEHICLES $ 3.75
OEM No.1154



LAMP, 6-8 VOLTS, 21-3 C.P., TAIL AND STOP LIGHTS.

ALL VEHICLES $ 3.25
OEM No.1134



LAMP, 12 VOLTS, 34-4 C.P., TAIL AND STOP LIGHTS.

ALL VEHICLES $ 3.25

801157-R $ 12.95
801158-R $ 12.95

118024-R $ 3.75

              4 1/4" DIAMETER TAIL LIGHTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 912227-R



TAIL LIGHT ASSY, LEFT 4 1/4" DIA. WITH LICENSE LIGHT LENS, REPLACEMENT FOR "HALL TYPE" TAIL LIGHT.

ALL VEHICLES
$ 10.50
RPL 912243-R



TAIL LIGHT ASSY, RIGHT 4 1/4" DIA., REPLACEMENT FOR "HALL TYPE" TAIL LIGHT.

ALL VEHICLES $ 10.50
RPL 912240-R



LENS, TAIL LIGHT, LEFT OR TIGHT 4 1/4" DIA., SNAP ON,  "HALL" TYPE

ALL VEHICLES $ 3.75
OEM No.1154



LAMP, 6-8 VOLTS, 21-3 C.P., TAIL AND STOP LIGHTS.

ALL VEHICLES $ 3.25
OEM No.1157



LAMP, 12 VOLTS, 32-3 C.P., TAIL AND STOP LIGHTS.

ALL VEHICLES $ 3.25

912227-R $ 10.50
912243-R $ 10.50

912240-R $ 3.75

        15-11A-7   TAIL LIGHT MOUNTING AND LICENSE PLATE BRACKETS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
T/O 643634



BRACKET, TAIL  LIGHT, RIGHT LICENSE PLATE, LEFT SIDE.

FC-170

UTILITY TRUCKS TRAILERS

NLA

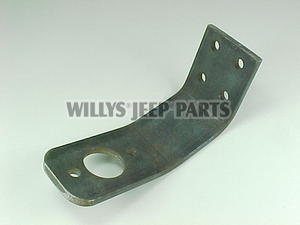

RPL 643636



BRACKET, TAIL LIGHT, MOUNTS ON FRAME, LEFT OR RIGHT.

FC-170

UTILITY TRUCKS TRAILERS

$ 22.50
T/O 664456



BRACKET, TAIL  LIGHT AND LICENSE PLATE, FLIPS UP WHEN TAIL GATE IS DOWN.

EARLY STATION WAGONS
$ 68.50
T/O 664458



BRACKET, TAIL  LIGHT, TAIL GATE HALF.

EARLY STATION WAGONS
$ 68.50

RPL

669879



 BRACKET, TAIL LIGHT MOUNTING BASE, BLACK POWDER COATED STEEL.

ALL VEHICLES

$ 12.50

RPL

643077

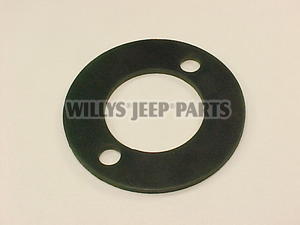

PAD, RUBBER, TAIL LIGHT, HOUSING TO BODY, 2 1/4" CENTER TO CENTER MOUNTING HOLES, 3" O.D.

ALL VEHICLES

$ 4.50

RPL

695080



 BRACKET, TAIL LIGHT AND LICENSE PLATE, LEFT SIDE, FLAT, BLACK POWDER COATED STEEL.

 CJ-2A/3A/3B 5/6/DJ-3A  FC-170  UTILITY TRUCKS

$ 8.75

RPL

991416



 BRACKET, TAIL LIGHT AND LICENSE PLATE, LEFT SIDE OFFSET, BLACK POWDER COATED STEEL.

 CJ-2A/3A/3B 5/6/DJ-3A  FC-170  UTILITY TRUCKS

$ 9.75

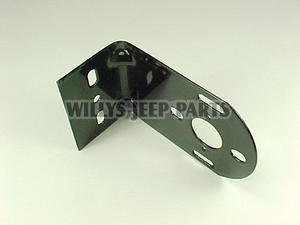

OEM 510-9



BRACKET, TAIL LIGHT MOUNTING, LEFT OR RIGHT, BLACK POWDER COATED STEEL.

FC-170

UTILITY TRUCKS TRAILERS

$ 11.50

RPL

640745



 BRACKET, FRONT LICENSE TAG, BOLTS TO FRONT BUMPER.

ALL 1/4 TONS

NLA

T/O 643614



BRACKET, FRONT LICENSE TAG, BOLTS TO FRONT BUMPER ARM, FOR USE ON VEHICLES WITHOUT FRONT BUMPER GUARD.

ALL UTILITY  VJ/SW/SD/PU
$ 68.50


  643634

NLA

    643636

$ 22.50




  664456

$ 68.50

    664458

$ 68.50




669879 $ 12.50
643077 $ 4.50

695080 $ 8.75
991416 $ 9.75

510-9 $ 11.50
640745 NLA
