20A-06  FRONT AXLE STEERING KNUCKLE, SPINDLE AND KING PIN



20A-06A  FRONT AXLE STEERING KNUCKLES AND PARTS



    OEM REBUILT STEERING KNUCKLES

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

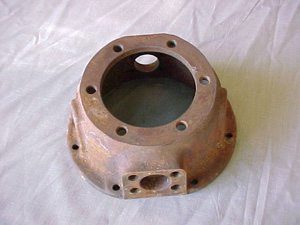

R/B A-812  R/B



STEERING KNUCKLE, LEFT.

 MB/GPW  EARLY CJ-2A $ 86.50

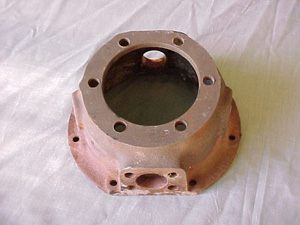

R/B A-811  R/B



STEERING KNUCKLE, RIGHT.

 MB/GPW EARLY CJ-2A $ 86.50

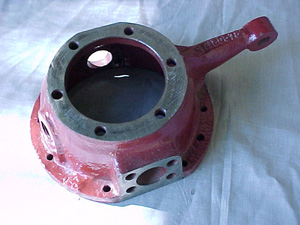

R/B 641629 R/B

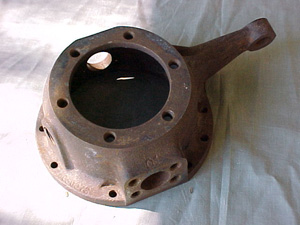

 STEERING KNUCKLE AND ARM, LEFT, THE KNUCKLE SEAL MOUNTING FLANGE IS 1/4" THICK, ARM IS SMOOTH.

 CJ-2A/3A/M38 EARLY SW/SD/PU
$ 86.50
R/B 641630  R/B

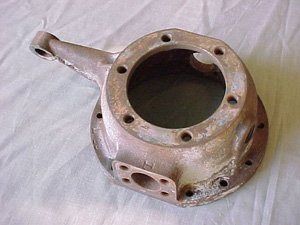

STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 1/4" THICK, ARM IS SMOOTH.

  CJ-2A/3A/M38 EARLY SW/SD/PU $ 86.50
R/B 805783-E R/B



STEERING KNUCKLE AND ARM, LEFT, THE KNUCKLE SEAL MOUNTING FLANGE IS 1/4" THICK, ARM IS RIBBED.

 CJ-3B/5/6  M38  SW/SD/PU
$ 86.50
R/B 805784-E R/B



STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 1/4" THICK, ARM IS RIBBED.

 CJ-3B/5/6  M38  SW/SD/PU $ 86.50
R/B 805783-L R/B



STEERING KNUCKLE AND ARM, LEFT, THE KNUCKLE SEAL MOUNTING FLANGE IS 7/16" THICK, ARM IS RIBBED.

 CJ-3B/5/6 M38/M38A1
 FC-150/FC-170 LATE SW/SD/PU
$ 86.50
R/B 805784-L R/B



STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 7/16" THICK, ARM IS RIBBED.

 CJ-3B/5/6 M38/M38A1
 FC-150/FC-170 LATE SW/SD/PU
$ 86.50

NOTE- Our rebult OEM steering knuckles listed above have been degreased, bead blasted and thoroughly inspected for damage. All of the threaded holes have been run with a threading tap.  All of these parts were made in America with American cast iron by American citizens.


  A-812-R/B

$ 86.50

    A-811-R/B

$ 86.50




  641629-R/B

$ 86.50

    641630-R/B

$ 86.50



805783-R/B $ 86.50
805784-R/B $ 86.50


            NOS STEERING KNUCKLES

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
NOS 805784-E NOS



STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 1/4" THICK, ARM IS RIBBED.

CJ-3B/5/6  M38  SW/SD/PU
$ 125.00
NOS 805784  NOS



STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 7/16" THICK, ARM IS RIBBED.

MITSUBISHI OF JAPAN BRAND

ALL VEHICLES EXCEPT MB/GPW EARLY CJ-2A
$ 125.00
NOS 930253  NOS



STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 7/16" THICK, ARM IS RIBBED WITH HOLES FOR TWO TIE ROD SOCKETS.

SW/SD/PU WITH OHC-6-230 ENGINE J-SERIES
$ 175.00


            AFTERMARKET STEERING KNUCKLES

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 805783-R



STEERING KNUCKLE AND ARM, LEFT, THE KNUCKLE SEAL MOUNTING FLANGE IS 7/16" THICK, ARM IS RIBBED.



 ALL VEHICLES EXCEPT MB/GPW EARLY CJ-2A $ 67.50

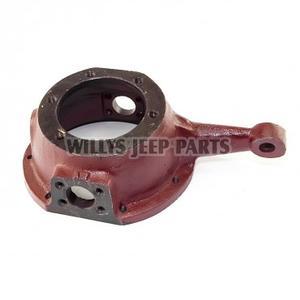

RPL 805784-R



STEERING KNUCKLE AND ARM, RIGHT, THE KNUCKLE SEAL MOUNTING FLANGE IS 7/16" THICK, ARM IS RIBBED.



 ALL VEHICLES EXCEPT MB/GPW EARLY CJ-2A $ 67.50


805783-R $ 67.50

805784-R $ 67.50


            STEERING KNUCKLE SEALS AND PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

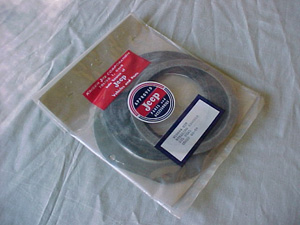

RPL 915664-R

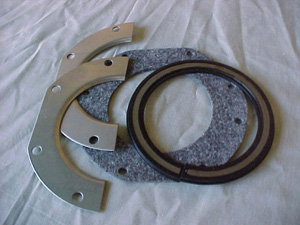

KIT, STEERING KNUCKLE OIL SEAL, FOR ONE SIDE. INCLUDES ONE RUBBER OIL SEAL. TWO RETAINER PLATES AND ONE FELT SEAL,  2 REQD.



 ALL 4WD VEHICLES $ 9.50 EA.
OEM 909854



STEERING KNUCKLE OIL SEAL, MODERN TYPE, FOR ONE SIDE THIS METAL-CASED, NITRILE PLASTIC, SINGLE-LIP, SPRING-LOADED SEAL DOES NOT REQUIRE THE FELT OIL SEAL. YOUR OLD STEEL OR ALUMINUM SEAL RETAININER PLATES WILL BE REUSED, 2 REQD.

 ALL 4WD VEHICLES $ 78.50 EA.
NOS  A-818   NOS

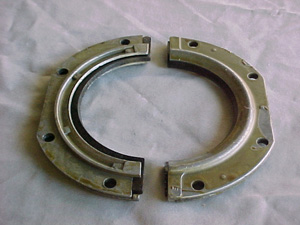

STRIP, PRESSURE, SPRING STEEL, OIL SEAL HALF, FOR USE WITH EARLY CAST ALUMINUM OIL SEAL CONTAINERS.

 ALL 4WD VEHICLES $ 12.50 EA.
NOS 908005 NOS



OIL SEAL, FELT, FOR USE WITH LATE TYPE STAMPED STEEL OIL SEAL RETAINERS

 ALL 4WD VEHICLES $ 8.50 EA.

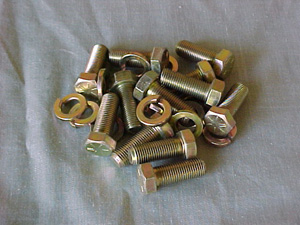

OEM 648877-K

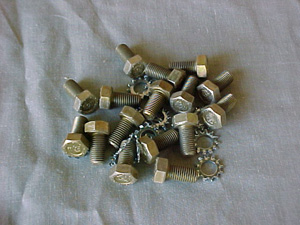

KIT, STEERING KNUCKLE OIL SEAL SCREWS, SIXTEEN SCREWS AND LOCK WASHERS, GRADE 8 YELLOW ZINC PLATED.

 ALL 4WD VEHICLES $ 4.50
OEM 5140



PLUG, FILLER, STEERING KNUCKLE, SQUARE HEAD, 2 REQD.

 ALL 4WD VEHICLES $ 2.50 EA.
T/O 801660 7372879



PLUG, FILLER, STEERING KNUCKLE, COUNTERSUNK HEAD, 2 REQD.

M38/M38A1
$ 12.50 EA.
OEM A-1104



PLUG, FILLER, STEERING KNUCKLE, FLUSH TYPE, SOCKET HEAD, 2 REQD.

 ALL 4WD VEHICLES $ 2.50 EA.
RPL A-821



BOLT, STOP, STEERING KNUCKLE, INCLUDES ADJUSTING NUT, WELDS TO FRONT AXLE TUBE, USED TO PREVENT FRONT TIRES FROM RUBBING ON THE FRAME, GRADE 8 YELLOW ZINC PLATED., 2 REQD.

 ALL 4WD VEHICLES $ 1.75 EA.

915664-R $ 9.50
909854 $ 78.50

A-818-NOS $ 12.50 EA.
908005-NOS $ 8.50 EA.

648887-K $ 4.50
5140 $ 2.50

810660/7372879 $ 12.50
A-1104 $ 2.50

A-821 $ 1.75 EA.


PLEASE REFER TO SUB-GROUP 25-02 AND 25-03 FOR FRONT WHEEL HUBS, BEARINGS AND SEALS


           20A-06B  FRONT AXLE SPINDLE

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
R/B 940775-K R/B



KIT, SPINDLE AND BUSHING, FRONT WHEEL BEARING, INCLUDES A NEW SPINDLE BUSHING, BOLTS, LOCKWASHERS, BEARING RETAINING NUTS AND LOCK WASHERS. THE SPINDLE HAS BEEN BEAD BLASTED, INSPECTED AND POLISHED ON THE BEARING SURFACE.



 ALL 4WD VEHICLES $ 68.50
R/B A-851 940775   R/B



SPINDLE, FRONT WHEEL BEARING, THE SPINDLE HAS BEEN BEAD BLASTED, INSPECTED AND POLISHED ON THE BEARING SURFACE.



 ALL 4WD VEHICLES $ 48.50
RPL A-851 940775-R



SPINDLE, FRONT WHEEL BEARING.





 ALL 4WD VEHICLES $ 62.50
R/B GP3139  R/B



SPINDLE, FRONT WHEEL BEARING, WITH FORD "F" SCRIPT CASTING, THE SPINDLE HAS BEEN BEAD BLASTED, INSPECTED AND POLISHED ON THE BEARING SURFACE.



 ALL 4WD VEHICLES $ 86.50
OEM
A-853 649783



BUSHING, WHEEL BEARING SPINDLE, SPICER BRAND, MADE IN THE USA.

 ALL 4WD VEHICLES $ 4.50
RPL A-866-K



KIT, FRONT WHEEL BEARING RETAINING NUT AND LOCK WASHERS.



 ALL VEHICLES $ 8.50
RPL A-877-K



KIT, SPINDLE TO KNUCKLE BOLTS, TWELVE BOLTS AND LOCK WASHERS, GRADE 8, YELLOW ZINC PLATED.

 ALL VEHICLES $ 8.50
RPL A-692 W-144



WRENCH, SOCKET, WHEEL BEARING ADJUSTING FOR THE A-866 WHEEL BEARING NUTS.

 ALL VEHICLES $ 18.50

940775-K-R/B $ 68.50
A-851/940775-R/B $ 48.50

A-853/649783 $ 4.50
A-866-K $ 8.50

A-877-K $ 8.50
A-692/W-144 $ 18.50


GO TO  SUB-GROUP 24-02 AND 25-03 FOR FRONT WHEEL HUBS, BEARINGS AND SEALS.

            20A-06C  FRONT AXLE STEERING KNUCKLE ARMS AND KING PINS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE

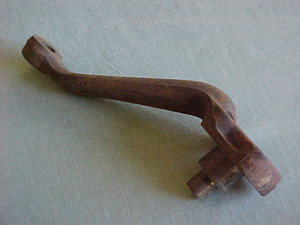

R/B A-1712  R/B

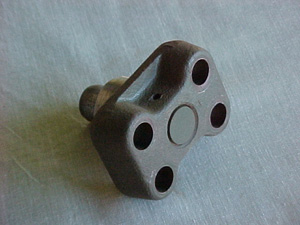

STEERING ARM AND KING PIN, LEFT.

 MB/GPW EARLY CJ-2A $ 72.50

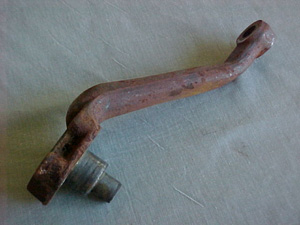

R/B A-1710   R/B



STEERING ARM AND KING PIN,
 RIGHT.

 MB/GPW EARLY CJ-2A $ 72.50
R/B

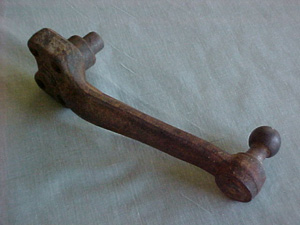

905693  R/B



 STEERING ARM AND KING PIN, LOWER LEFT.

4WD  SW/SD/PU
$ 68.50
RPL 905693-R



 STEERING ARM AND KING PIN, LOWER LEFT.



4WD  SW/SD/PU
$ 65.50 EA.
NOS 905693 NOS



 STEERING ARM AND KING PIN, LOWER LEFT.

4WD  SW/SD/PU $ 125.00

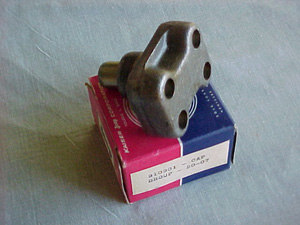

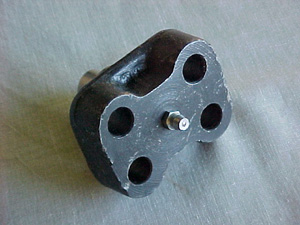

R/B A-828 910901 R/B



CAP AND KING PIN, LEFT OR RIGHT, TOP OR BOTTOM, 4 REQD.

 ALL 4WD VEHICLES $ 22.50 EA.
RPL 910901-R



CAP AND KING PIN, LEFT OR RIGHT, TOP OR BOTTOM, 4 REQD.



 ALL 4WD VEHICLES $ 34.50 EA.

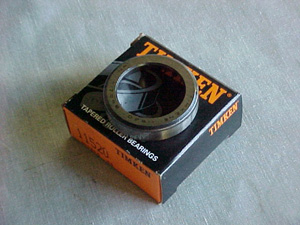

OEM 52940

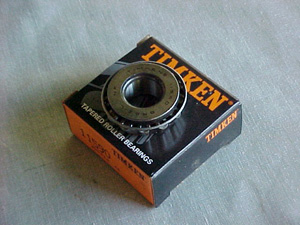

CONE AND ROLLERS, KING PIN BEARING, 4 REQD, TIMKEN USA BRAND.

 ALL 4WD VEHICLES $ 28.50 EA.
OEM 52941



CUP, KING PIN BEARING, 4 REQD, TIMKEN USA BRAND.

 ALL 4WD VEHICLES $ 12.50 EA.
OEM WB



GREASE, GENERAL PURPOSE, No. 2, AUTOMOTIVE WHEEL BEARING, TIMKEN USA BRAND. IF YOU ARE PURCHASING THE BEST QUALITY BEARINGS AVAILABLE, WHY NOT USE THE BEST QUALITY LUBRICANT THAT IS MADE FOR THEM? THIS IS A HANDY 14.3 OZ TUB, 4" DIAMETER AND 3 3/4" TALL, PERFECTLY SUITED TO DROP IN AND GENTLY HAND LUBRICATE YOUR NEW TIMKEN BEARING.

 ALL  VEHICLES $ 7.50 EA.

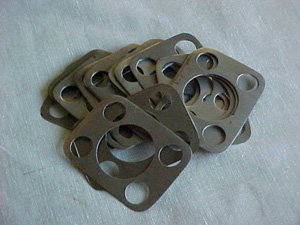

RPL A-6882



 SHIM SET, KING PIN BEARING
 ADJUSTING, 2 REQD.



 ALL 4WD VEHICLES $ 4.50 EA.
T/O A-1714



STUD, KING PIN BEARING CAP, 12 REQD.

ALL 4WD VEHICLES
$ 2.50 EA.
OEM 181374-K

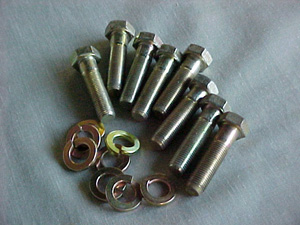

 KIT, KING PIN CAP MOUNTING, EIGHT BOLTS WITH LOCK WASHERS, GRADE 8 YELLOW ZINC PLATED, 2 REQD.

 ALL 4WD VEHICLES $ 12.00 EA.
OEM C-690



 KING PIN BEARING SCALE, USED TO ADJUST THE PRELOAD ON THE KING PIN BEARINGS, 0-15 FOOT POUNDS. REFER TO YOUR SERVICE MANUAL FOR THE CORRECT TENSION OF THE STEERING KNUCKLE.

 ALL 4WD VEHICLES $ 26.50


  A-1712-R/B

$ 72.50

    A-1710-R/B

$ 72.50




  905693-R

$ 68.50

    A-828/910901-R/B

$ 22.50




  52940

$ 28.50

    52941

$ 12.50



WB $ 7.50


A-6882

$ 4.50

A-1714 $ 2.50 EA.


  181374-K

$ 12.00

    C-690

$ 26.50





PLEASE REFER TO GROUP 23 STEERING FOR STEERING TIE RODS, CONNECTING RODS AND
STEERING GEAR ARMS
