35-02  SHOVEL AND AXE KIT
35-02A  MILITARY SHOVEL AND AXE KIT

All Willys military vehicles came equipped with an issue “D” handle shovel. The Willys MB, the Ford GPW and the Willys M38 were also equipped with single bit axe.  The shovel and axe kit was located on the driver’s side of the MB and GPW.  The kit was moved to the passenger’s side on the M38. The “D” handle shovel was secured to the underside of the hood and the axe was eliminated on the M38A1. The "D" handle shovel was installed on the right side and the axe was installed on the left side of the M151 Vehicles.

Early CJ-2A’s have the indents for the shovel and axe which makes the installation of our shovel and axe kit a nice addition.  The late CJ-2A’s, CJ-3A and CJ-3B will accept the kit without any special modifications although the axe handle will be  farther out from the cowl as compared to the vehicles with the factory indents.

Our shovel and axe kit comes complete with an original hand forged #2 spade “D” handle shovel, a single bit forged thin head Collins type axe, all of the brackets and clamps, the footman loops, the web straps and the correct mounting hardware.  We sell all of the components separately as well.

This kit can be installed on the CJ-5/6/M38A1 or any other vehicle with flat sides by using our "D" handle shovel Part No. 673770-B with the 30 degree angled blade.




SHOVEL AND AXE KIT INSTALLED ON THE LEFT SIDE OF THE MB AND GPW




SHOVEL AND AXE KIT INSTALLED ON THE RIGHT SIDE OF THE M38



SHOVEL AND AXE KIT INSTALLED  ON THE LEFT SIDE OF THE MB AND GPW.


PREFIX PART NO. DESCRIPTION APPLICATION PRICE

RPL

673770K



 MILITARY SHOVEL AND AXE KIT,
 COMPLETE, WITH THE CORRECT MOUNTING HARDWARE.



    MB/GPW    M38 CJ-2A/3A/3B AND OTHERS

$ 245.00



673770K $ 245.00
35-02B  MILITARY SHOVEL AND AXE KIT PARTS

          VINTAGE TYPE "D" HANDLE SHOVELS AND PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 673770-A

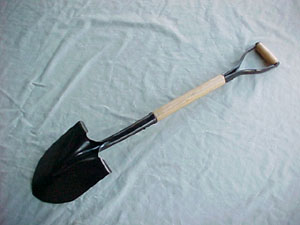

 "D" HANDLE SHOVEL, WITH 45 DEGREE
 ANGLED FORGED STEEL BLADE, 39" LONG, AMERICAN HARDWOOD HANDLE AND GRIP, STAMPED STEEL "D" HANDLE, ASSEMBLED IN THE USA.

* INSTALLATION NOTE-THE OVERALL LENGTH OF THIS SHOVEL CAN EASILY BE REDUCED BY GRINDING THE TIP OF THE SHOVEL BLADE TO A  MORE ROUNDED PROFILE TO FIT INTO THE SHOVEL BLADE BRACKET.

ALL VEHICLES
$ 88.50
NOS
673770  NOS

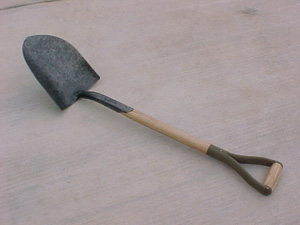

 "D" HANDLE SHOVEL, WITH 45 DEGREE
 ANGLED FORGED STEEL BLADE, 37" LONG, AMERICAN HARDWOOD HANDLE AND GRIP, STAMPED STEEL "D" HANDLE, MADE IN THE USA. 1944 ISSUE BALDWINS OPTIMUS #2. STAMPED ON BLADE SHANK.

ALL VEHICLES NLA
RPL 673770-B

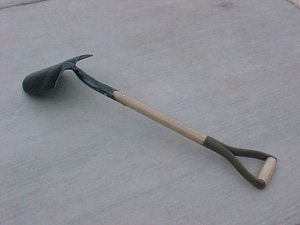

 "D" HANDLE SHOVEL, WITH 30 DEGREE
 ANGLED STAMPED STEEL BLADE, 41" LONG, FOR USE ON FLAT SURFACES.

 CJ-5/6 M38A1 SW/ SD/PU $ 32.50
RPL A-3082
673769

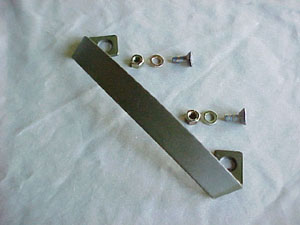

 SHOVEL BLADE BRACKET, WITH CORRECT TAPERED HOLES AND SLOTTED FLAT HEAD SCREWS.

 ALL VEHICLES $ 25.00


NOTE-

THE OVERALL LENGTH OF THESE SHOVELS CAN BE EASILY REDUCED BY GRINDING THE TIP OF THE SHOVEL BLADE THEREBY ALLOWING IT TO FIT DEEPER INTO THE SHOVEL BLADE BRACKET.



  673770-A FORGED BLADE 45 DEGREE     673770-A "D" HANDLE







  673770-NOS FORGED BLADE 45 DEGREE
  673770-NOS "D" HANDLE




673770-B STAMPED BLADE 30 DEGREE

    673770-B "D" HANDLE






A-3082/673769

$ 25.00


           THE COLLINS AXE
THE COLLINS AXE WAS ISSUED ON ALMOST ALL MILITARY TRUCKS. THE COLLINS AXE IS UNIQUE AS IT IS ALSO USED AS A SLEDGE HAMMER WHEN NEEDED. THE AXE HEAD HAS A THIN BLADE AND SQUARE HEAD.

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 637411-R

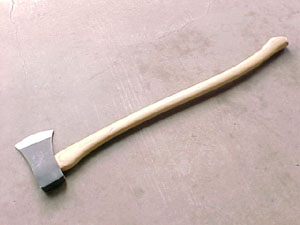

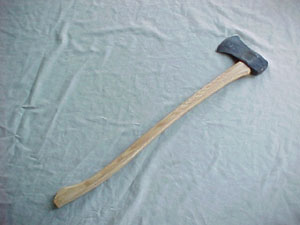

 SINGLE BIT AXE, COLLINS TYPE, 35" LONG, 3 1/2  LB. FORGED STEEL HEAD, "US" CAST INTO THE HEAD, APPALACHIAN HARDWOOD HANDLE, ALL MADE IN THE UNITED STATES OF AMERICA.

ALL VEHICLES
$ 42.50
OEM 637411



 SINGLE BIT AXE, COLLINS BRAND, 34 1/4" LONG, 3 1/2  LB. FORGED STEEL HEAD,  MARKED "C COLLINS AXE" ON THE HICKORY HARDWOOD  HANDLE, ALL MADE IN THE UNITED STATES OF AMERICA.

ALL VEHICLES
NLA
RPL A-2995
673412

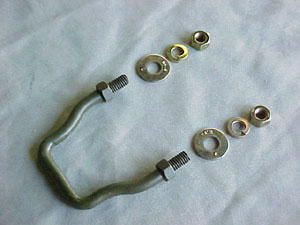

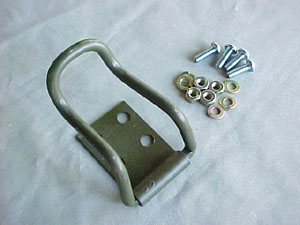

 FRONT AXE HANDLE CLAMP, WITH CORRECT MOUNTING HARDWARE, THIS CLAMP HAS 1 1/2" OF THREADS ALLOWING 1 1/4" OF ADJUSTMENT TO CONFORM WITH THE CONTOUR OF THE BODY SIDES.

 ALL VEHICLES $ 12.50
RPL A-2984
673647

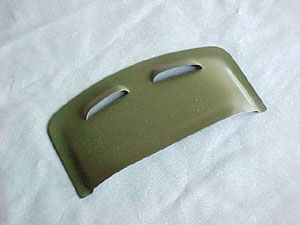

 REAR AXE HEAD CLAMP, WITH CORRECT TAPERED HOLES AND SLOTTED FLAT HEAD SCREWS.

 ALL VEHICLES $ 25.00
RPL A-2968
673414



AXE HEAD SHEATH, WELD-ON



 ALL VEHICLES $ 18.50



637411-R SINGLE BIT COLLINS TYPE AXE

$ 42.50



647411 SINGLE BIT COLLINS AXE

NLA




NOTE-

CONTRARY TO CURRENT BLOG-PORN, THESE TWO AXES WILL FIT INTO THE STANDARD ISSUE AXE HEAD SHEATH AS SEEN BELOW.




637411-R SEATED INTO AN AXE HEAD SHEATH


637411 SEATED INTO AN AXE HEAD SHEATH


  A-2995/673412

$ 12.50

    A-2984/673647

$ 25.00




A-2968/673414

$ 18.50


           SHOVEL AND AXE MOUNTING HARDWARE

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-2168



FOOTMAN LOOP, WILLYS TYPE, STAMPED STEEL ROD, ZINC-PLATED,WITH CORRECT MOUNTING HARDWARE, FOR USE WITH 1" WIDE STRAPS.



MB/GPW $ 3.25 EA.
RPL GPW- 1154810-A

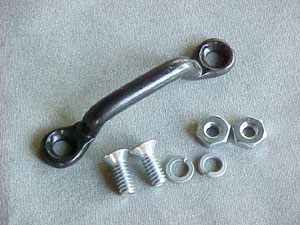

FOOTMAN LOOP, FORD TYPE, CAST IRON, PAINTED O.D. GREEN,WITH CORRECT MOUNTING HARDWARE, FOR USE WITH 1" WIDE STRAPS.



ALL FORD VEHICLES
$ 4.75 EA.
RPL 673416

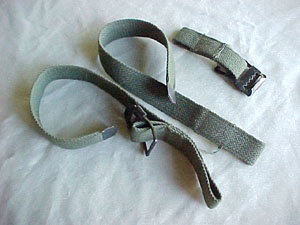

 SHOVEL AND AXE STRAP KIT, 1" WIDE OLIVE DRAB COTTON WITH CORRECT BUCKLES AND TIPS, INCLUDES 1 STRAP AND BUCKLE SET 16 1/2" LONG, 1 STRAP 15 1/2" LONG AND 1 STRAP AND BUCKLE SET 4" LONG.

 ALL VEHICLES $ 22.50


  A-2168

$ 3.25

    GPW-1154810-A $ 4.75


673416

$ 22.50



SHOVEL AND AXE MOUNTING

INSTALLATION: TURN BIT, OR BLADE OF AXE UP. INSERT HANDLE IN FRONT CLAMP. INSERT BLADE IN SHEATH. PULL UP CLAMP UNDER AXE HEAD, AND STRAP IN PLACE. TURN FACE OF SHOVEL AGAINST COWL AND PLACE IN BRACKET ON COWL SIDE. WRAP FABRIC STRAP. THROUGH HANDLE, OVER GRIP, BETWEEN GRIP AND SIDE OF BODY, THROUGH LOOP , OVER OUTSIDE OF GRIP, AND BUCKLE.
NOTE. THIS WILL HOLD THE SHOVEL FORWARD IN THE STRAP ON THE COWL SIDE.


NOTE-

USE YOUR IMAGINATION WHEN MOUNTING THIS ON YOUR NEWER MODEL JEEP, BRONCO, LAND CRUISER, RANGE ROVER, HUMMER OR PICK UP TRUCK.
