22-05 REAR AXLE SHAFTS, BEARINGS, SEALS AND PARTS

TYPICAL TAPERED REAR AXLE SHAFT

22-05A OEM NOS AND TAKE-OFF REAR AXLE SHAFTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
NOS	640968 NOS	REAR AXLE SHAFT, LEFT SIDE, 10 SPLINE, 29 11/16" LONG, MODEL 41 AND 44 AXLE, SPICER USA BRAND.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150	$ 275.00
T/O	640968	REAR AXLE SHAFT, LEFT SIDE, 10 SPLINE, 29 11/16" LONG, MODEL 41 AND 44 AXLE, SPICER USA BRAND.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150	$ 225.00
T/O	640969	REAR AXLE SHAFT, RIGHT SIDE, 10 SPLINE, 21 7/16" LONG, MODEL 41 AND 44 AXLE, SPICER USA BRAND.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150	$ 225.00
T/O	641361	REAR AXLE SHAFT, LEFT OR RIGHT SIDE, 10 SPLINE, 30" LONG, MODEL 23 AXLE, SPICER USA BRAND.	2WD VJ/SW/SD	$ 225.00
T/O	644290	REAR AXLE SHAFT, LEFT, LONG, TIMKEN AXLE, SPICER USA BRAND.	2WD/4WD PU	$ 375.00
T/O	644291	REAR AXLE SHAFT, RIGHT, SHORT, TIMKEN AXLE, SPICER USA BRAND.	2WD/4WD PU	$ 375.00
T/O	648093	REAR AXLE SHAFT, LEFT SIDE, 10 SPLINE, 36 1/16" LONG, MODEL 44 AXLE, SPICER USA BRAND.	4WD SW/SD	$ 375.00
T/O	648094	REAR AXLE SHAFT, RIGHT SIDE, 10 SPLINE, 23 3/4" LONG, MODEL 44 AXLE, SPICER USA BRAND.	4WD SW/SD	$ 375.00
T/O	803906	REAR AXLE SHAFT, LEFT OR RIGHT SIDE, 10 SPLINE, 30 5/16" LONG, MODEL 23 AXLE, SPICER USA BRAND.	2WD SW/SD	$ 375.00
T/O	805335	REAR AXLE SHAFT, LEFT SIDE, 20 SPLINE, 35 11/16" LONG, MODEL 53 AXLE, SPICER USA BRAND.	4WD PU FC-170	$ 425.00
T/O	805336	REAR AXLE SHAFT, RIGHT SIDE, 20 SPLINE, 30 11/16" LONG, MODEL 53 AXLE, SPICER USA BRAND.	4WD PU FC-170	$ 425.00
T/O	909404	REAR AXLE SHAFT, LEFT SIDE, 19 SPLINE, 31 5/32" LONG, MODEL 44 AXLE, SPICER USA BRAND.	2WD/4WD SW/SD	$ 375.00
T/O	909405	REAR AXLE SHAFT, RIGHT SIDE, 19 SPLINE, 28 23/32" LONG, MODEL 44 AXLE, SPICER USA BRAND.	2WD/4WD SW/SD	$ 375.00
T/O	910871	REAR AXLE SHAFT, LEFT OR RIGHT SIDE, 10 SPLINE, 25 7/8" LONG, MODEL 27 AXLE, SPICER USA BRAND.	DJ-3A	$ 475.00 EA.
NOS	912625 NOS	REAR AXLE SHAFT, LEFT SIDE, 19 SPLINE, 29 11/16" LONG, MODEL 44 AXLE, SPICER USA BRAND.	CJ-3B/5/6 FC-150	$ 275.00
T/O	912625	REAR AXLE SHAFT, LEFT SIDE, 19 SPLINE, 29 11/16" LONG, MODEL 44 AXLE, SPICER USA BRAND.	CJ-3B/5/6 FC-150	$ 375.00
T/O	912626	REAR AXLE SHAFT, RIGHT SIDE, 19 SPLINE, 21 7/16" LONG, MODEL 44 AXLE, SPICER USA BRAND.	CJ-3B/5/6 FC-150	$ 375.00
T/O	919319	REAR AXLE SHAFT, LEFT SIDE, 19 SPLINE, 36 1/16" LONG, MODEL 44 AXLE, SPICER USA BRAND.	FC-150 WITH 57" TREAD	$ 425.00
T/O	919321	REAR AXLE SHAFT, RIGHT SIDE, 19 SPLINE, 23 13/16" LONG, MODEL 44 AXLE, SPICER USA BRAND.	FC-150 WITH 57" TREAD	$ 425.00

22-05B AFTERMARKET REAR AXLE SHAFTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
RPL	640968-R	REAR AXLE SHAFT, LEFT SIDE, 10 SPLINE, 29 11/16" LONG, MODEL 41 AND 44 AXLE.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150	$ 98.50
RPL	640969-R	REAR AXLE SHAFT, RIGHT SIDE, 10 SPLINE, 21 7/16" LONG, MODEL 41 AND 44 AXLE.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150	$ 98.50
RPL	909405-R	REAR AXLE SHAFT, RIGHT SIDE, 19 SPLINE, 28 7/8" LONG, MODEL 44 AXLE.	2WD/4WD SW/SD	$ 145.50
RPL	912625-R	REAR AXLE SHAFT, LEFT SIDE, 19 SPLINE, 29 11/16" LONG, MODEL 44 AXLE.	LATE CJ-3B/5/6 JEEPSTER COMMANDO	$ 99.50
RPL	912626-R	REAR AXLE SHAFT, RIGHT SIDE, 19 SPLINE, 21 7/16" LONG, MODEL 44 AXLE.	LATE CJ-3B/5/6 JEEPSTER COMMANDO	$ 89.50

22-05C REAR AXLE SHAFT BEARINGS, RETAINERS AND SHIMS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	52799	CONE AND ROLLERS, REAR AXLE BEARING, MODEL 41 AND 44 AXLE, TIMKEN BEARING BRAND.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 24.50
OEM	52800	CUP, REAR AXLE BEARING, MODEL 41 AND 44 AXLE, TIMKEN BEARING BRAND.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 13.50
OEM	54153	CONE AND ROLLERS, REAR AXLE BEARING, MODEL 53 AND TIMKEN AXLE, SKF BEARING BRAND.	2WD/4WD PU/FC-170	$ 68.50
OEM	54154	CUP, REAR AXLE BEARING, MODEL 53 AND TIMKEN AXLE, TIMKEN BEARING BRAND.	2WD/4WD PU/FC-170	$ 32.50
OEM	53814	CONE AND ROLLERS, REAR AXLE BEARING, MODEL 23 AXLE, TIMKEN BEARING BRAND.	2WD VJ/SW/SD	$ 46.50
OEM	52883	CUP, REAR AXLE BEARING, MODEL 23 AXLE, TIMKEN BEARING BRAND	2WD VJ/SW/SD	$ 7.50
OEM	803907	CONE AND ROLLERS, REAR AXLE BEARING, MODEL 23 AND 27 AXLE, SFK BEARING BRAND.	DJ-3A/5/6 FJ-3/FJ-3A	$ 125.00
OEM	803054	CUP, REAR AXLE BEARING, MODEL 23 AND 27 AXLE, TIMKEN BEARING BRAND.	DJ-3A/5/6 FJ-3/FJ-3A	$ 18.50
OEM	WB	GREASE, GENERAL PURPOSE, No. 2, AUTOMOTIVE WHEEL BEARING, TIMKEN USA BRAND. IF YOU ARE PURCHASING THE BEST QUALITY BEARINGS AVAILABLE, WHY NOT USE THE BEST QUALITY LUBRICANT THAT IS MADE FOR THEM? THIS IS A HANDY 14.3 OZ TUB, 4" DIAMETER AND 3 3/4" TALL, PERFECTLY SUITED TO DROP IN AND GENTLY HAND LUBRICATE YOUR NEW TIMKEN BEARING.	ALL VEHICLES	$ 7.50 EA.

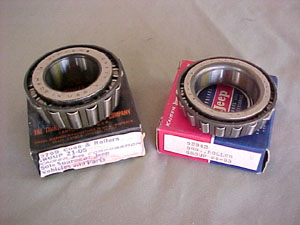

TYPICAL TIMKEN BEARING CONE

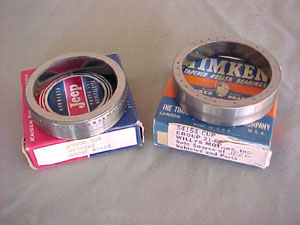

TYPICAL TIMKEN BEARING CUP


WB		$ 7.50

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

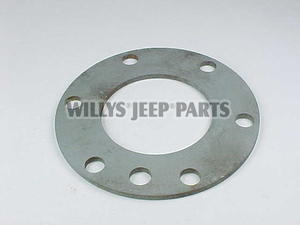

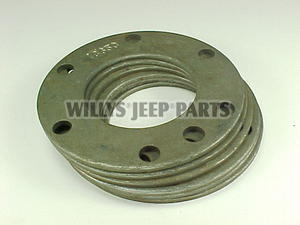

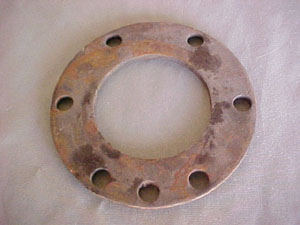

NOS	802887 NOS	RETAINER, AXLE SHAFT BEARING, MODEL 41 AND 44 AXLE, 1/8" THICK.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 22.50
T/O	802887	RETAINER, AXLE SHAFT BEARING, MODEL 41 AND 44 AXLE, 1/8" THICK.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 12.50
T/O	805338	RETAINER, AXLE SHAFT BEARING, MODEL 53 AND TIMKEN AXLE, 1/4" THICK.	4WD PU/FC-170	$ 12.50

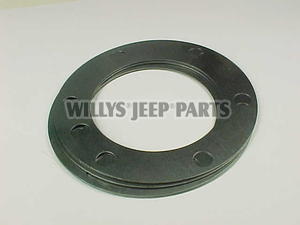

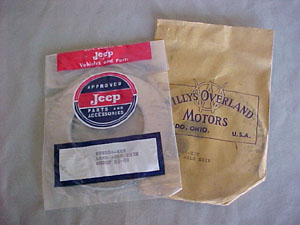

RPL	805524-R	SHIM SET, AXLE SHAFT BEARING, MODEL 41, 44, 53 AND TIMKEN AXLE.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 7.50

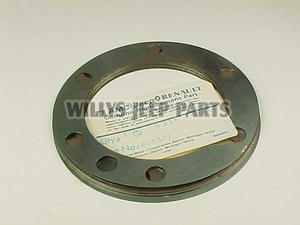

NOS	805524 NOS	SHIM SET, AXLE SHAFT BEARING, MODEL 41,44,53 AND TIMKEN AXLE.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 38.50
OEM	805337-K	BOLT KIT, REAR BACKING PLATE TO AXLE FLANGE.	ALL VEHICLES	$ 12.50
T/O	648330	BOLT, SPECIAL, REAR BRAKE BACKING PLATE TO AXLE TUBE FLANGE, TIMKEN AXLE.	2WD/4WD PU	$ 8.50 EA.

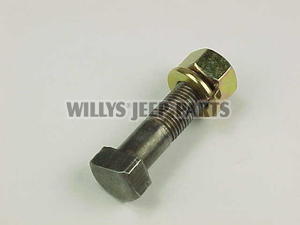

T/O	805337	BOLT, SPECIAL, REAR BRAKE BACKING PLATE TO AXLE TUBE FLANGE, MODEL 53 AXLE.	4WD PU/FC-170	$ 8.50 EA.


802887-NOS	$ 22.50 EA.


802887	$ 12.50


805338	$ 12.50


805524-R	$ 7.50


805524-NOS	$ 38.50


805337-K	$12.50


648330	$ 8.50 EA.


805337	$ 8.50 EA.

22-05D REAR AXLE SHAFT SEALS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

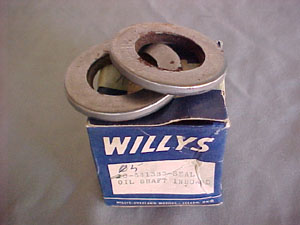

OEM	640959	OIL SEAL, AXLE CARRIER END, MODEL 41 AND 44 AXLE, TIMKEN USA BRAND.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 22.50

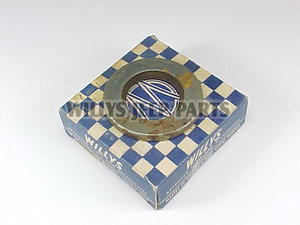

NOS	640959 NOS	OIL SEAL, AXLE CARRIER END, RAWHIDE SEAL, MODEL 41 AND 44 AXLE.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 32.50

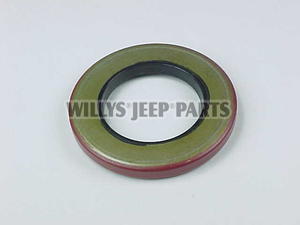

RPL	640959-R	OIL SEAL, AXLE CARRIER END, MODEL 41 AND 44 AXLE, NO NAME BRAND.	CJ-2A/3A/3B/5/6 FC-150 M38/M38A1 4WD SW/SD	$ 4.00
OEM	641383	OIL SEAL, AXLE INNER, MODEL 23 AXLE, TIMKEN USA BRAND.	2WD VJ/SW/SD	$ 15.50
RPL	641383-R	OIL SEAL, AXLE INNER, MODEL 23 AXLE, NO NAME BRAND.	2WD VJ/SW/SD	$ 5.50

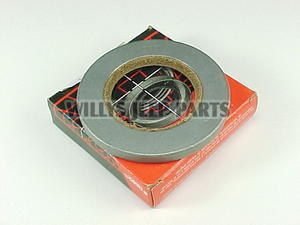

OEM	644254	OIL SEAL, AXLE INNER, MODEL 53 AND TIMKEN AXLE, TIMKEN USA BRAND.	4WD PU/FC-170	$ 16.50
NOS	644254 NOS	OIL SEAL, AXLE INNER, MODEL 53 AND TIMKEN AXLE.	4WD PU/FC-170	$ 26.50

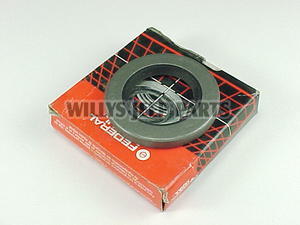

OEM	803900	OIL SEAL, AXLE CARRIER END, MODEL 23 AND 27 AXLE.	DJ-3A/5/6 FJ-3/FJ-3A	$ 15.50
NOS	803900 NOS	OIL SEAL, AXLE CARRIER END, RAWHIDE SEAL, MODEL 23 AND 27 AXLE.	DJ-3A/5/6 FJ-3/FJ-3A	$ 26.50
OEM	919317	OIL SEAL, AXLE CARRIER END, MODEL 44 AXLE.	FC-150 W/57" TREAD J-SERIES	$ 22.50
RPL	919317-R	OIL SEAL, AXLE CARRIER END, MODEL 44 AXLE, NO NAME BRAND.	FC-150 W/57" TREAD J-SERIES	$ 5.50

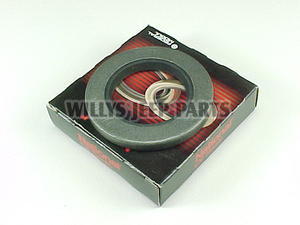

640959	$ 22.50


640959-NOS	$ 32.50


640959-R	$ 4.00

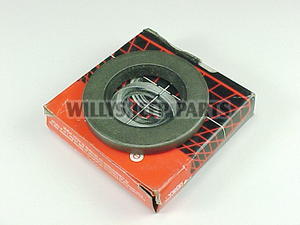

641383	$ 15.50


644254	$ 16.50


644254-NOS	$ 32.50 EA.


803900	$ 15.50

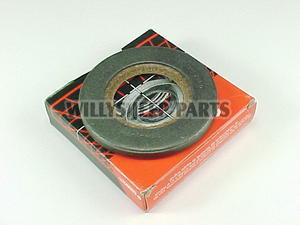

919317	$22.50

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

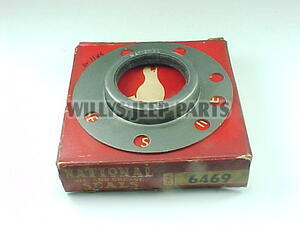

NOS	641365 NOS	RETAINER, GREASE, AXLE REAR, OUTER, SEALS ON REAR WHEEL HUB, MODEL 23 AXLE.	2WD VJ/SW/SD	$ 28.50

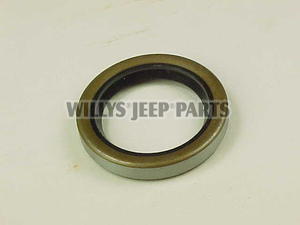

OEM	803334	SEAL, GREASE, AXLE SHAFT OUTER, SEALS ON REAR WHEEL HUB, MODEL 23 AND 27 AXLE, TIMKEN USA BRAND.	DJ-3A/5/6 FJ-3 /FJ-3A	$ 15.50

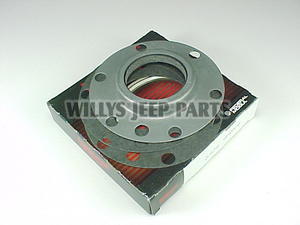

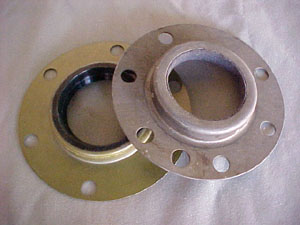

OEM	914802	RETAINER, GREASE, AXLE SHAFT OUTER, SEALS ON REAR WHEEL HUB, INCLUDES TWO OEM GASKETS, MODEL 41/44/53 AXLE, TIMKEN USA BRAND.	CJ-2A/3A/3B/5/6 FC-150/170 M38/M38A1 4WD SW/SD/PU	$ 26.50
RPL	914802-R	RETAINER, GREASE, AXLE SHAFT OUTER, SEALS ON REAR WHEEL HUB, MODEL 41/44/53 AXLE, NO NAME BRAND.	CJ-2A/3A/3B/5/6 FC-150/170 M38/M38A1 4WD SW/SD/PU	$ 7.50
OEM	935612	SEAL, REAR AXLE OUTER, SEALS ON AXLE SHAFT MODEL 41 AND 44 AXLE, TIMKEN USA BRAND.	LATE CJ-5/6 JEEPSTER COMMANDO SEE NOTE BELOW	$ 28.50
RPL	942901-R	SEAL, REAR AXLE OUTER, SEALS ON AXLE SHAFT, MODEL 30 AND 44 AXLE, NO NAME BRAND.	LATE CJ-5/6 JEEPSTER COMMANDO	$ 7.50
NOS	942901 NOS	SEAL, REAR AXLE OUTER, SEALS ON AXLE SHAFT, MODEL 30 AND 44 AXLE.	LATE CJ-5/6 JEEPSTER COMMANDO	$ 28.50

NOTE:

SEAL NUMBER 935612 CAN BE USED AS A REPLACMENT FOR SEAL NUMBER 914802 FOR A SUPERIOR SEAL ON THE AXLE SHAFT INSTEAD OF THE WHEEL HUB OR USE BOTH FOR A POSITIVE SEAL.


641365-NOS	$ 28.50


803334	$ 15.50


914802	$ 26.50


914802-R	$ 7.50


935612	$ 28.50


942901-R	$ 7.50


942901-NOS	$ 28.50

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

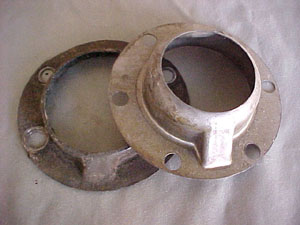

T/O	640888	PROTECTOR, GREASE, REAR BRAKE, 2 REQD., MODEL 41/44/53 AND TIMKEN AXLE.	ALL 4WD VEHICLES	$ 26.50 EA.

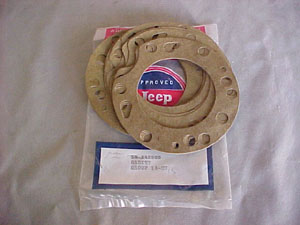

NOS	641391 NOS	GASKET, GREASE PROTECTOR, 4 REQD., NATIONAL USA BRAND.	2WD VJ/SW/SD	$ 3.50 EA.
RPL	640886/ 924903-R	GASKET, GREASE PROTECTOR, 4 REQD.	ALL 4WD VEHICLES	$ 1.00 EA.


640888	$ 26.50

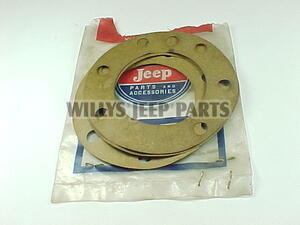

641391-NOS	$ 3.50 EA.


640886/924903-R	$ 1.00

22-05E REAR AXLE SHAFT PARTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

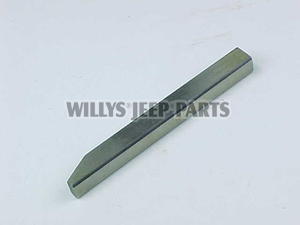

RPL	636374	KEY, REAR AXLE SHAFT, MODEL 41 AND 44 AXLES.	CJ-2A/3A/3B CJ-5/6 FC-150 M38/M38A1 4WD SW/SD	$ 2.00

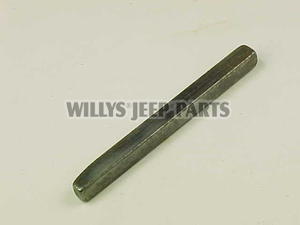

T/O	641387	KEY, REAR AXLE SHAFT, MODEL 23 AXLES.	2WD VJ/SW/SD	$ 12.50
RPL	644340	KEY, REAR AXLE SHAFT, MODEL 53 AND TIMKEN AXLES.	2WD/4WD PU/FC-170	$ 2.00

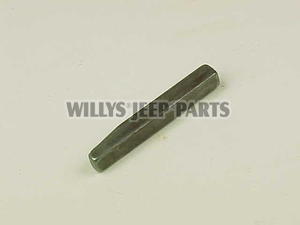

T/O	803425	KEY, REAR AXLE SHAFT, MODEL 23 AND 27 AXLES.	DJ-3A/5/6 FJ-3/FJ-3A	$ 12.50


636374	$ 2.00


641387	$ 12.50


644340	$ 2.00


803425	$ 12.50

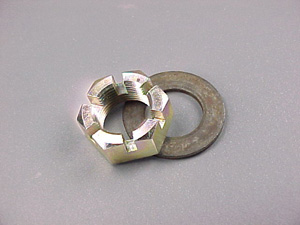

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

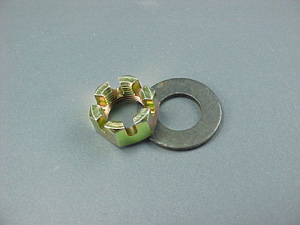

OEM	636344	NUT, REAR AXLE SHAFT, 1", MODEL 41/44/53 AND TIMKEN AXLES.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150/170 4WD SW/SD	$ 14.50
OEM	640945-A	WASHER, REAR AXLE SHAFT, 1 1/32" I.D. X 1 13/16" O.D. X 1/8" THICK, MODEL 41/44/53 AND TIMKEN AXLES, OUR A-869 WHEEL HUB DUST CAP WILL FIT OVER THIS WASHER.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150/170 4WD SW/SD	$ 4.50
OEM	640945-B	WASHER, REAR AXLE SHAFT,, 1 1/32" I.D. X 1 3/4" O.D. X 1/16" THICK, MODEL 41/44/53 AND TIMKEN AXLES, USED TO ACHIEVE PROPER COTTER PIN ALIGNMENT, OUR A-869 WHEEL HUB DUST CAP WILL FIT OVER THIS WASHER.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150/170 4WD SW/SD	$ 1.50
OEM	641389	NUT, REAR AXLE SHAFT, 7/8", MODEL 23 AXLES.	2WD VJ/SW/SD	$ 14.50
OEM	641385	WASHER, REAR AXLE SHAFT, 7/8", MODEL 23 AXLES.	2WD VJ/SW/SD	$ 2.50

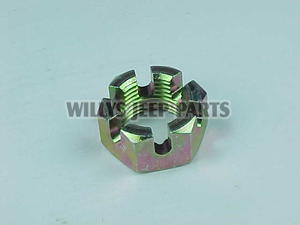

OEM	427640	NUT, REAR AXLE SHAFT, 3/4", MODEL 23 AND 27 AXLES.	DJ/3A/5/6 FJ-3/FJ-3A	$ 5.75
OEM	636570	WASHER, REAR AXLE SHAFT, 3/4", MODEL 23 AND 27 AXLES.	DJ/3A/5/6 FJ-3/FJ-3A	$ 2.50
OEM	52527	COTTER PIN, REAR AXLE SHAFT NUT, ALL AXLES.	ALL VEHICLES	$ 0.75


636344	$ 14.50


640945-A	$ 4.50


640945-B	$ 1.50

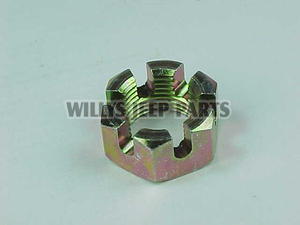

641389	$ 14.50

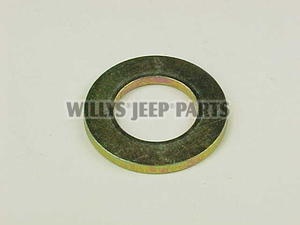

641385	$ 2.50


427640	$ 5.75


636570	$ 2.50


52527	$ 0.75

GO TO	SUBGROUP 24-03C FOR BRAKE BACKING PLATE TO REAR AXLE
	FLANGE BOLT KITS.

GO TO	SUBGROUP 33-13 FOR REAR WHEEL HUB PULLERS.

GO TO	SUBGROUP 25-02 FOR REAR WHEEL HUBS, WHEEL HUB CAPS
	AND BRAKE DRUMS.

GO TO

SUBGROUP 33-29 FOR REAR AXLE SHAFT PULLER.
