| 22-02 REAR AXLE HOUSINGS |
| |
NOTE-Spicer/Dana axle models can be identified by the number cast into the carrier (differential housing) through raised pattern letters on top of the cast iron main body.
|
|
| |
| 22-02A REAR AXLE HOUSINGS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| T/O |
640950 |
HOUSING, REAR AXLE, MODEL 41.
|
CJ-2A/3A |
$ 475.00 |
| T/O |
641362 |
HOUSING, REAR AXLE, MODEL 23.
|
2WD VJ/SW/SD |
$ 375.00 |
| T/O |
802896 |
HOUSING, REAR AXLE, MODEL 44.
|
CJ-3A/3B/5/6 FC-150 M38/M38A1 |
$ 375.00 |
| T/O |
802901 |
HOUSING, REAR AXLE, MODEL 44, USES 10 SPLINE AXLE SHAFTS.
|
4WD SW/SD
|
$ 375.00 |
| T/O |
908314 |
HOUSING, REAR AXLE, MODEL 53.
|
UTILITY TRUCK |
$ 375.00 |
| T/O |
909394 |
HOUSING, REAR AXLE, MODEL 44, USES 19 SPLINE AXLE SHAFTS, LEFT AXLE TUBE IS 20", RIGHT AXLE TUBE IS 17 1/2".
|
2WD/4WD SW/SD |
$ 375.00 |
| T/O |
910865 |
HOUSING, REAR AXLE, MODEL 27.
|
DJ-3A |
$ 375.00 |
| T/O |
916347 |
HOUSING, REAR AXLE, MODEL 53.
|
FC-170 |
$ 375.00 |
| T/O |
16380
|
CAP, DIFERENTIAL BEARING RETAINER, MODEL 23.
|
ALL MODEL 23 AXLES
|
$ 22.50 |
| T/O |
15366 |
CAP, DIFERENTIAL BEARING RETAINER, MODEL 41/44.
|
ALL MODEL 41/44 AXLES |
$ 22.50 |
| T/O |

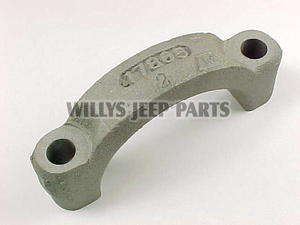

17865
|
CAP, DIFERENTIAL BEARING RETAINER, MODEL 53.
|
ALL MODEL 53 AXLES |
$ 22.50 |
| OEM |
636527 |
BOLT, SPECIAL, DIFFERENTIAL BEARING CAP, GRADE 8 CADMIUM PLATED STEEL, 2 REQD.
|
ALL VEHICLES |
$ 5.50 EA.
|
| OEM |
636528 |
LOCKWASHER, INTERNAL TOOTH, GRADE 10 CADMIUM PLATED STEEL, 2 REQD.
|
ALL VEHICLES |
$ 1.25 EA
|
| OEM |
636577 |

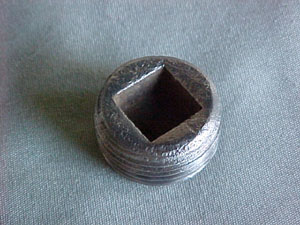

PLUG, DRAIN, COUNTERSUNK HEAD.
|
ALL VEHICLES |
$ 3.50 |
| OEM |
636577-M |
PLUG, DRAIN, MAGNETIC, COUNTERSUNK HEAD.
|
ALL VEHICLES
|
$ 5.50 |
|
| |
 |
| 16380 |
$ 22.50 |
|
 |
| 15366 |
$ 22.50 |
|
|
| |
 |
| 17865 |
$ 22.50 |
|
 |
| 636527 |
$ 5.50 EA.
|
|
|
| |
 |
| 636528 |
$ 1.25 EA.
|
|
 |
| 636577 |
$ 3.50 |
|
|
| |
 |
| 636577-M |
$ 5.50 |
|
| |
|
ALL REAR AXLE HOUSINGS ARE SOLD AS TAKE OUT ( T/O ) IN USED BUT SERVICEABLE CONDITION. THESE HOUSINGS HAVE BEEN STRIPPED OF ALL PARTS BUT DO INCLUDE THE DIFFERENTIAL BEARING CAPS AND BOLTS.
|
|
| |
| 22-02B REAR AXLE COVERS AND PARTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| NOS |
642248 NOS
|
COVER, REAR AXLE, MODEL 23 & 27.
|
4-63,4-75,6-85 VJ/SW/SD
DJ-3A |
$ 45.00 |
| T/O |
641380 909304
|
COVER, REAR AXLE, MODEL 23, 25 AND 27.
|
4-63,4-75,6-85 VJ/SW/SD
DJ-3A |
$ 45.00 |
| T/O |
639821 |
COVER, REAR AXLE, MODEL 41.
|
LATE CJ-2A |
$ 86.50 |
| T/O |
802897
|
COVER, REAR AXLE, MODEL 44.
|
CJ-3A/3B/5/6 FC-150/M38/M38A1 SW/SD |
$ 45.00 |
| T/O |
805309 |
COVER, REAR AXLE, MODEL 53.
|
UTILITY PU/FC-170 |
$ 86.50 |
| T/O |
A-5227 |
BRACKET, BRAKE TEE, MODEL 23.
|
4-63,4-75,6-85 VJ/SW/SD |
$ 22.50 |
| T/O |
640944 |
BRACKET, BRAKE TEE, MODEL 41.
|
LATE CJ-2A |
$ 22.50 |
| T/O |
802509 |
BRACKET, BRAKE TEE, MODEL 44.
|
CJ-3A/3B/5/6 FC-150/M38/M38A1 SW/SD |
$ 22.50 |
| OEM |
A-870
|
VENT PLUG, AXLE HOUSING.
|
MB/GPW M38/M38A1 |
$ 15.50 |
| T/O |
137419 |

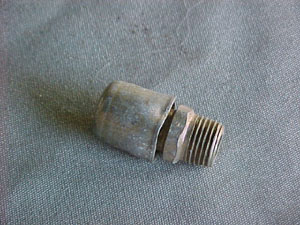

ELBOW, AXLE VENT PLUG.
|
M38/M38A1 |
$ 3.75 |
OEM
|
636538 |

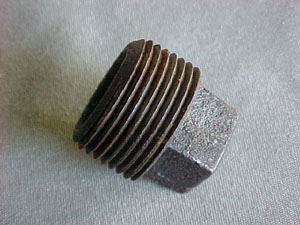

FILL PLUG.
|
ALL VEHICLES |
$ 3.50 |
| OEM |
636577 |
FILL PLUG.
|
M38/M38A1 |
$ 2.50 |
| OEM |
51523K |
COVER MOUNT KIT WITH 5/16" GRADE 8 CAPSCREWS WITH CORRECT EXTERNAL TOOTHED LOCK WASHERS.
|
MODEL 25 AND 27 REAR AXLES
|
$ 7.50 |
OEM
|
636573K |
COVER MOUNT KIT WITH 3/8" GRADE 8 CAPSCREWS WITH CORRECT EXTERNAL TOOTHED LOCK WASHERS.
|
MODEL 41 REAR AXLES
|
$ 7.50 |
OEM
|
806984K |
COVER MOUNT KIT WITH 5/16" GRADE 8 CAPSCREWS WITH CORRECT EXTERNAL TOOTHED LOCK WASHERS.
|
MODEL 44 REAR AXLES
|
$ 7.50 |
| OEM |
800230K |
COVER MOUNT KIT WITH 5/16"
GRADE 8 CAPSCREWS WITH CORRECT EXTERNAL TOOTHED LOCK WASHERS.
|
MODEL 53 REAR AXLES |
$ 7.50 |
| T/O |
MISC. |
REAR AXLE TAGS.
|
ALL VEHICLES |
$ 12.50 EA.
|
|
| |
|
|
| |
642248 |
$ 45.00
|
|
|
639821 |
$ 86.50
|
|
|
| |
|
|
| |
802897 |
$ 45.00
|
|
|
805309 |
$ 86.50
|
|
|
| |
|
|
| |
A-5227 |
$ 22.50
|
|
|
640944 |
$ 22.50
|
|
|
| |
|
|
| |
802509 |
$ 22.50
|
|
|
A-870 |
$ 15.50 EA.
|
|
|
| |
|
|
| |
137419 |
$ 3.75
|
|
|
636538 |
$ 3.50
|
|
|
| |
|
|
| |
636577 |
$ 2.50
|
|
|

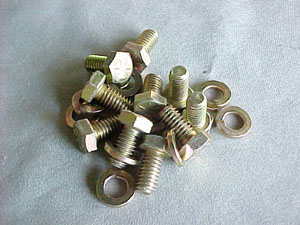

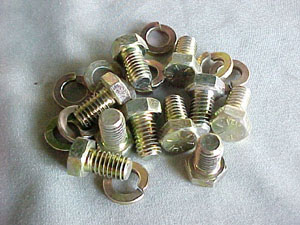

TYPICAL COVER MOUNT KIT |
|
|
| |
|
|
| REAR AXLE TAGS |
$ 12.50 EA.
|
|
| |
| |
| 22-02C REAR AXLE COVER GASKETS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-782/ 934932-R
|
COVER GASKET, MODEL 23/25/27.
|
2WD VJ/SW/SD
DJ-3A |
$ 3.95 |
| NOS |
A-782 934932 NOS
|
COVER GASKET, MODEL 23/25/27.
|
2WD VJ/SW/SD
DJ-3A |
$ 12.50 |
| OEM |
A-782 934932
|
COVER GASKET, MODEL 23/27

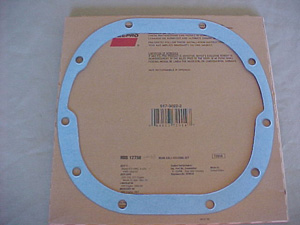

FEL-PRO USA BRAND.
|
2WD VJ/SW/SD
DJ-3A |
$ 9.50 |
| RPL |
639957-R |
COVER GASKET, MODEL 41.
|
CJ-2A |
$ 3.95
|
| NOS |
639957 NOS
|
COVER GASKET, MODEL 41.
|
CJ-2A |
$ 12.50 |
| RPL |
802556-R |
COVER GASKET, MODEL 44.
|
CJ-3A/3B/5/6 FC-150/M38/M38A1 SW/SD |
$ 3.95 |
| OEM |
802556 |
COVER GASKET, MODEL 44.

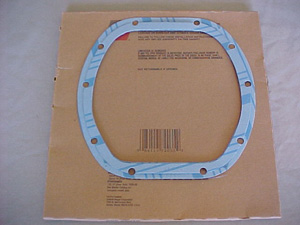

FEL-PRO USA BRAND.
|
CJ-3A/3B/5/6 FC-150/M38/M38A1 SW/SD |
$ 9.50 |
| RPL |
929876-R 805310-R |
COVER GASKET, MODEL 53.
|
PU/FC-170 |
$ 5.50 |
| OEM |
805310 929876
|
COVER GASKET, MODEL 53.
FEL-PRO USA BRAND.
|
PU/FC-170 |
$ 9.50 |
|
| |
|
|
| |

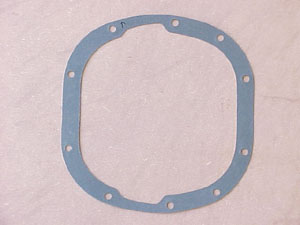

MODEL 23/25/27 COVER GASKET
|
|
|
MODEL 41 COVER GASKET
|
|
| |
|
|
| |

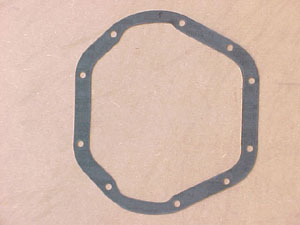

MODEL 44 COVER GASKET
|
|
|
MODEL 53 COVER GASKET
|
|
|
| |
