14-01 RADIATORS, RADIATOR CAPS AND SURGE TANKS
|
14-01A NEW REPLACEMNT RADIATORS
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
|
RPL
|
640145-R
|

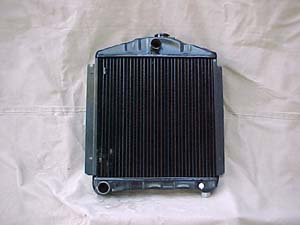

RADIATOR ASSY., WITH SHROUD ,2 ROW, MOUNTS ON FRONT CROSSMEMBER WITH 2 BOLTS.
|
MB/GPW CJ-2A/M38
|
$ 429.50
|
|
RPL
|
908028-R
|
RADIATOR ASSY., 2 ROW, MOUNTS ON GRILL WITH 4 BOLTS.
|
CJ-5/6 WITH F-4-134 ENGINE
|
$ 449.50
|
|
WE SELL REBUILT ORIGINAL MADE IN THE USA RADIATORS
|
CALL US WITH YOUR NEEDS
|
| 14-01B RADIATOR CAPS |
|
A LITTLE BIT ABOUT RADIATOR CAPS
Your vehicles cooling sytem is pressurized. The coolant operating pressure is regulated by the rating of the radiator cap which contains a relief valve. All radiators are equipped with pressure caps that reduce evaporation of the cooling system and make the engine more efficient by permitting slightly higher operating temperatures. When operating properly, the pressure cap permits pressure to build-up in the cooling system during periods of severe heat load. This pressure increases the boiling point of the coolant and thus reduces overflow losses. When the coolant heats up it expands causing the pressure to build up.
The effectiveness of the radiator cap is limited by its operating pressure and the boiling point of the coolant. All quality radiator caps will have their pressure rating marked on the cap. When a new radiator cap is required , always replace it with a cap of the same type and pressure rating specified. The correct and properly operating radiator cap prevents high pressure coolant from rupturing the radiator, gaskets, seals and hoses.
All Willys vehicles use two basic types of radiatior caps. The MB/GPW/M38/M38A1 and the CJ-2A and some CJ-3A/CJ-5/6 vehicles use a very low pressure cap of just 4 lbs. These radiators have a filler neck with a 2 1/8" inside diameter. All other vehicles use higher pressure caps that are installed on radiators with filler necks with a 1 5/8" inside diameter.
Some MB/GPW and CJ-2A vehicles were equipped with hot climate kits that employ a grille mounted surge tank. This surge tank has a filler neck with a 2 1/8" inside diameter. The Foward Control trucks have a closed cooling system that employs a coolant surge tank. These surge tanks have a filler neck with a 1 5/8" inside diameter.
|
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
|
OEM
|
A-1215
|
CAP, FILLER, RADIATOR, 4 LBS. FOR 2 1/8" I.D. FILLER NECK.
|
MB/GPW/CJ-2A/3A M38/M38A1/EARLY TRUCKS
|
$ 14.50
|
|
OEM
|
801728 7375030
|
CAP, FILLER, RADIATOR, WITH SAFTEY CHAIN, 7 LBS. FOR 2 1/8" I.D. FILLER NECK.
|
M38/M38A1/M151 THIS CAP CAN BE USED ON THE VEHICLES LISTED ABOVE.
|
$ 14.50
|
| OEM |
648360 |

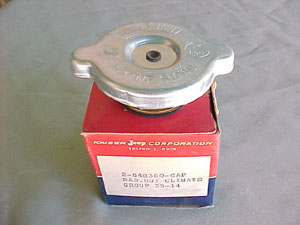

CAP, FILLER, RADIATOR, 7 LBS. FOR 1 5/8" I.D. FILLER NECK.
|
CJ-3A/3B/DJ-3A/CJ-5/6 VJ/SW/SD/PU |
$ 12.50 |
| OEM |
648360-LV |
CAP, FILLER, RADIATOR, 7 LBS. SAFTEY TYPE WITH LEVER VENT FOR 1 5/8" I.D. FILLER NECK.
|
CJ-3A/3B/DJ-3A/CJ-5/6 VJ/SW/SD/PU |
$ 14.50 |
| OEM |
912609 |
CAP, FILLER, RADIATOR, 13 LBS. FOR 1 5/8" I.D. FILLER NECK.
|
V6-225/OHC-6-230 LATE L-6-226 SW/SD/PU
|
$ 12.50 |
| OEM |
912609-LV |
CAP, FILLER, RADIATOR, 13 LBS. SAFTEY TYPE WITH LEVER VENT FOR 1 5/8" I.D. FILLER NECK.
|
V6-225/OHC-6-230 LATE L-6-226 SW/SD/PU
|
$ 12.50 |
|
 |
| A-1215 |
$ 14.50 |
|
 |
| 801728/7375030 |
$ 14.50 |
|
|
 |
| 648360 |
$ 12.50 |
|
 |
| 648360-LV |
$ 14.50 |
|
|
 |
| 912609 |
$ 12.50 |
|
 |
| 912609-LV |
$ 12.50 |
|
|
|
14-01C RADIATOR SURGE TANKS AND CAPS
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
|
RPL
|
920452-R
|

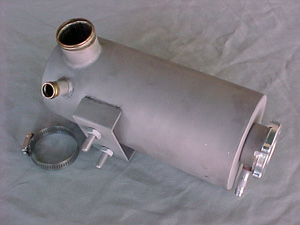

RADIATOR SURGE TANK.
|
FC-150 |
NLA
|
|
RPL
|
920453-R
|

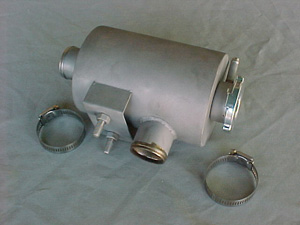

RADIATOR SURGE TANK.
|
FC-170 |
NLA
|
|
OEM
|
A-1215
|
SURGE TANK CAP, 4 LBS. FOR 2 1/8" I.D. FILLER NECK.
|
MB/GPW/CJ-2A |
$ 14.50
|
|
OEM
|
648360
|
SURGE TANK CAP, 7 LBS. FOR 1 5/8" I.D. FILLER NECK.
|
FC-150/170 |
$ 12.50
|
| OEM |
648360-LV |
SURGE TANK CAP, 7 LBS. SAFTEY TYPE WITH LEVER VENT FOR 1 5/8" I.D. FILLER NECK.
|
FC-150/170 |
$ 14.50 |
|
 |
| 920452-R |
NLA |
|
 |
| 920453-R |
NLA |
|
|
| |
|
| A-1215 |
$ 14.50
|
|
|
| 648360 |
$ 12.50 |
|
|
| |
|
| 648360-LV |
$ 14.50 |
|
| |
| |
| 14-01D RADIATOR DRAIN COCK |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
A-1126 |

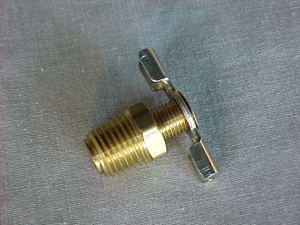

RADIATOR DRAIN COCK, LOWER
RADIATOR TANK AND ENGINE BLOCK, 2 REQD.
|
ALL VEHICLES |
$ 7.50 EA.
|
|
| |
|
|
|
|
| |
14-01E RADIATOR MOUNTING PARTS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
A-1217 |
ROD, BRACE, RADIATOR, TWO THREADED ENDS, 23 3/4" LONG. MOUNTS ON A COWL AND BRACKET ON TOP OF RADIATOR.
|
MB/GPW CJ-2A/M38 |
$ 26.50
|
| OEM |
355762-K |
KIT, RADIATOR MOUNTING, INCLUDES CARRIAGE BOLTS, RUBBER SHIMS, NUTS AND WASHERS, FOR BOTTOM MOUNTED RADIATORS.
|
MB/GPW CJ-2A/M38 |
$ 8.50
|
| OEM |
648438 |
BOLT AND WASHER, ACME TYPE, FOR USE WITH 5/16-10 TINNERMAN SPEED NUTS, 4 REQD.
|
CJ-3A/3B/5/6 DJ-3A/M38A1 VJ/SW/SD/PU WITH SIDE MOUNT RADIATOR
|
$ 1.50 EA.
|
| OEM |
648439 800319
|
NUT, SPEED, TINNERMAN, 5/16-10, CLIP-ON. 4 REQD.
|
CJ-3A/3B/5/6 DJ-3A/M38A1 VJ/SW/SD/PU WITH SIDE MOUNT RADIATOR |
$ 1.75 EA.
|
|
| |
 |
| 355762-K |
$ 8.50 |
|
 |
| 648438 |
$ 1.50 EA.
|
|
|
| |
|
648439/800319
|
$ 1.75 EA.
|
|
| |
| |
|
