10-16A-1-A-1
A-1230 FRAM AND PUROLATOR OIL FILTER
FOR THE MB/GPW/CJ-2A AND M38

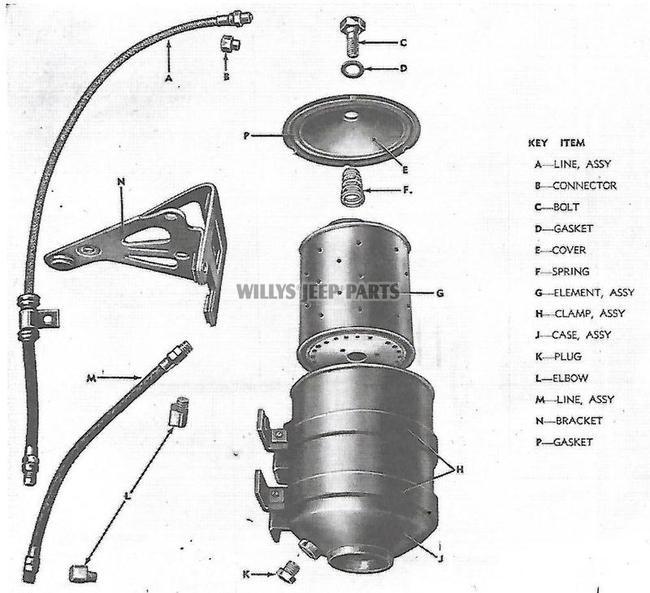

A-1230 OIL FILTER ASSEMBLY AND PARTS
A-1230 OIL FILTER ASSEMBLY AND PARTS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE

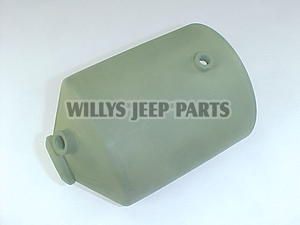

T/O A-6818

CASE ASSEMBLY, OIL FILTER, 5" DIAMETER, FRAM AND PUROLATOR BRANDS.

MB/GPW CJ-2A M38/M38A1
$ 175.00

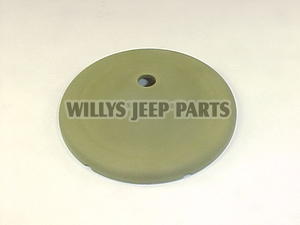

T/O A-1231

COVER ASSEMBLY, OIL FILTER, 5" DIAMETER, FRAM AND PUROLATOR BRANDS.

MB/GPW CJ-2A M38/M38A1
$ 48.50
RPL A-1232-K

BOLT, SPECIAL, COVER HOLD DOWN, INCLUDES WASHER AND COPPER GASKET.

MB/GPW CJ-2A M38/M38A1
$ 4.50
RPL A-1233

GASKET, COVER BOLT, COPPER, 7/16" I.D. X 1" O.D., USA MADE.

MB/GPW CJ-2A M38/M38A1
$ 2.25
OEM A-1236 119952

ELEMENT ASSEMBLY, OIL FILTER, INCLUDES RUBBER COVER GASKET , WIX USA BRAND.

MB/GPW CJ-2A M38/M38A1
$ 18.50
RPL A-1235

GASKET, COVER , RUBBER, 5 1/8" O.D. X 4 1/4" I.D., USA MADE.

MB/GPW CJ-2A M38/M38A1
$ 2.50

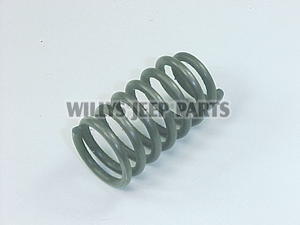

T/O A-1234

SPRING, COVER BOLT, FOR USE ON COVERS WITHOUT FIXED SPRINGS.

MB/GPW CJ-2A M38/M38A1
$ 16.50
T/O A-1251

CLAMP WITH SCREW, LOCK WASHER AND SQUARE NUT, 2 REQD., ORIGINAL USA FRAM AND PUROLATOR BRANDS.

MB/GPW CJ-2A M38/M38A1
$ 32.50

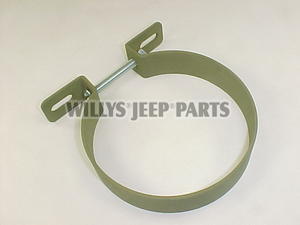

RPL A-1251-R

CLAMP, WITH SCREW, LOCK WASHER AND SQUARE NUT, 2 REQD. USA MADE.

MB/GPW CJ-2A M38/M38A1
$ 22.50

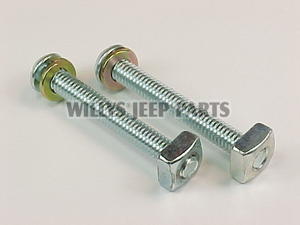

RPL 133129

SCREW, LOCKWASHER AND SQUARE NUT, OIL FILTER CLAMP, 2 REQD.

MB/GPW CJ-2A M38/M38A1
$ 2.50 EA.
T/O A-1274

BRACKET, MOUNTING ASSEMBLY ORIGINAL USA MADE, MOUNTS ON CYLINDER HEAD.

MB/GPW CJ-2A M38/M38A1
$ 48.50
RPL A-1274-R

BRACKET, MOUNTING ASSEMBLY, OFF SHORE BRAND, MOUNTS ON CYLINDER HEAD

MB/GPW CJ-2A M38/M38A1
$ 36.50
RPL 638635-K

MOUNTING KIT, OIL FILTER MOUNTING BRACKET TO CYLINDER HEAD, INCLUDES HEAD BOLTS, HEAD STUD NUTS AND FLAT WASHERS, GRADE 8, YELLOW ZINC PLATED.

MB/GPW CJ-2A M38/M38A1
$ 10.50
RPL 51396K

MOUNTING KIT, OIL FILTER TO BRACKET, INCLUDES BOLTS, FLAT WASHERS AND LOCK WASHERS, YELLOW ZINC PLATED

MB/GPW CJ-2A M38/M38A1
$ 4.50
RPL A-1197-R

LINE, FLEXIBLE, OIL FILTER INLET, 21 1/2" LONG, WITH TWO MALE FLARED ENDS, ATTACHES TO TOP OF OIL FILTER AND ENGINE BLOCK BELOW FUEL PUMP.

MB/GPW CJ-2A M38/M38A1
$ 12.50
OEM A-1289

CLIP AND LOOM, OIL INLET LINE TO FRONT ENGINE PLATE, INCLUDES THE PROTECTIVE CLOTH LOOM, 1/2" DIA., WITH 3/8" BOLT HOLE.

MB/GPW CJ-2A M38/M38A1
$ 2.50
OEM 662276

GROMMET, OIL FILTER INLET LINE THROUGH OIL FILTER MOUNTING BRACKET.

MB/GPW CJ-2A M38/M38A1
$ 3.75
RPL A-1198-R

LINE, FLEXIBLE, OIL FILTER INLET, 10 1/4" LONG, WITH TWO MALE FLARED ENDS, ATTACHES TO BOTTOM OF FILTER AND ENGINE TIMING COVER.

MB/GPW CJ-2A M38/M38A1
$ 9.50
OEM 387891

CONNECTOR, BRASS, OIL FILTER INLET TO TOP SIDE OF FILTER CASE.

MB/GPW CJ-2A M38/M38A1
$ 3.75
OEM 384569

ELBOW, 90, BRASS, OIL FILTER OUTLET LINE TO BOTTOM OF CASE AND SIDE OF ENGINE BLOCK, 2 REQD.

MB/GPW CJ-2A M38/M38A1
$ 3.75
OEM A-1237

PLUG, DRAIN BRASS, BOTTOM OF FILTER CASE.

MB/GPW CJ-2A M38/M38A1
$ 3.75

A-6818

$ 175.00

A-1231
$ 48.50

A-1232-K
$ 4.50

A-1233 $ 2.25 EA.

A-1236/119952
$ 18.50

A-1235
$ 2.50 EA.

A-1234
$ 16.50

A-1251-R
$ 22.50

133129
$ 2.50 EA.

A-1274-R
$ 36.50

638635-K
$ 10.50

51396-K
$ 4.50

A-1197-R
$ 12.50

A-1289 CLIP AND LOOM
$ 2.50

662276
$ 3.75 EA.

A-1198-R
$ 9.50
387891
$ 3.75 EA.
384569
$ 3.75 EA.
A-1237 $ 3.75 EA.
