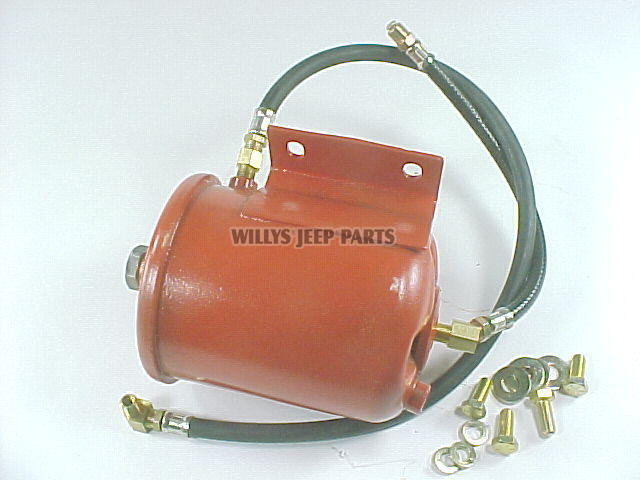

643147-K  FRAM OIL FILTER KIT
             FOR THE CJ-2A/3A/VJ/SW/SD/PU

643147-K $ 225.00

THIS KIT INCLUDES AN ORIGINAL FRAM OIL FILTER ASSEMBLY, A NEW WIX OIL FILTER ELEMENT, INLET AND OUTLET HOSES, THE THREE BRASS FITTINGS, A BRASS DRAIN PLUG AND THE OIL FILTER TO MOUNTING BRACKET BOLT KIT.

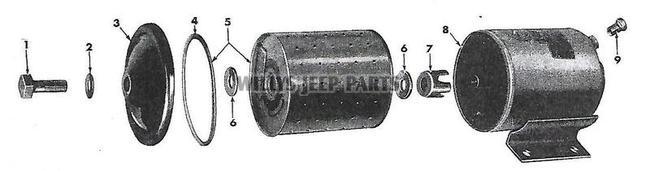

           64314 OIL FILTER ASSEMBLY AND PARTS

           64314 OIL FILTER ASSEMBLY AND PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
T/O 647342



OIL FILTER ASSEMBLY INCLUDES BODY COVER, WELDED MOUNTING BRACKET, FRAM BRAND USES A 4" DIAMETER ELEMENT.

 CJ-2A/3A VJ/SW/SD/PU
$ 175.00
OEM 909335



ELEMENT ASSEMBLY, OIL FILTER, INCLUDES COVER GASKET, FOR USE WITH 4" DIAMETER FILTER.

 CJ-2A VJ/SW/SD/PU $ 14.50
RPL

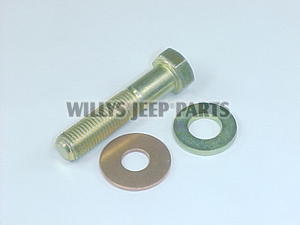

BOLT, SPECIAL, COVER HOLD DOWN, INCLUDES WASHER AND COPPER GASKET 7/16".

 CJ-2A VJ/SW/SD/PU $ 4.50
RPL 647343

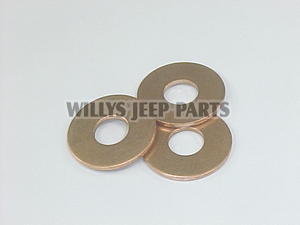

GASKET, COVER BOLT, COPPER.

 CJ-2A VJ/SW/SD/PU $ 2.50
T/O A-1274



BRACKET, MOUNTING ASSEMBLY, ORIGINAL USA MADE, MOUNTS ON CYLINDER HEAD.

 CJ-2A VJ/SW/SD/PU $ 48.50
RPL A-1274-R



BRACKET, MOUNTING ASSEMBLY, OFF SHORE BRAND, MOUNTS ON CYLINDER HEAD.



 CJ-2A VJ/SW/SD/PU $ 36.50
RPL 51396-K



MOUNTING KIT, OIL FILTER TO BRACKET, INCLUDES BOLTS, FLAT WASHERS AND LOCK WASHERS, YELLOW ZINC PLATED.



 CJ-2A VJ/SW/SD/PU $ 4.50
RPL 638635-K



MOUNTING KIT, OIL FILTER MOUNTING BRACKET TO CYLINDER HEAD, INCLUDES HEAD BOLTS, HEAD STUD NUTS AND FLAT WASHERS, GRADE 8, YELLOW ZINC PLATED.



 CJ-2A VJ/SW/SD/PU $ 10.50
RPL 647584-R



LINE, FLEXIBLE, OIL FILTER INLET, 22 1/2" LONG, WITH TWO MALE FLARED ENDS, ATTACHES TO TOP OF OIL FILTER AND ENGINE BLOCK BELOW FUEL PUMP.



 CJ-2A VJ/SW/SD/PU $ 9.50
OEM A-1289



 CLIP AND LOOM, OIL INLET LINE TO FRONT ENGINE PLATE, INCLUDES THE PROTECTIVE CLOTH LOOM, 1/2" DIA., WITH 3/8" BOLT HOLE.

 CJ-2A VJ/SW/SD/PU $ 2.50
OEM 662276



GROMMET, OIL FILTER INLET LINE THROUGH OIL FILTER MOUNTING BRACKET.

 CJ-2A VJ/SW/SD/PU $ 3.75
RPL A-1198-R



LINE, FLEXIBLE, OIL FILTER INLET,10 1/2" LONG, WITH TWO MALE FLARED ENDS, ATTACHES TO BOTTOM OF FILTER AND ENGINE TIMING COVER.



 CJ-2A VJ/SW/SD/PU $ 9.50
OEM 387891



CONNECTOR, BRASS, OIL FILTER INLET TO TOP SIDE OF FILTER CASE.

 CJ-2A VJ/SW/SD/PU $ 3.75
OEM 54006



ELBOW, 45°, BRASS, OIL FILTER OUTLET,  ATTACHES TO BOTTOM OF FILTER.

 CJ-2A VJ/SW/SD/PU $ 3.75
OEM 384569



ELBOW, 90°, BRASS, OIL FILTER INLET, ATTACHES TO ENGINE BLOCK BELOW FUEL PUMP.

 CJ-2A VJ/SW/SD/PU $ 3.75
OEM A-1237



PLUG, DRAIN BRASS, BOTTOM OF FILTER CASE.

 CJ-2A VJ/SW/SD/PU $ 3.75


  647342

$ 175.00

    909335
$ 14.50




$ 4.50

647343 $ 2.50 EA.


A-1274-R
$ 36.50

51396-K
$ 4.50


638635-K
$ 10.50

647584-R
$ 9.50


A-1289 CLIP AND LOOM $ 2.50

662276
$ 3.75 EA.


A-1198-R
$ 9.50

387891 $ 3.75 EA.

54006
$ 3.75 EA.
384569
$ 3.75 EA.

A-1237 $ 3.75 EA.
