12-02 FUEL TANK GAUGES (FUEL TANK SENDING UNITS)

12-02A REPLACEMENT FUEL GAUGE TANK UNITS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
RPL	A-1292	FUEL GAUGE, TANK UNIT, 5 SCREW, INCLUDES GASKET, OHM RANGE: FULL 5-10, EMPTY 135-140.	MB/GPW	$ 59.50
RPL	640694	FUEL GAUGE, TANK UNIT, 5 SCREW, INCLUDES GASKET, OHM RANGE: FULL 7-9, EMPTY, 130-140.	CJ-2A/3A/3B	$ 48.50
RPL	914850	FUEL GAUGE, TANK UNIT, 6 SCREW, INCLUDES GASKET, OHM RANGE: FULL 8.5-10.5, EMPTY 70-80.	CJ-3B/5/6	$ 48.50
RPL	948697	FUEL GAGE, TANK UNIT, LOCK RING TYPE, WITHOUT FUEL RETURN LINE, INCLUDES LOCK RING AND GASKET, OHM RANGE: FULL 8.5-10.5, EMPTY 70-80.	CJ-5/6 WITH F-4-134 ENGINE	$ 48.50
RPL	948696	FUEL GAUGE, TANK UNIT, LOCK RING TYPE, WITH FUEL RETURN LINE, INCLUDES LOCK RING AND GASKET, OHM RANGE: FULL 8.5-10.5, EMPTY 70-80.	CJ-5/6 WITH V-6-225 ENGINE	$ 48.50
RPL	800201	FUEL GAUGE, TANK UNIT, 5 SCREW, INCLUDES GASKET.	M38	$ 48.50
RPL	810284	FUEL GAUGE, TANK UNIT, 5 SCREW, INCLUDES GASKET	M83A1	$ 110.00
RPL	8376496	FUEL GAUGE, TANK UNIT, 5 SCREW, INCLUDES GASKET	M151	$ 45.50
RPL	914848	FUEL GAUGE, TANK UNIT, 6 SCREW, INCLUDES GASKET, OHM RANGE: FULL 8.5-10.5, EMPTY 70-80.	VJ/SW/SD	$ 48.50
RPL	914849	FUEL GAUGE, TANK UNIT, 6 SCREW, INCLUDES GASKET, OHM RANGE: FULL 8.5-10.5, EMPTY 70.-80.	2WD/4WD PU	$ 58.50
RPL	914852	FUEL GAUGE, TANK UNIT, 6 SCREW, INCLUDES GASKET, OHM RANGE: FULL 5-10, EMPTY 90-100.	FC-150	$ 78.50
RPL	912760	FUEL GAUGE, TANK UNIT, 6 SCREW, INCLUDES GASKET, OHM RANGE: FULL 5-10, EMPTY 90-100.	FC-170	$ 78.50

A-1292

$ 59.50

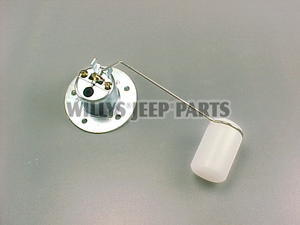

640694

$ 48.50

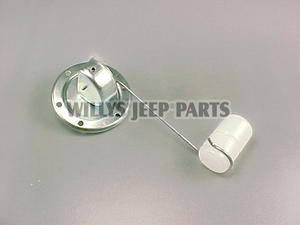

914850

$ 48.50

948697

$ 48.50

948696

$ 48.50

800201

$ 45.50


810284	$ 110.00


8376496	$ 45.50


914848	$ 48.50


914849	$ 58.55


914852	$ 78.50


912760	$ 78.50

NOTE- WILLYS JEEP PARTS OFFERS MORE OEM WILLYS PARTS THAN ANYONE-ANYWHERE

CAUTION! Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate tools and manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components. In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors

12-02B FUEL TANK GAUGE TANK UNITS PARTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
NOS	635641 NOS	GASKET,FUEL GAUGE, TANK UNIT, 6 SCREW, MADE IN THE USA.	ALL VEHICLES WITH 6 SCREW UNITS	$ 6.50
RPL	635641-R	GASKET, FUEL GAUGE, TANK UNIT, 6 SCREW, MADE IN THE USA.	ALL VEHICLES WITH 6 SCREW UNITS	$ 5.50
NOS	648927 NOS	GASKET, FUEL GAUGE, TANK UNIT, 5 SCREW, MADE IN THE USA.	ALL VEHICLES WITH 5 SCREW UNITS	$ 6.50
RPL	648927-R	GASKET, FUEL GAUGE, TANK UNIT, 5 SCREW, MADE IN THE USA.	ALL VEHICLES WITH 5 SCREW UNITS	$ 5.50
OEM	808137	SCREW, FUEL GAUGE TANK UNIT, 3/8" LONG, GR. 8, CAD PLATED.	ALL VEHICLES	$ 0.75
OEM	809251	SCREW, FUEL GAUGE TANK UNIT, 7/16" LONG, GR. 8, CAD PLATED.	M38/M38A1/M151	$ 0.75
OEM	52705	LOCKWASHER, SPLIT TYPE, FOR TANK UNIT SCREWS.	ALL VEHICLES	$ 0.75
OEM	929669	LOCKING RING, FUEL GAUGE, TANK UNIT.	LATE CJ-5/6	$ 3.50
OEM	942521	GASKET, FUEL GAUGE, TANK UNIT, FOR LOCKING RING TYPE GAUGES.	LATE CJ-5/6	$ 3.50
OEM	A-9202	BRASS FLOAT FOR TANK UNIT.	FITS ALL TANK UNITS	$ 18.50
RPL	535737	PLASTIC FLOAT FOR TANK UNIT.	FITS ALL TANK UNITS	$ 5.50


635641-NOS	$ 6.50 EA.


635641-R	$ 5.50


648927-NOS	$ 6.50 EA.


648927-R	$ 5.50


TANK UNIT SCREWS	$ 0.75 EA.


52705	$ 0.75 EA.


929669	$ 3.50


941521	$ 3.50


A-9202	$ 18.50


535737	$ 5.50

PLEASE REFER TO GROUP 16-01 FOR FUEL TANK LEVEL DASHBOARD GAUGES
