12-06 FUEL PUMPS

12-06A AC, CARTER AND AIRTEX FUEL PUMPS

ALL FUEL PUMPS INCLUDE FEL-PRO MOUNTING GASKETS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
RPL	A-1220	FUEL PUMP WITH GLASS GASOLINE SEDIMENT BOWL ON TOP, WITH PRIMER LEVER, EXACT COPY OF AC FUEL PUMP #AC-1537766.	MB/GPW CJ-2A/3A ALL L-4-134 ENGINES	$ 138.50
RPL	A-8323	FUEL PUMP WITH METAL GASOLINE SEDIMENT BOWL ON TOP, WITH PRIMER LEVER, BRASS FITTINGS AND MOUNTING HARDWARE, EXACT COPY OF AC FUEL PUMP #AC-1538886.	MB/GPW CJ-2A/3A ALL L-4-134 ENGINES	$ 138.50
RPL	119238	FUEL PUMP WITH GLASS GASOLINE SEDIMENT BOWL ON TOP, SAME PUMP AS A-1220 ABOVE BUT WITH OUT THE PRIMER LEVER.	ALL L-4-134	$ 34.50

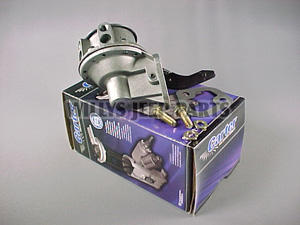

RPL	640160	FUEL PUMP, WITH METAL TOP, NO STRAINER, CARTER USA.	ALL L-4-134	$ 78.50
RPL	647911	FUEL AND VACUUM PUMP, AIRTEX USA.	CJ-3A 4-63/4-73/4-75 VJ/SW/SD/PU WITH L-4-134 ENGINES	$ 154.50

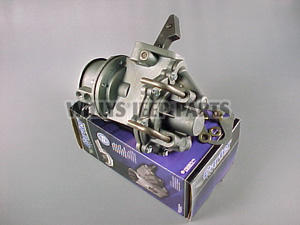

RPL	120206	FUEL AND VACUUM PUMP, CARTER USA.	ALL F-4-134 ENGINES	$ 143.50

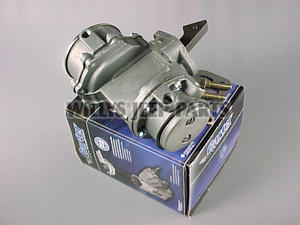

RPL	735994	FUEL AND VACUUM PUMP, CARTER USA.	ALL L-6-226 ENGINES	$ 274.50
RPL	6414989	FUEL PUMP, AIRTEX USA.	1967-71 CJ-5/6 C101 COMMANDO WITH V6-225 ENGINE	$ 62.50
RPL	6416783	FUEL PUMP, CARTER USA.	1967-71 CJ-5/6 C101 COMMANDO WITH V6-225 ENGINE	$ 74.50
RPL	11640994-R1	FUEL PUMP.	M151	$ 168.50
RPL	11640994-R2	FUEL PUMP, SAME AS 11640994-R1, BUT WITHOUT TUBE FOR CRANKCASE VENT, AIRTEX USA.	M151	$ 88.50

119238

$ 74.50

640160

$ 78.50

647911

$ 154.50

120206

$ 143.50

735994

$ 274.00

6414989

$ 62.50


6416783	$ 74.50


11640994-R1	$ 168.50


11640994-R2	$ 88.50

12-06B REBUILT FUEL PUMPS

ALL FUEL PUMPS INCLUDE FEL-PRO MOUNTING GASKETS

PREFIX

PART NO.

DESCRIPTION

APPLICATION

PRICE

R/B

120208 R/B

FUEL AND VACUUM PUMP, WATERPROOF, AC #9917.

M38/M38A1

$ 395.00

R/B

640160 646248 R/B

FUEL PUMP, AC #153886, WITH METAL TOP.

CJ-2A

CAN BE USED ON THE MB & GPW

$ 198.50*

*NOTE- YOUR REBUILDABLE CORE IS REQUIRED BEFORE WE SHIP THESE FUEL PUMPS*


120208-R/B	$ 395.00


640160/646248-R/B	$ 198.50

12-06C FUEL PUMP PARTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

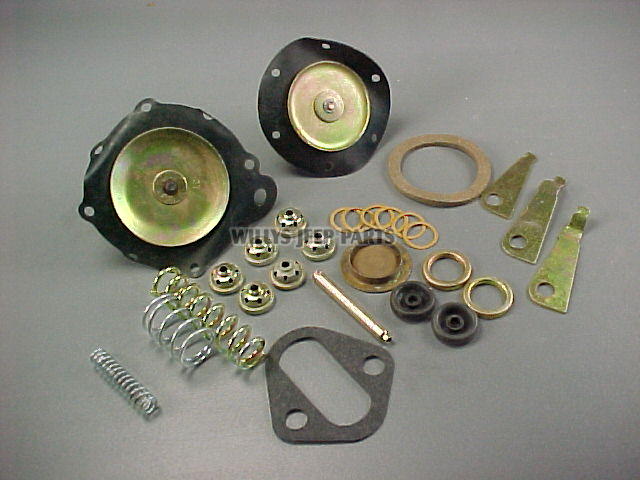

RPL	640586	REPAIR KIT, FUEL PUMP, COMPLETE. USE THIS KIT TO REBUILD OUR SINGLE ACTION (FUEL ONLY) PUMPS LISTED ABOVE TO INCLUDE: A-1220, A-8323 AND 119238, MADE IN THE USA BY WJP.	MB/GPW CJ-2A	$38.50
OEM	638737	MOUNTING GASKET, FUEL PUMP TO ENGINE BLOCK, FEL-PRO USA BRAND.	ALL VEHICLES	$ 4.50
RPL	647669	SPACER, FUEL AND VACUUM PUMP TO ENGINE BLOCK, 1/8" THICK, REQUIRES TWO GASKETS, MADE IN THE USA BY WJP.	ALL 4-134 ENGINES WITH FUEL & VACUUM PUMPS	$ 28.50
RPL	647669-K	KIT, FUEL PUMP SPACER, MOUNTING, INCLUDES THE 647669 SPACER, 2 FEL-PRO GASKETS, MOUNTING BLOTS, RECTANGULAR WASHERS AND SPLIT LOCKWASHERS, MADE IN THE USA BY WJP.	ALL 4-134 ENGINES WITH FUEL & VACUUM PUMPS	$ 66.50
RPL	800361	SPACER, FUEL AND VACUUM PUMP, 9/16" THICK, REQUIRES TWO GASKETS, MADE IN THE USA BY WJP. *NOTE- FUEL PUMP SPACERS ARE REQUIRED ON CERTAIN FUEL PUMPS AS THEY REDUCE THE FUEL PRESSURE DELIVERED TO THE CARBURETOR.	M38/M38A1	$ 48.50
RPL	800361-K	KIT, FUEL PUMP SPACER, MOUNTING, INCLUDES THE 800361 SPACER, 2 FEL-PRO GASKETS, MOUNTING BLOTS, RECTANGULAR WASHERS AND SPLIT LOCKWASHERS, MADE IN THE USA BY WJP.	M38/M38A1	$ 66.50
RPL	638995	FUEL PUMP BLOCKOFF PLATE FOR USE WHEN MECHANICAL FUEL PUMP IS DELETED. INCULDES ALL MOUNTING SCREWS AND A FEL-PRO GASKET, MADE IN THE USA BY WJP.	ALL VEHICLES	$ 26.50
NOS	115655 NOS	BOWL, FUEL PUMP, GLASS, MARKED "AC", 2 1/8" O.D., 1 11/16" TALL, USA BRAND.	MB/GPW CJ-2A/3A ALL L-4-134 ENGINES	$ 46.50
OEM	115656	BOWL GASKET, FUEL PUMP, CORK, 2 1/8" O.D., 1 5/8" I.D., FEL-PRO USA BRAND.	MB/GPW CJ-2A/3A ALL L-4-134 ENGINES	$ 3.50
NOS	115656 NOS	BOWL GASKET, FUEL PUMP, CORK, 2 1/8" O.D., 1 5/8" I.D., FEL-PRO USA BRAND.	MB/GPW CJ-2A/3A ALL L-4-134 ENGINES	$ 4.50
OEM	115656-V	BOWL GASKET FUEL PUMP, VITON FUEL RESISTANT RUBBER, 2 1/8" O.D., 1 5/8" I.D., WJP USA BRAND.	MB/GPW CJ-2A/3A ALL L-4-134 ENGINES	$ 4.75
NOS	117137 NOS	BOWL, FUEL PUMP, GLASS, MARKED "AC", 2 1/4" O.D., 1 5/8" TALL, USA BRAND.	ALL 4-134 ENGINES WITH FUEL AND VACUUM PUMPS	$ 46.50
OEM	117139	BOWL GASKET, FUEL PUMP, CORK, 2 1/4" O.D., 1 7/8" I.D., FEL-PRO USA BRAND.	ALL 4-134 ENGINES WITH FUEL AND VACUUM PUMPS	$ 3.50
OEM	384569	ELBOW, BRASS, 90°, FUEL PUMP INLET AND OUTLET PORTS, 2 REQD, MM USA BRAND.	ALL VEHICLES	$ 3.75 EA.
RPL	802040-R	CONNECTION, (HOSE), FLEXIBLE, FUEL LINE FROM TANK TO FUEL PUMP, 7" LONG.	ALL VEHICLES	$ 8.50
RPL	808363	LINE, FLEXIBLE, (HOSE), FUEL LINE FROM TANK TO FUEL PUMP, 7 1/2" LONG. USA MADE EXACT REPRODUCTION.	M38A1	$ 20.50
OEM	38810	NIPPLE, FUEL PUMP INLET AND OUTLET PORTS, USED WITH BULK 3/8" I.D. FUEL HOSE, MM USA BRAND.	MB/GPW CJ-2A SW/SD/PU	$ 3.75

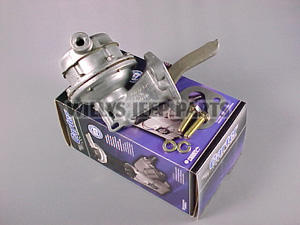

OEM	6428K	KIT, FUEL PUMP MOUNTING, FOR PUMPS 119238/640160/930144, WITH FEL-PRO GASKETS AND GRADE 8 HARDWARE, MADE IN THE USA BY WJP.	MB/GPW CJ-2A SW/SD/PU	$ 6.50
OEM	808268K	KIT, FUEL PUMP MOUNTING, FOR PUMP 120206, WITH FEL-PRO GASKETS AND GRADE 8 HARDWARE, MADE IN THE USA BY WJP.	ALL 4-134 ENGINES WITH FUEL AND VACUUM PUMPS	$ 10.50
OEM	735994K	KIT, FUEL PUMP MOUNTING, FOR PUMP 735994, WITH FEL-PRO GASKET AND GRADE 8 HARDWARE, MADE IN THE USA BY WJP.	ALL L-6-226 ENGINES	$ 5.50
T/O	800741	BOLT, SPECIAL, FUEL PUMP MOUNTING, 4 1/8" LONG.	M38/M38A1	$ 22.50
T/O	809689	BOLT, SPECIAL, FUEL PUMP MOUNTING, 3 1/8" LONG.	M38A1	$ 22.50
RPL	805842	WASHER, SPECIAL, 5/16", RECTANGULAR, FUEL PUMP MOUNTING. USED ON ALL DUAL ACTION FUEL AND VACUUM PUMPS, 2 REQD.	CJ/3A/3B/5/6 FC-150 M38/M38A1 VJ/SW/SD/PU	$ 1.75 EA.

638737

$ 4.50

647669

$ 28.50 EA.


800361	$ 48.50


115655-NOS	$ 46.50


115656	$ 3.50


115656-NOS	$ 4.50 EA.


117137-NOS	$ 46.50


117139	$ 3.50

384569

$ 3.75

802040-R

$ 8.50

808363

$ 20.50

38810

$ 3.75

6428K

$ 6.50

808268K

$ 10.50


735994K	$ 5.50


800741	$ 22.50


809689	$ 22.50


805842	$ 1.75 EA.

12-06D FUEL PUMP REPAIR MANUALS

TM 9-1828A FUEL PUMPS

This is a Department of the Army Technical Manual dated December 1952, 160 pages, 6" x 9", soft cardstock covers, three hole punched and shrink wrapped.

This manual covers the complete disassembly and rebuild procedures for the AC fuel pumps, the Carter mechanical fuel pumps and the Carter electric fuel pumps used on all Willys Jeep Vehicles from 1941 through 1952. Many of these fuel pumps were installed on Jeep Vehicles through 1968. This manual should be used in conjunction with the information contained in the pertinent vehicle operator's manuals and service manuals. TM 9-1828A is the most detailed and informative publication available for early fuel pump maintenance that we have seen to date.


TM 9-1828A FUEL PUMPS	$ 25.00
