15-04B  DISTRIBUTOR CAPS


      OEM DISTRIBUTOR CAPS FOR THE 4-134 ENGINES, USA BRAND

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM A-5295



 DISTRIBUTOR CAP, 2 1/8" I.D. WITH 1/2" CAP LOCATOR TAB, FOR AUTO-LITE/PRESTOLITE IGW DISTRIBUTOR.

 MA/MB/GPW/CJ-2A $ 25.50
OEM A-9307



DISTRIBUTOR CAP, 3 1/2" I.D. WITH 1" CAP LOCATOR TAB, FOR AUTO-LITE/PRESTOLITE IAD DISTRIBUTOR.

MB/GPW/CJ-2A 3A/3B/5/6 /DJ-3A $ 17.50
OEM 118343



DISTRIBUTOR CAP, 2 5/8" I.D. WITH 3/8" CAP LOCATOR TAB, FOR AUTO-LITE/PRESTOLITE IAT/IAY DISTRIBUTOR.

 CJ-3B/5/6/DJ-3A FC-150/VJ/SW/SD/PU $ 16.50
OEM 719913



DISTRIBUTOR CAP, 2 3/4" I.D. WITH 1/4" CAP LOCATOR TAB, FOR DELCO-REMY 1110255/1112432 DISTRIBUTOR.

  CJ-3B/5/6/DJ-3A FC-150/VJ/SW/SD/PU $ 16.50
OEM 118717



 DISTRIBUTOR CAP (IGNITION CAP) WITH OFFSET COIL CONTACT, FOR AUTO-LITE 24 VOLT WATERPROOF DISTRIBUTOR.

 M38/M38A1 M151/M422 $ 42.50

NOTE- THE INSIDE DIAMETER (I.D.) OF THE DISTRIBUTOR CAP IS USUALLY THE SAME AS THE OUTSIDE DIAMETER OF THE DISTRIBUTOR BODY. THE DISTRIBUTOR CAP LOCATOR TAB ON THE INSIDE EDGE OF DISTRIBUTOR CAP FITS INTO THE SLOT ON THE DISTRIBUTOR BODY. THE AUTO-LITE/PRESTOLITE NUMBERS ARE CAST INTO THE BOTTOM OF THE DISTRIBUTOR BODY. THE DELCO-REMY NUMBERS ARE LOCATED ON A TAG ATTACHED TO THE DISTRIBUTOR CAP CLAMP SCREWS.


  A-5295

$ 25.50

    A-9307

$ 17.50




  118343

$ 16.50

    719913

$ 16.50




118717

$ 42.50



     OEM DISTRIBUTOR CAPS FOR THE STRAIGHT SIX CYLINDER ENGINES, USA BRAND

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM IGC-1033

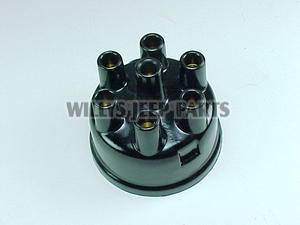

DISTRIBUTOR CAP, 3 1/8" I.D. WITH 1/8" CAP LOCATOR TAB, FOR THE AUTO-LITE IGC DISTRIBUTOR.

SW/SD WITH THE L-6-161 ENGINE
$ 28.50
OEM IAT-1033



DISTRIBUTOR CAP, 2 5/8" I.D. WITH 3/8" CAP LOCATOR TAB, FOR THE AUTO-LITE IAT DISTRIBUTOR.

SW/SD WITH THE F-6-161 ENGINE
$ 28.50
OEM 717426



DISTRIBUTOR CAP, 2 3/4" I.D. WITH 1/4" CAP LOCATOR TAB, FOR THE DELCO-REMY 1110249 DISTRIBUTOR.

SW/SD/PU FC-170 WITH THE L-6-226 ENGINE $ 16.50
OEM 120124 905554



DISTRIBUTOR CAP, 2 3/4" I.D. WITH 1/4" CAP LOCATOR TAB, FOR THE AUTO-LITE/PRESTOLITE IAT  DISTRIBUTOR.

SW/SD/PU FC-170 WITH THE L-6-226 ENGINE
$ 16.50
OEM 931674



 DISTRIBUTOR CAP, 2 5/8" I.D. WITH 3/8" CAP LOCATOR TAB, FOR THE PRESTOLITE IAT DISTRIBUTOR.

SW/SD/PU WITH THE OHC-6-230 ENGINE $ 19.50
OEM 7374880



DISTRIBUTOR CAP (IGNITION CAP) WITH OFFSET COIL CONTACT, FOR THE PRESTOLITE IAD 24-VOLT WATERPROOF DISTRIBUTOR.



M715 WITH THE OHC-6-230 ENGINE
$ 110.00



IGC-1033

$ 28.50



IAT-1033

$ 28.50




  717426

$ 16.50

    120124/905554

$ 16.50


931674 $ 19.50
7374880 $ 110.00

   OEM DISTRIBUTOR CAPS FOR THE V6-225 ENGINE, USA BRAND

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 948872



DISTRIBUTOR CAP, 3 1/8" I.D. WITH A 1/4" CAP LOCATOR TAB FOR THE PRESTOLITE IAT DISTRIBUTOR.

CJ-5/6 WITH THE V6-225 ENGINE $ 28.50
OEM 1957693



DISTRIBUTOR CAP, 3 3/4" I.D. WITH A 3/16" CAP LOCATOR TAB. NUMBER 1 SPARK PLUG WIRE TERMINAL IS MIDWAY BETWEEN THE POINT ADJUSTING WINDOW AND THE CAP HOLD-DOWN SCREW. FOR THE DELCO-REMY 1110322 AND 1110342 DISTRIBUTOR.

CJ-5/6 WITH THE V6-225 ENGINE UP TO 1966
$ 24.50
OEM 1967286



DISTRIBUTOR CAP, 3 3/4" I.D. WITH A 1/4" CAP LOCATOR TAB. NUMBER 1 SPARK PLUG WIRE TERMINAL IS ABOVE THE POINT ADJUSTING WINDOW. FOR THE DELCO-REMY 1110376 DISTRIBUTOR.

CJ-5/6 WITH THE  V6-225 ENGINE AFTER 1966
$ 40.50

948872 $ 28.50
1957693 $ 24.50

1967286 $ 40.50


CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
