| 20A-03 FRONT AXLE DIFFERENTIALS |
|
|
| TYPICAL FRONT AXLE DIFFERENTIAL ASSEMBLY |
| |
| 20A-03A FRONT AXLE DIFFERENTIAL CASE AND OEM TIMKEN BEARINGS |
|
 OEM REBUILT DIFFERENTIAL CASES
|
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
R/B
|
A-793 |
CASE, DIFFERENTIAL, MODEL 25 FRONT AXLE, 8 BOLTS, 8 RIBS, CASTING #16384, 6 3/8" OD, 6 5/16"OAL, USES CARRIER BEARING 52979, 1" THICK.
|
MB/GPW CJ-2A/3A/3B/5/6
FC-150 M38/M38A1 SW/SD/PU |
$ 225.00 |
R/B
|
GP-4206
|
CASE, DIFFERENTIAL, MODEL 25 FRONT AXLE, 8 BOLTS, 8 RIBS, CASTING #16384, FORD SCRIPT, 6 3/8" OD, 6 5/16 OAL, USES CARRIER BEARING 52979, 1" THICK.
|
MB/GPW
|
$ 325.00 |
R/B
|
802562 |
CASE, DIFFERENTIAL, MODEL 44 FRONT AXLE, 10 BOLTS, 10 RIBS, CASTING #18459, 7 1/2" OD, 7 1/8 OAL, USES CARRIER BEARING 52979, 1" THICK.
|
FC-170 |
$ 225.00 |
R/B
|
934934 |
CASE, DIFFERENTIAL, MODEL 27 FRONT AXLE, 8 BOLTS, 8 RIBS, CASTING #18602, FOR 3.73 TO 1 RATIO AND SMALLER, 6 3/8" 6 3/16" OAL, USES CARRIER BEARING 926799, 3/4" THICK.
|
LATE CJ-3/5/6 JEEPSTER COMMANDO J-SERIES |
$ 225.00 |
R/B
|
926797 |
CASE, DIFFERENTIAL, MODEL 27 FRONT AXLE, 8 BOLTS, 8 RIBS, CASTING #31408, FOR 3.92 TO 1 AND GREATER, 6 3/8" OD, 6 3/16" OAL, USES CARRIER BEARING 926799, 3/4" THICK.
|
LATE CJ-5/6 JEEPSTER COMMANDO J-SERIES |
$ 225.00 |
|
| |
| NOTE- Our rebuilt OEM differential cases listed above have all been degreased, bead blasted and thoroughly inspected for damage. The bearing sufaces have been polished. All of these parts were made in America with American cast iron by Americans. |
|
| |
 |
| A-793 |
$ 225.00 |
|
 |
| 802562 |
$ 225.00 |
|
|
| |
 |
| 934934 |
$ 225.00 |
|
| |
| |
|
OEM TIMKEN DIFFERENTIAL BEARINGS
|
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
52880 |
CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 25 AXLE, TIMKEN USA BRAND.
|
MB/GPW CJ-2A/3A/3B/5/6 M38/M38A1
FC-150 SW/SD/PU |
$ 46.50
|
| OEM |
52979 |
CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 44 AXLE, TIMKEN USA BRAND.
|
FC-170 |
$ 43.50
|
| OEM |
926799
|
CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 27 AXLE, TIMKEN USA BRAND.
|
LATE CJ-3B/5/6 JEEPSTER COMMANDO J-SERIES
|
$ 20.50
|
| OEM |
52881 |
CUP, DIFFERENTIAL BEARING, MODEL 25 AXLE, TIMKEN USA BRAND.
|
MB/GPW CJ-2A/3A/3B/5/6 M38/M38A1
FC-150 SW/SD/PU |
$ 52.50
|
| OEM |
52980 |
CUP, DIFFERENTIAL BEARING, MODEL 44 AXLE, TIMKEN USA BRAND.
|
FC-170 |
$ 19.50 |
| OEM |
926800 |
CUP, DIFFERENTIAL BEARING, MODEL 27 AXLE, TIMKEN USA BRAND.
|
LATE CJ-3B/5/6 JEEPSTER COMMANDO J-SERIES |
$ 45.50 |
|
| |
 |
TYPICAL TIMKEN BEARING CONE
|
|
 |

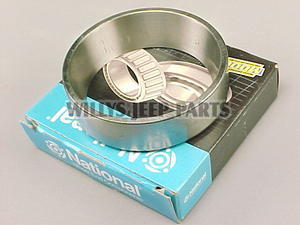

| TYPICAL TIMKEN BEARING CUP |
|
|
| |
| 20A-03B FRONT AXLE DIFFERENTIAL PARTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
OEM
|
A-798
636464 |
SHAFT, PINION MATE, 4 1/8" LONG
MODEL 23/25/27 AXLE.
|
ALL 4WD VEHICLES |
$ 22.50 |
| OEM |
636553 |
SHAFT, PINION MATE, 4 53/64" LONG,
MODEL 44 AXLE.
|
FC-170 |
$ 22.50 |
| OEM |
636360 |
PIN, SHAFT LOCK, MODEL 23/25/27/30/44 AXLE.
|
ALL 4WD VEHICLES |
$ 1.50 |
| OEM |
648061 |
SHIM SET, DIFFERENTIAL BEARING
ADJUST, MODEL 23/25/27/30/44 AXLE, SPICER USA BRAND.
|
ALL 4WD VEHICLES |
$ 26.50 |
|
| |
 |
| A-798/636464 |
$ 22.50 |
|
 |
| 636553 |
$ 22.50 |
|
|
| |
 |
| 636360 |
$ 1.50 |
|
 |
| 648061 |
$ 26.50 |
|
|
| |
| 20A-03C FRONT AXLE DIFFERENTIAL SIDE GEARS AND PARTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
926544 |
KIT, REPAIR, DIFFERENTIAL GEARS,
MODEL 25 AND 27 AXLES.
|
ALL 4WD VEHICLES |
$ 86.50
|
| NOS |
GPW-18389 NOS
|
GEAR KIT, AXLE, DIFFERENTIAL CASE GEARS, MODEL 25 AND 27 AXLES, FORD BRAND.
|
ALL 4WD VEHICLES |
$ 175.00 |
| OEM |
916361 |
KIT, REPAIR, DIFFERENTIAL GEARS,
MODEL 44 AXLE WITH 19 SPLINE AXLE SHAFTS.
|
FC-170
|
$ 148.50 |
|
| |
 |
| 926544 |
$ 86.50 |
|
|
|
| GPW-18389-NOS |
$ 175.00
|
|
|
| |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| T/O |
916361-SG
|
GEAR, DIFFERENTIAL SIDE,
16 TEETH, 19 SPLINES, MODEL 44 AXLE.
|
FC-170 |
$ 48.50 |
| T/O |
636552 647062
|
GEAR, DIFFERENTIAL PINION MATE,
10 TEETH, 3/4" HOLE, MODEL 44 AXLE.
|
ALL 4WD VEHICLES |
$ 22.50 |
| OEM |
A-795 636909
|
THRUST WASHER, SIDE GEAR, 2 3/8" O.D. 1 1/2" I.D. MODEL 25 AND 27 AXLE.
|
ALL 4WD VEHICLES |
$ 1.40
|
| OEM |
A-797 637235
|
THRUST WASHER, PINION MATE, 2 13/16" O.D. 5/8" I.D., MODEL 25 AND 27 AXLE.
|
ALL 4WD VEHICLES |
$ 1.40 |
| OEM |
636551 645789
|
THRUST WASHER, SIDE GEAR, 2 13/16" O.D. 1 1/8" I.D., MODEL 44 AXLE.
|
FC-170 |
$ 1.25
|
| OEM |
636554 645790 |
THRUST WASHER, PINION MATE, 1 5/8" O.D. 5/8" I.D., MODEL 44 AXLE.
|
FC-170 |
$ 1.75
|
|
| |
 |
| 916361-SG |
$ 48.50 |
|
 |
| 636552/647062 |
$ 22.50 |
|
|
| |
 |
| A-795/636909 |
$ 1.40 |
|
 |
| A-797/637235 |
$ 1.40 |
|
|
|
 |
| 636551/645789 |
$ 1.25
|
|
 |
| 636554/645790 |
$ 1.75 |
|
|
| |
