| 31-12C WINDSHIELD ASSEMBLY FOR CJ-3A/DJ-3A AND V-35/U |
| |
|
|
|
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
671031 |

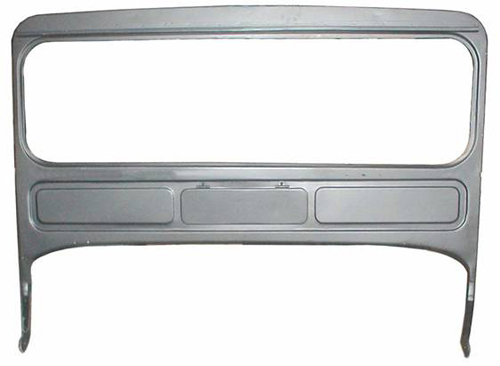

WINDSHIELD ASSEMBLY, INCLUDES VENTILATOR AND HANDLE.
|
CJ-3A/DJ-3A |
CALL |
| RPL |
671240 |

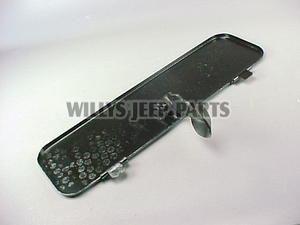

VENTILATOR ASSEMBLY, WINDSHIELD, INCLUDES THE RATCHET AND HANDLE.
|
CJ-3A/DJ-3A |
$ 98.50
|
| RPL |
671213 |
BRACKET, PIVOT, WINDSHIELD, LEFT.
|
CJ-3A/DJ-3A |
$ 13.50 |
| RPL |
671214 |
BRACKET, PIVOT, WINSHIELD, RIGHT.
|
CJ-3A/DJ-3A |
$ 13.50 |
| T/O |
671015 |
PLATE, TAPPING, WINDSHIELD PIVOT BRACKET, MOUNTS ON INSIDE OF COWL, 2 REQD.
|
CJ-3A/DJ-3A |
$ 32.50 |
| OEM |
53848-K |
MOUNTING KIT, WINDSHIELD PIVOT BRACKETS, WITH GRADE 8 HARDWARE
|
CJ-3A/DJ-3A |
$ 2.50 |
| RPL |
668921 |
BOLT, WINDSHIELD PIVOT, SPECIAL, 2 REQD.
|
CJ-3A/DJ-3A |
$ 8.50 EA.
|
| RPL |
A-3755 |
THUMBSCREW, WINDSHIELD PIVOT, 2 REQD.
|
CJ-3A/DJ-3A |
$ 15.50 EA.
|
| RPL |
A-2220 |
WASHER, SPRING, WINDSHIELD PIVOT, 2 REQD.
|
CJ-3A/DJ-3A |
$ 1.75 EA
|
| RPL |
663677 |
CLAMP, WINSHIELD ASSY. INCLUDES GRADE 8 BOLTS, 2 REQD., YELLOW ZINC PLATED, AVAILABLE IN CHROME.
|
CJ-3A/DJ-3A |
$ 44.50 EA.
|
| RPL |
A-3763 |
CATCH, WINDSHIELD CLAMP, 2 REQD., YELLOW ZINC PLATED, AVAILABLE IN CHROME.
|
CJ-3A/DJ-3A |
$ 18.50 EA.
|
| OEM |
670953 |
LOOP, FOOTMAN, TOP BOW SPACER SUPPORT AND HOLD DOWN STRAP, INCLUDES SCREWS.
|
CJ-3A/DJ-3A |
$ 3.75 |
| OEM |
668388 |
STRAP, HOLD DOWN, WINDSHIELD ASSY.
|
CJ-3A/DJ-3A |
$ 22.50 |
| OEM |
671316 |
WEATHERSTRIP, VENTILATOR LID.
|
CJ-3A/DJ-3A |
$ 7.50 |
| OEM |
670923 |
WEATHERSTRIP, WINDSHIELD GLASS.
|
CJ-3A/DJ-3A |
$ 46.50 |
| OEM |
671045 |
WEATHERSTRIP, WINDSHIELD TO COWL.
|
CJ-3A/DJ-3A |
$ 48.50 |
| OEM |
A-2489-K |
INSTALLATION KIT, FOR WEATHERSTRIP 671045 LISTED ABOVE.
|
CJ-3A/DJ-3A |
$ 6.50
|
|
| |
|
|
| |
671240 |
$ 98.50
|
|
|
671213 |
$ 13.50
|
|
|
| |
|
|
| |
671214 |
$ 13.50
|
|
|
671015 |
$ 32.50
|
|
|
| |
 |
| 53848-K |
$ 2.50 |
|
|
|
| 668921 |
$ 8.50
|
|
|
| |
|
|
| |
A-3755 |
$ 15.50
|
|
|
A-2220 |
$ 1.75 EA.
|
|
|
| |
|
|
| 663677 |
$ 44.50
|
|
|
|
| A-3763 |
$ 18.50 |
|
|
| |
|
|
| |
670953 |
$ 3.75
|
|
|
688388 |
$ 22.50
|
|
|
| |
|
|
| |
671316 |
$ 7.50
|
|
|
670923 |
$ 46.50
|
|
|
| |
|
|
| 671045 |
$ 48.50 |
|
 |
| A-2489-K |
$ 6.50
|
|
|
| |
| PARTS FOR THE VENTILATING ( SWING-OUT ) WINDSHIELD |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| NOS |
687627 NOS
|
ARM, WINDSHIELD ADJUSTING, ASSEMBLY, 2 REQD.
|
DJ-3A |
$ 48.50 |
| T/O |
663707 |
ARM, WINDSHIELD ADJUSTING, INNER,
2 REQD.
|
DJ-3A |
$ 22.50 |
| T/O |
663712 |
ARM, WINDSHIELD ADJUSTING, OUTER, 2 REQD.
|
DJ-3A |
$ 22.50 |
| T/O |
663705 |
SCREW, WING, WINDSHIELD ADJUSTING ARM, 2 REQD.
|
DJ-3A |
$ 14.50 |
| T/O |
663706 |
WASHER, SPRING, WINDSHIELD ADJUSTING ARM, 2 REQD.
|
DJ-3A |
$ 16.50 |
| RPL |
A-4547-K |
KIT, WINDSHIELD ADJUSTING ARM PIVOT SCREW, 2 REQD. INCLUDES SPECIAL SCREW, SPRING WASHER AND FLAT WASHER.
|
DJ-3A |
$ 1.95 EA.
|
| OEM |
690398 |
CUSHION, WINDSHIELD GLASS, 12.5 FEET LONG.
|
DJ-3A |
$ 22.50 |
| OEM |
A-2480/81 |
SCREW, ACORN NUT AND LOCK WASHER, SPECIAL. THESE ARE USED WHEN REPLACING THE CUSHION 690398 AND SEAL 692547, 16 REQD.
|
DJ-3A |
$ 1.95 EA.
|
| OEM |
692547 |
SEAL, INNER WINDSHIELD FRAME TO OUTER WINDSHIELD FRAME, 12.5 FEET LONG.
|
DJ-3A |
$ 172.50
|
|
| |
|
|
| |
667627-NOS |
$ 48.50
|
|
|
663707 |
$ 22.50
|
|
|
| |
|
|
| |
663721 |
$ 22.50
|
|
|
663705 |
$ 14.50
|
|
|
|
| |
|
|
| |
663706 |
$ 16.50
|
|
|
A-4547-K |
$ 1.95
|
|
|
|
| |
|
|
|
690398 |
$ 22.50
|
|
|
A-2480/81
|
$ 1.95 EA.
|
|
|
|
| |
|
|
|
692547
|
$ 172.50
|
|
| |
|
|
|
692547 INNER WINDSHIELD SEAL INSTALLED ON THE VENTILATING WINDSHIELD
|
|
| |
|
PLEASE REFER TO SUB-GROUP 15-20 FOR WINDSHIELD WIPERS
|
