15-02-B    12-VOLT ALTERNATORS AND PARTS


    15-02B-1    12-VOLT ALTERNATOR


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 937482-  79A



ALTERNATOR, 12-VOLT, INTERNAL
 REGULATOR, SINGLE WIRE, 79 AMP.

 ALL VEHICLES
 WITH 12-VOLT
 SYSTEM
$ 128.50
OEM 937482- 100A



ALTERNATOR, 12-VOLT, INTERNAL
 REGULATOR, SINGLE WIRE, 100 AMP.

NOTE-  REQUIRES 7/16" WIDE BELT #801699 INCLUDED WITH THIS ALTERNATOR.

 ALL VEHICLES
 WITH 12-VOLT
 SYSTEM
$ 204.50

* NO CORE REQUIRED *


937482-79A $ 128.50
937482-100A

$ 204.50




   15-02B-2  12-VOLT ALTERNATOR UPGRADE KIT

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 937482-K



12-VOLT ALTERNATOR UPGRADE KIT WITH AN OEM DELCO-REMY DELCOTRON SI INTERNAL REGULATOR, SINGLE WIRE, 79 AMP, 14 OUTPUT VOLT ALTERNATOR. INCLUDES EVERY PART FOR THE COMPLETE INSTALLATION.


NOTE-UPGRADE THIS KIT TO A 100 AMP ALTERNATOR FOR AN ADDITIONAL $75.00

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 294.50

          12-VOLT ALTERNATOR UPGRADE KIT


We have finally assembled a quality 12-volt alternator upgrade kit for all Willys 4-134 four cylinder engines. The kit includes every part required for the job and can be installed without any cutting, grinding, special tools, or permanent modifications to the engine and vehicle.

The alternator supplied is a custom built full sized 14 volt Delco-Remy DELCOTRON SI systems intergrated single wire alternator with a built-in regulator and 5/8" wide pulley. This alternator was OEM on later model Jeeps.

The most important compnent of our kit is our heavy duty alternator mounting bracket. It is installed on the existing holes on the front engine mounting plate, using a stock straight generator adjusting bracket, Additionally this system includes an OEM 5/8" wide fan belt as well as all mounting hardware with grade 8 yellow zinc plated bolts, nuts and washers.

In addition, all of the components in this kit are available for puchase separately.

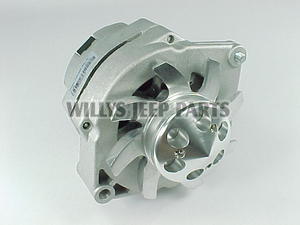

937482-79A DELCO-REMY DELCOTRON SI ALTERNATOR INTERNAL REGULATOR, SINGLE WIRE


 ALTERNATOR UPGRADE KIT, FRONT VIEW ALTERNATOR UPGRADE KIT, REAR VIEW


   15-02B-3  12-VOLT ALTERNATOR UPGRADE KIT PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 937146



SUPPORT, ALTERNATOR MOUNTING.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 82.50
OEM 641082-R



ADJUSTING BRACE, ALTERNATOR.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 28.50
OEM 937523



PULLEY, ALTERNATOR, DRIVE WITH 5/8" GROOVE, 3" DIAMETER.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 33.50
OEM 933664



PULLEY, ALTERNATOR, DRIVE WITH 7/16" GROOVE, 2 7/8" DIAMETER.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 22.50
OEM 647629



BELT, ALTERNATOR DRIVE, 5/8" WIDE.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 16.50
OEM 801699



BELT, ALTERNATOR DRIVE, 7/16" WIDE.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 16.50
OEM 17691



CONNECTOR, ALTERNATOR HARNESS.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 6.50
OEM 927482-K



HARDWARE KIT, ALTERNATOR MOUNTING.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 12.50
OEM D10AC-1



VOLTAGE REGULATOR, 12-VOLTS.

ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM $ 25.50
NOS 933664 NOS



PULLEY, ALTERNATOR DRIVE WITH 7/16" GROOVE, 2 5/8" DIAMETER.

LATE CJ-3B/5/6 WITH F-4-134 ENGINE
$ 48.50




937146
$ 82.50   641082-R $ 28.50
SUPPORT, ALTERNATOR MOUNTING. BOLTS TO THE RIGHT SIDE OF THE FRONT ENGINE MOUNTING PLATE USES THE EXISTING MOUNTING HOLES.

ADJUSTING BRACE, ALTERNATOR. BOLTS TO THE WATER PUMP AND THE ALTERNATOR.




937523
$ 33.50
933664 $ 22.50

PULLEY, ALTERNATOR DRIVE. THIS 5/8" GROOVE, 3" DIAMETER PULLEY IS USED ON THE 4-134 ENGINES WITH THE OPTIONAL ALTERNATOR INSTALLATION USING A 5/8" WIDE DRIVE BELT.


PULLEY, ALTERNATOR DRIVE. THIS 7/16" GROOVE, 2 7/8" DIAMETER PULLEY IS USED ON THE 4-134 ENGINES WITH THE OPTIONAL ALTERNATOR INSTALLATION USING A 7/16" WIDE DRIVE BELT.




647629
$ 16.50
641082-R $ 16.50

          BELT, ALTERNATOR DRIVE.          THIS OEM 5/8" WIDE BELT IS USED ON ALL 4-134 ENGINES.


            BELT, ALTERNATOR DRIVE.        THIS OEM 7/16" WIDE BELT IS USED ON ALL 4-134 ENGINES.




17691
$ 6.50
927482-K
$ 12.50

CONNECTOR, ALTERNATOR HARNESS. THIS TWO TERMINAL CONNECTOR IS USED FOR A PROFESSIONAL INSTALLATION WHEN THE ORIGINAL AMP GAUGE IS USED.


 HARDWARE KIT, ALTERNATOR  MOUNTING. THIS KIT IS USED TO INSTALL OUR ALTERNATOR SUPPORT TO THE FRONT ENGINE PLATE AND RELOCATE THE ALTERNATOR ADJUSTING BRACE TO THE WATER PUMP.




D10AC-1 $ 25.50
933664-NOS
$ 48.50

VOLTAGE REGULATOR, FOR USE WITH ALL DELCO-REMY ALTERNATORS WITH AN INTERNAL REGULATOR. 12-VOLTS, NON ADJUSTABLE. IT MIGHT BE A GOOD IDEA TO KEEP ONE AS A SPARE.

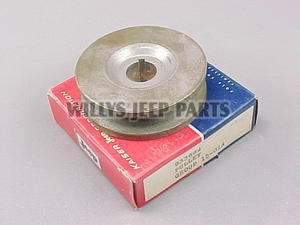

PULLEY, ALTERNATOR DRIVE WITH 7/16" GROOVE, 2 5/8" DIAMETER.





CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
