  12-05  ACCELERATOR AND LINKAGE
  12-05A  ACCELERATOR PEDALS AND PARTS


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-6851 640721



 TREADLE, ACCELERATOR.



 MB/GPW CJ-2A/3A  DJ-3A/M38 $ 26.50
NOS 646503  NOS



TREADLE, ACCELERATOR, DUFFY MFG. CO.

EARLY VJ/SW/SD/PU NLA
RPL 805546  TREADLE, ACCELERATOR.  CJ-3B/5/6/M38A1 $ 28.50
NOS 906653  NOS



 TREADLE, ACCELERATOR.

 VJ/SW/SD/PU NLA
RPL 650482



 HINGE ASSEMBLY, ACCELERATOR
 TREADLE, FOR A-6851/640721/805546.



 ALL 1/4 TONS $ 12.50
RPL A-3782



  SEAL, ACCELERATOR TREADLE
 ROD, LEATHER, OLIVE DRAB DYE.



 MB/GPW $ 16.50
RPL 646073



 SEAL, ACCELERATOR TREADLE
 ROD, RUBBER, BLACK.

 ALL 1/4 TONS $ 8.50
RPL A-1225 800783



REST, FOOT, ACCELERATOR, MOUNTS ON FLOOR ON RIGHT SIDE OF TREADLE.



 ALL 1/4 TONS $ 22.50




  A-6851/640721

$ 26.50

    646503-NOS

NLA





805546 $ 28.50

906653-NOS NLA




  650482

$ 12.50

    A-3782

$ 16.50





646073

$ 8.50

A-1225/800783 $ 22.50

  12-05B  L-4-134 ACELERATOR LINKAGE


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL
A-1910-R



KIT, ACCELERATOR CROSS SHAFT ASSEMBLY. INCLUDES THE CROSS SHAFT BRACKET, THE CROSS SHAFT AND LEVER.

MB/GPW CJ-2A/CJ-3A DJ-3A/M38 $68.50
NOS A-1273  NOS



KIT, ACCELERATOR ADJUSTING ROD, INCLUDES THE ROD, BLOCK AND SPRING RETRACTING CLIP.

 MB/GPW CJ-2A/CJ-3A   DJ-3A/M38
$ 32.50
OEM 644067



 SPRING, RETRACTING, ACCELERATOR, (ATTACHES TO CARBURETOR BASE CLIP AND LEVER SHAFT), 2 3/4" LONG.

 MB/GPW CJ-2A/CJ-3A   DJ-3A/M38
$ 7.50
RPL A-1173 640246



CLIP, THROTTLE ROD RETRACTING SPRING, (ATTACHES TO CARBURETOR BASE).



MB/GPW CJ-2A/CJ-3A DJ-3A/M38 $ 16.50
T/O  641125



SHAFT AND BRACKET ASSEMBLY, (MOUNTS ON INTAKE MANIFOLD #641084).

VJ/SW/SD DJ-3A
$ 68.50
T/O  642093



SHAFT AND LEVER ASSEMBLY, (MOUNTS ON REAR OF ENGINE BLOCK).

SW/SD/PU DJ-3A
$ 68.50


A-1910-R
$ 68.50
A-1273-NOS $ 32.50

644067 $ 7.50
A-1173 $ 16.50


641125 $ 68.50
642093 $ 68.50

  12-05C F-4-134 ACCELERATOR LINKAGE




TYPICAL F-4-134 ENGINE ACCELERATOR LINKAGE USED IN THE 1/4-TON VEHICLES.


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
T/O 808333



 LOWER BELLCRANK ASSEMBLY,  (ATTACHES TO SIDE VALVE COVER STUD).

ALL F-4-134 ENGINES
NLA
RPL 803358



SPRING, RETRACTING, ACCELERATOR, (ATTACHES TO LOWER BELLCRANK AND ENGINE BLOCK PLUG), 6 1/2" LONG.

ALL F-4-134 ENGINES ALL L-6-226 ENGINES
$ 3.50
RPL 805472



PLUG, SPECIAL ENGINE BLOCK, WITH DRILLED HEAD FOR ATTACHING THE ACCELERATOR RETRACTING SPRING.

ALL F-4-134 ENGINES $ 8.50
NOS
806348 NOS

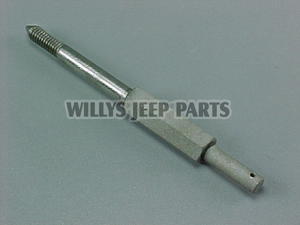

STUD, EXHAUST VALVE COVER, REAR, PIVOT FOR LOWER BELLCRANK, 6 3/8" LONG.

ALL F-4-134 ENGINES $ 48.50
OEM 51875



GASKET, COPPER,VALVE COVER STUD.

ALL F-4-134 ENGINES $ 1.00
T/O 806952



ROD, BELLCRANK LINK (SIDE OF ENGINE).

ALL F-4-134 ENGINES NLA
T/O 805479

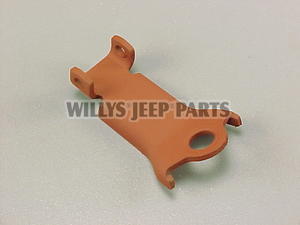

BRACKET, UPPER BELLCRANK (MOUNTS ON CYLINDER HEAD BOLT).

ALL F-4-134 ENGINES $ 22.50
T/O 805480



UPPER BELLCRANK ASSEMBLY, (ATTACHES TO UPPER BRACKET).

ALL F-4-134 ENGINES $ 22.50
T/O 805484



ROD, BELLCRANK TO CARBURETOR.

ALL F-4-134 ENGINES NLA


808333 NLA
803358 $ 3.50


805472 $ 8.50 EA.
806348-NOS $ 48.50


51875-NOS $ 1.00
805479 $ 22.50


805480 $ 22.50

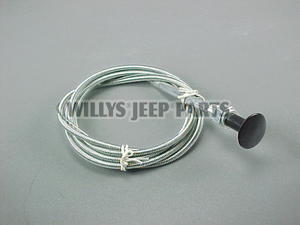

  12-05D HAND THROTTLE CABLES


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-5106



HAND THROTTLE CONTROL CABLE WITH BLACK PLASTIC O.D. GREEN KNOB, 36" LONG.



 MB/GPW M38/M38A1 M170/M422/M151
$ 18.50
RPL 640669



HAND THROTTLE CONTROL CABLE WITH PLASTIC BLACK KNOB, 36" LONG.



 ALL VEHICLES
$ 18.50
NOS 801683 806337 NOS



HAND THROTTLE CONTROL CABLE WITH METAL O.D. GREEN KNOB, 50" LONG.

 M38/M38A1 M170/M422/M151 $ 32.50
OEM 372438



 STOP, THROTTLE CABLE WIRE.

ALL VEHICLES
$ 3.50


A-5106 $ 18.50

640669 $ 18.50

801683/806337-NOS $ 32.50
372438 $ 3.50 EA.


  12-05E  CHOKE CONTROL CABLES


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-1301



CHOKE CONTROL CABLE WITH PLASTIC O.D. GREEN KNOB, 36" LONG.



MB/GPW  M38/M38A1/M170
$ 16.50
RPL 640765



CHOKE CONTROL CABLE WITH PLASTIC BLACK KNOB, 36" LONG.



ALL VEHICLES

$ 18.50

NOS 800401 806333 NOS



CHOKE CONTROL CABLE WITH PLAIN METAL KNOB, 50" LONG.

M38/M38A1/M170 $ 32.50
NOS 6184184 NOS



CHOKE CONTROL CABLE WITH PLASTIC O.D. GREEN KNOB, 36" LONG.

M151 $ 32.50
OEM 911410 915746



CHOKE CONTROL CABLE WITH PLASTIC BLACK KNOB, 60" LONG.

FC-150/170 $ 22.50
NOS 911410 915746  NOS



CHOKE CONTROL CABLE WITH BLACK PLASTIC KNOB, 54" LONG.

FC-150/170 $ 32.50
OEM 116587



CLAMP, CHOKE CABLE, MOUNTS ON CARBURETOR.

ALL VEHICLES
$ 8.50
OEM 345961



GROMMET, RUBBER, CHOKE AND THROTTLE CABLES THRU FIREWALL, FOR USE IN 7/8" HOLE.

ALL VEHICLES
$ 3.50


A-1301 $ 16.50
640765 $ 18.50


800401/806333-NOS $ 32.50
6184184-NOS $ 32.50

911410/915746 $ 22.50
911410/915746-NOS $ 32.50

116587 $ 8.50 EA.
345961
$ 3.50 EA.
