10-16A-1-A-5

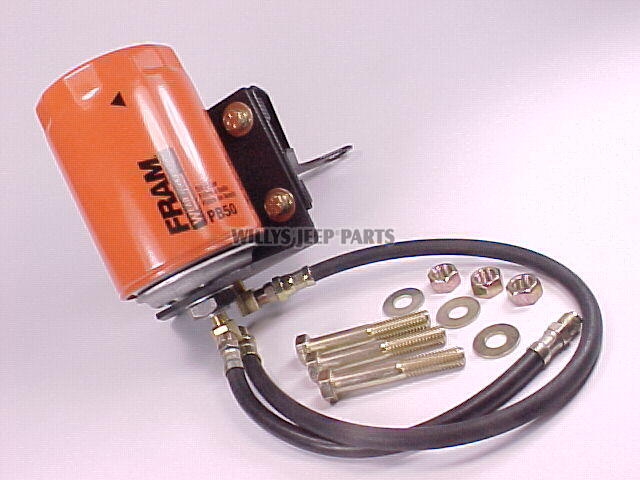

FRAM SPIN-ON OIL FILTER KIT FOR THE L_4_134 ENGINE



This complete engine oil filter assembly can be installed on all L-4-134 engines. This assembly includes a new Fram type 4" diameter oil filter canister, a 4" diameter drop-in oil filter element kit, two oil canister clamps with special bolts, the oil filter mounting bracket with clamp attaching hardware, three cylinder head bolts, three cylinder head nuts and washers for use with cylinder head studs, an oil inlet hose, an oil outlet hose, the two brass fittings on the side and bottom of the canister and the brass fitting on the side of the engine block.

This oil filter assembly can be installed on the MB/GPW/CJ-2A/CJ-3A/M38/DJ-3A and all VJ Jeepsters, Utility Wagons and Utility Trucks with flathead L-4-134 engine.

647342 ENGINE OIL FILTER PARTS
PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 925418

FILTER, OIL ASSEMBLY, SPIN-ON, THROW-AWAY TYPE, FRAM USA BRAND.

ALL L-4-134 ENGINES $ 16.50

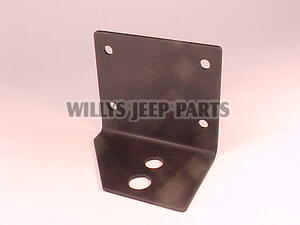

OEM

BRACKET SPIN-ON OIL FILTER MOUNTING, MOUNTS TO BRACKET ON SYLINDER HEAD, MADE IN THE USA BY WJP.

*NOTE-THIS BRACKET IS ONLY SOLD AS PART OF THE COMPLETE OIL FILTER KIT.

ALL L-4-134 ENGINES N/A

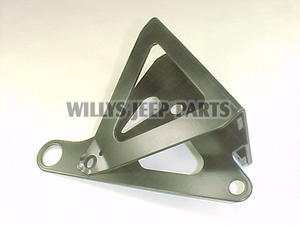

RPL A-1247 648861

BRACKET, ENGINE OIL FILTER MOUNTING, MOUNTS ON CYLINDER HEAD.

ALL L-4-134 ENGINES $ 36.50

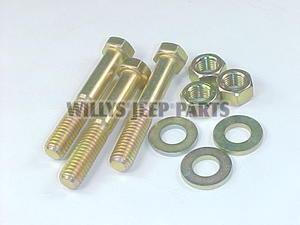

OEM 638635-K

MONTING KIT, BRACKET TO CYLINDER HEAD.

ALL L-4-134 ENGINES $ 10.50

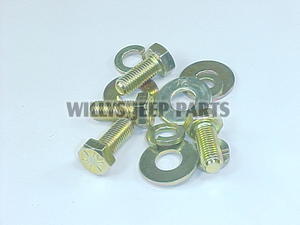

OEM 51396-K

MONTING KIT, BRACKET TO BRACKET

ALL L-4-134 ENGINES $ 4.50
OEM 929838

BASE, SPIN-ON OIL FILTER, CAST ALUMINUM, FRAM TYPE.

ALL L-4-134 ENGINES $ 10.50
OEM 219758

JAM NUT, SPECIAL, OIL FILTER, BASE TO OIL FILTER BRACKET, THIN HEX, BLACK OXIDE STEEL, INCLUDES STAINLESS STEEL LOCKWASHER.

ALL L-4-134 ENGINES $ 6.50
RPL A-1197-R

OIL HOSE, INLET, 22 1/2" LONG, WITH TWO MALE FLARED ENDS, SWIVEL AT BOTH ENDS, ATTACHES LEFT SIDE OF ENGINE BLOCK AND OFFSET HOLE ON OIL FILTER BASE.

ALL L-4-134 ENGINES $ 9.50
OEM A-1289

CLIP AND LOOM, OIL INLET LINE TO FRONT EDGE PLATE, INCLUDES THE PROTECTIVE CLOTH LOOM, 1/2" DIA., WITH 3/8" BOLT HOLE.

ALL L-4-134 ENGINES $ 2.50
RPL A-1198-R

OIL HOSE, OUTLET, 9 1/2" LONG, WITH TWO MALE FLARED ENDS, SWIVEL AT BOTH ENDS, ATTACHES TO CENTER FITTING ON OIL FILTER BASE AND ENGINE TIMING COVER.

ALL L-4-134 ENGINES $ 9.50
OEM 384569

ELBOW, 90, BRASS, OIL FILTER INLET, ONE AT LEFT SIDE OF ENGINE BLOCK IN FRONT OF FUEL PUMP, ONE AT OFF SET HOLE ON OIL FILTER BASE, 2 REQD.

ALL L-4-134 ENGINES $ 3.75 EA.
OEM 54006

ELBOW, 45, BRASS, OIL FILTER OUTLET, CENTER OF OIL FILTER BASE.

ALL L-4-134 ENGINES $ 3.75
