35-09  WINCHES
35-09A  WARN ELECTRIC WINCHES

In 1959 Warn introduced the first electric winch.

In 1962 on the Rubicon Trail in California, Thurston Warn debuted his 1946 Willys CJ-2A outfitted with his new Warn Series 6000 six volt Self-Recovery Winch.

Until this time the winch industry was dominated by the cumbersome and complicated power take-off winches manufactured  by King and Ramsey.

Within a short time every Willys dealership had the new Warn Electric Winch for Jeep 4WD Vehicles available as Willys approved specialized equipment.

Since then the word WINCH has become synonymous with the name WARN.

Our recommendations for winches for use on Willys vehicles are the Warn M6000 and the M8000 Self-Recovery Winches.

The M6000 is definitely the winch of choice for all of the  ¼ ton vehicles to include the MB/GPW/CJ-2A/3A/3B/5/6 and the M38 and M38A1.

The M6000 is available in 12 volts and in 24 volts for use in the M38 and M38A1.  The M6000 comes with 80’ of wire rope and a roller fairlead.

The M8000 is the winch of choice for the Utility Wagons, Trucks and Forward Control Trucks.

The M8000 is available in both 12 and 24 volts.  The M8000 is available with 80’ of wire rope and a Hawse type fairlead or with 100’ of wire rope and a roller fairlead.

Contrary to what the off-road mainstream mindset has convinced itself, a CJ-2A with a curb weight of 2137 pounds has no business sporting the Warn M15000 on it’s front bumper.  Weighing in at a hefty 136 pounds this winch could lift seven little CJ-2A’s off the ground.  If the CJ could actually be solidly anchored in a recovery attempt the front bumper and frame would most likely be torn off.

The heavyweight in the ¼ ton class is the M38A1 weighing in at a curb weight of only 3465 pounds.  The Warn M6000 will be more winch than will ever be required.

The curb weights for the Willys FC-170 is 3490 pounds,  Utility Wagon is 3345 pounds and the Utility Truck is 3176 pounds. The Warn M8000 will be more winch than will ever be required for these vehicles.

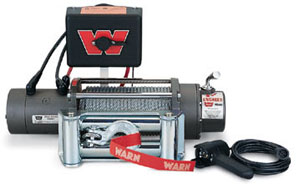

M6000 SELF-RECOVERY WINCH


M6000 SELF-RECOVERY WINCH
This is our medium-to-light duty winch. But it's no weakling. Designed to be compact, its 4.8 hp Series WoundTM motor can still pull 6,000 lbs., making it ideal for smaller vehicles with big ideas.

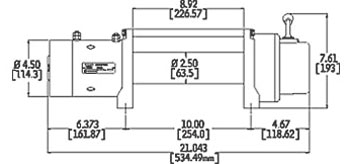

M6000 SPECS/PART NUMBERS
Part Numbers: PN 45880 CE (12V DC), PN 465052 CE (24V DC)
Part Numbers:: PN 37959 CE (12V, DC) Short Drum
Rated Line Pull: 6000 lbs. (2720 kgs) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m.) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope for PN 45880, 458802, 465052: 80', 5/16" diameter (24m, 8mm diam.)
Wire Rope for PN 37960: 50', 5/16" diameter (15m, 8mm diam.)
Fairlead for PN 45880, PN 458802, PN465052: Roller
Fairlead for PN 37960: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 48.5(14.8) 85 amps 1/6000(2722)
2000(910) 23.7(7.22) 175 amps 2/5460(2477)
4000(1810) 12.9(3.93) 360 amps 3/5000(2268)
6000(2720) 10.0(3.05) 465 amps 4/4670(2118)
24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 37.1(11.31) 46 amps 1/6000(2722)
2000(910) 20.3(6.19) 121 amps 2/5460(2477)
4000(1810) 14.4(4.39) 185 amps 3/5000(2268)
6000(2720) 11.2(3.41) 249 amps 4/4670(2118)

Above performance specs are based on first layer of drum


M6000 SELF-RECOVERY WINCH...........................................................................$ 784.95

NOTE- WE ARE A FULL LINE DEALER OF ALL WARN PRODUCTS. GO TO www.warn.com FOR
THEIR FULL PRODUCT LINE.

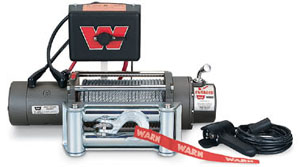

M8000 SELF-RECOVERY WINCH


M8000 SELF-RECOVERY WINCH
Compact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with either 80' of wire rope and hawse fairlead or 100' of wire rope and roller fairlead. Pulls a fast 8 ft. per minute at rated load.

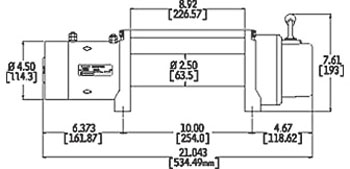

M8000 SPECS/PART NUMBERS
Part Number: PN 20910 CE (12V DC) 80' wire rope and hawse fairlead
Part Number: PN 26502 CE (12V DC) 100' wire rope and roller fairlead
Part Number: PN 265032 CE (24V DC) 100' wire rope, roller fairlead, safety hook and thimble
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.)
Fairlead for PN 20910: Hawse
Fairlead for PN 26502, 265022, 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 42(12.8) 80 amps 1/8000(3629)
2000(910) 16(4.88) 200 amps 2/7280(3302)
4000(1810) 11.9(3.63) 285 amps 3/6670(3026)
6000(2720) 9.79(2.98) 350 amps 4/6230(2826)
8000(3630) 8.01(2.44) 435 amps
24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 27.3(8.32) 46 amps 1/8000(3629)
2000(910) 17.1(5.21) 99 amps 2/7460(3384)
4000(1810) 12.6(3.84) 145 amps 3/3980(3166)
6000(2720) 10.3(3.14) 190 amps 4/6620(3003)
8000(3630) 8.8(2.68) 235 amps

Above performance specs are based on first layer of drum


M8000 SELF-RECOVERY WINCH WITH HAWSE FAIRLEAD...............................$ 734.95

M8000 SELF-RECOVERY WINCH WITH ROLLER FAIRLEAD.............................$ 794.95

NOTE- WE ARE A FULL LINE DEALER OF ALL WARN PRODUCTS. GO TO www.warn.com FOR
THEIR FULL PRODUCT LINE.
