10-06 ENGINE PISTONS, PINS, BUSHINGS AND SLEEVES

10-06A L-4-134/F-4-134 FOUR CYLINDER ENGINE PISTONS AND PINS (USA BRAND)

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	801476	PISTON & PIN SET, STD., 4 PCS.	ALL 4-134 ENGINES	$ 198.50
OEM	801538	PISTON & PIN SET, .020" O.S., 4 PCS.	ALL 4-134 ENGINES	$ 198.50
OEM	801539	PISTON & PIN SET, .030" O.S., 4 PCS.	ALL 4-134 ENGINES	$ 198.50
OEM	801540	PISTON & PIN SET, .040" O.S., 4 PCS.	ALL 4-134 ENGINES	$ 198.50
OEM	801542	PISTON & PIN SET, .060" O.S., 4 PCS.	ALL 4-134 ENGINES	$ 198.50
OEM	801544	PISTON & PIN SET, .080" O.S., 4 PCS.	ALL 4-134 ENGINES	$ 198.50

ONLY SOLD AS MATCHED SETS

NOTE:

WE ALWAYS HAVE A GOOD SELECTION OF USED TAKE OFF OEM L-4-134 AND F-4-134 PISTONS. CALL FOR PRICE AND AVAILABILITY.

10-06B V-6-225 SIX CYLINDER ENGINE PISTONS AND PINS (USA BRAND)

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	1399524	PISTON & PIN SET, STD., 6 PCS, 8.4:1 CR.	ALL V-6 225 ENGINES	$ 448.50
OEM	1396481	PISTON & PIN SET, .20" O.S., 6 PCS, 8.4:1 CR.	ALL V-6 225 ENGINES	$ 448.50
OEM	1396482	PISTON & PIN SET, .30" O.S., 6 PCS, 8.4:1 CR.	ALL V-6 225 ENGINES	$ 448.50
OEM	1396483	PISTON & PIN SET, .40" O.S., 6 PCS, 8.4:1 CR.	ALL V-6 225 ENGINES	$ 448.50
OEM	1396484	PISTON & PIN SET, .60" O.S., 6 PCS, 8.4:1 CR.	ALL V-6 225 ENGINES	$ 448.50

ONLY SOLD AS MATCHED SETS

10-06C L-6-226 SIX CYLINDER ENGINE PISTONS AND PINS (SEALED POWER BRAND)

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	732120	PISTON & PIN SET, STD., 6 PCS.	ALL L-6-226 ENGINES	$ 245.50
OEM	732122	PISTON & PIN SET, .020" O.S., 6 PCS.	ALL L-6-226 ENGINES	$ 245.50
OEM	732123	PISTON & PIN SET, .030" O.S., 6 PCS.	ALL L-6-226 ENGINES	$ 245.50
OEM	732124	PISTON & PIN SET, .040" O.S., 6 PCS.	ALL L-6-226 ENGINES	$ 245.50
OEM	732126	PISTON & PIN SET, .060" O.S., 6 PCS.	ALL L-6-226 ENGINES	$ 245.50

ONLY SOLD AS MATCHED SETS

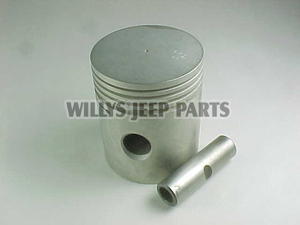

TYPICAL PISTON AND PIN

10-06D PISTON PINS AND BUSHINGS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
NOS	732597 NOS	PISTON PIN, STD, WILLYS BRAND.	ALL L-6-226 AND OHC-6-230 ENGINES	$ 18.50
OEM	701331-S	BUSHING, PISTON PIN, STD, SPLIT TYPE.	ALL L-6-226 AND OHC-6-230 ENGINES	$ 8.75 EA
OEM	701331-R	BUSHING, PISTON PIN, STD, FULL ROUND TYPE.	ALL L-6-226 AND OHC-6-230 ENGINES	$ 8.75 EA.
OEM	701331-S-020	BUSHING, PISTON PIN, .020 O.S., SPLIT TYPE.	ALL L-6-226 AND OHC-6-230 ENGINES	$ 8.75 EA.
OEM	701331-R-0055	BUSHING, PISTON PIN, .0055 O.S., FULL ROUND TYPE.	ALL L-6-226 AND OHC-6-230 ENGINES	$ 15.25 EA.
OEM	632157-K	KIT, LOCKSCREW, PISTON PIN. 3/8-24, GRADE 8, YELLOW ZINC PLATED.	ALL 4-134 ENGINES	$ 4.50

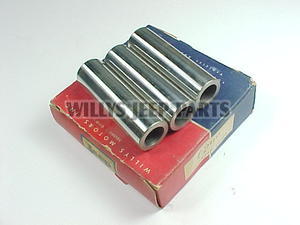

732597-NOS	$ 18.50 EA.

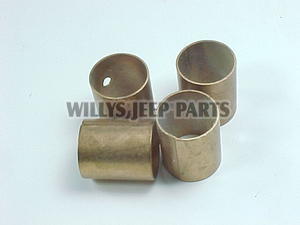

TYPICAL SPLIT TYPE PISTON PIN BUSHING


632157-K	$ 4.50

10-06E CYLINDER REPAIR SLEEVES

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	CRS-134	CYLINDER REPAIR SLEEVE, STANDARD BORE.	ALL L-4-134 ENGINES	$ 95.50
OEM	CRS-226	CYLINDER REPAIR SLEEVE, STANDARD BORE.	ALL L-6-226 ENGINES	$ 84.50
OEM	CRS-225	CYLINDER REPAIR SLEEVE, STANDARD BORE.	ALL V-6-225 ENGINES	$ 113.50
OEM	CRS-230	CYLINDER REPAIR SLEEVE, STANDARD BORE.	ALL OHC-6-230 ENGINES	$ 95.50

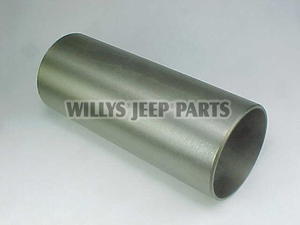

TYPICAL CYLINDER REPAIR SLEEVE

A LITTLE ABOUT CYLINDER REPAIR SLEEVES

Sleeving a cylinder with a high quality cylinder repair sleeve is an accepted method used to repair a worn or damaged cylinder bore in an engine block.

Engine blocks that have been bored beyond limits, that have cracked or deeply scored cylinder walls are all repairable with a cylinder repair sleeve. All of our cylinder repair sleeves return the cylinder to a standard size bore for use with standard size pistons and rings.

Our cylinder repair sleeves are sold as a single cylinder repair sleeve kit so that you have the option to repair a single cylinder or refurbish the entire block with a full set of four or six kits.

Installing these cylinder repair sleeves is generally performed by a machine shop.
