15-18  HEATER
15-18A  ACU-HEAT HEATER SYSTEMS

The heat you need in your Willys is here! Our Off-Road heaters offer a compact design with an efficient high-output fan. These units are excellent replacements when the factory heater just won't cut it. They can be installed under the dash in place of the factory unit or in the rear as an auxiliary heat source.

PART NO. DESCRIPTION APPLICATION PRICE
1101H  MOAB XTREME HEATER, 12V OR 24V
 4.8"H x 10.2"W x 10.8"D, 12,000 BTU/H
 ALL VEHICLES $ 387.50
1102H  HEATER, 12V OR 24V
 6.4"H x 9.4"W x 9.3"D, 28,000 BTU/H
 ALL VEHICLES $ 255.50
1105H  HEATER, 12V OR 24V
 6.4"H x 9.4"W x 8.6"D, 28,000 BTU/H
 ALL VEHICLES $ 355.50

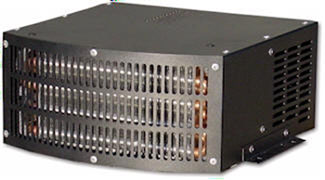

Heater Craft1101H  Moab Xtreme

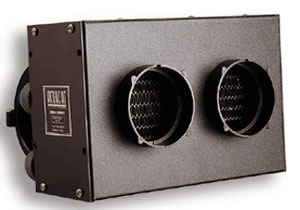

Heater Craft1102H  Heater

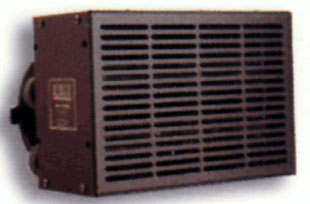

Heater Craft1105H  Heater


15-18B  FLEX-A-LITE MOJAVE HEATER

Mojave Heater

The MOJAVE heater is designed to simplify the task of providing heat and comfort to your ride. It eliminates the need to locate hard-to-find parts, or go through expensive rebuilds to get old units in working order. Its design offers several mounting options, and the optional Plenum includes adjustable louvers and a flange for defroster ducting. The Mojave gets it heat from the hot water in your vehicle's cooling system (just like an O.E. unit), but has the advantage of fitting into a wide variety of confined spaces. Its compact size, ease of installation and operation make it the ideal replacement unit.



PLENUM BOX

Provides a source for defroster hookup.
Snaps onto front of Mohave Heater.

8.66 inches Wide X 5.04 inches Tall
4.5 inches Deep


Unit measures only 10.12" x  9" x 5"
Moves 140 CFM
12,000 BTU output

Uses your engine's existing cooling system to
heat air, not an electric or gas heater.

Small enough to mount under dash or under seat
to provide heat to the rear of the vehicle.

Optional Plenum box has 2 directional vents, and
an outlet for 2 1/2" vent hose, for use
with defroster.

Features:

  12,000 BTU output    Easy installation
  Multiple 3-speed blower    Multiple mounting options
  Quiet operation    Hot coolant provides heat
  Light weight and compact    Optional Plenum (#650) provides
   source for defroster hookup
PART NO. DESCRIPTION APPLICATION PRICE

640

 MOJAVE HEATER, 12V  ALL VEHICLES $ 194.50

650

 HEATER PLENUM BOX FOR DEFROSTER FUNCTION  ALL VEHICLES $ 49.50


CAUTION!  Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
