| ALTERNATOR UPGRADE KIT |
|
ALTERNATOR UPGRADE KIT
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
937428-K |
ALTERNATOR UPGRADE KIT WITH AN OEM DELCO-REMY DELCOTRON SI INTERNAL REGULATOR, SINGLE WIRE, 79 AMP, 14 OUTPUT VOLT ALTERNATOR. INCLUDES EVERY PART FOR THE COMPLETE INSTALLATION
|
ALL VEHICLES WITH THE L-4-134 OR F-4-134 ENGINE WITH 12 VOLT SYSTEM |
$ 244.50 |
|
| |
ALTERNATOR UPGRADE KIT
|
| |
|
We have finally assembled a quality alternator upgrade kit for all Willys 4-134 four cylinder engines. The kit includes every part required for the job and can be installed without any cutting, grinding, special tools, or permanent modifications to the engine and vehicle.
The alternator supplied is a custom built full sized 14 volt Delco-Remy DELCOTRON SI systems intergrated single wire alternator with a built-in regulator and 5/8" wide pulley. this alternator was OEM on later model Jeeps.
The most important compnent of our kit is our heavy duty alternator mounting bracket. It is installed on the existing holes on the front engine mounting plate, using a stock straight generator adjusting bracket, Additionally this system includes an OEM 5/8" wide fan belt as well as all mounting hardware with grade 8 yellow zinc plated bolts, nuts and washers.
In addition, all of the components in this kit are available for puchase separately.
|
|
| |
 |
| 937428 DELCO-REMY DELCOTRON SI ALTERNATOR INTERNAL REGULATOR, SINGLE WIRE, 79 AMPS |
|
| |
|
|
|
937146 SUPPORT, ALTERNATOR MOUNTING.
BOLTS TO THE RIGHT SIDE OF THE FRONT ENGINE MOUNTING PLATE USES THE EXISTING MOUNTING HOLES.
|
|
| |
|
|
|
649927 ADJUSTING BRACE, ALTERNATOR.
BOLTS TO THE WATER PUMP AND THE ALTERNATOR.
|
|
| |
| |
|
|
|
937523 PULLY, ALTERNATOR DRIVE.
THIS 5/8" GROVE, 3" DIAMETER PULLY IS USED ON THE 4-134 ENGINES WITH THE OPTIONAL ALTERNATOR INSTALLATION USING A 5/8" WIDE DRIVE BELT
|
|
| |
 |
|
933664 PULLY, ALTERNATOR DRIVE.
THIS 7/16" GROOVE 2 7/8" DIAMETER PULLY IS USED ON THE 4-134 ENGINES WITH THE OPTIONAL ALTERNATOR INSTALLATION USING A 7/16" WIDE DRIVE BELT.
|
|
| |
 |
|
647629 BELT, ALTERNATOR DRIVE.
THIS OEM 5/8" WIDE BELT IS USED ON ALL 4-134 ENGINES.
|
|
| |
|
|
|
927482-K HARDWARE KIT, ALTERNATOR MOUNTING.
THIS KIT IS USED TO INSTALL OUR ALTERNATOR SUPPORT TO THE FRONT ENGINE PLATE AND RELOCATE THE ALTERNATOR ADJUSTING BRACE TO THE WATER PUMP.
|
|
| |
 |

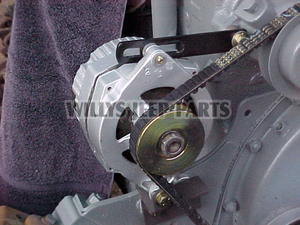

937428 ALTERNATOR UPGRADE KIT, FRONT VIEW
|
|
 |
937428 ALTERNATOR UPGRADE KIT, REAR VIEW
|
|
|
| |
| |
|
CAUTION! Maintenance and service on Willys electrical systems should only be accomplished by qualified mechanics using the appropriate manuals. Voltage levels, particularly within the ignition system can be hazardous to other electrical components.In accordance with accepted automotive industry standards we do not offer refunds or exchanges on any electrical parts other than core exchanges on rebuildable generators, starters and distributors.
|
|
| |
